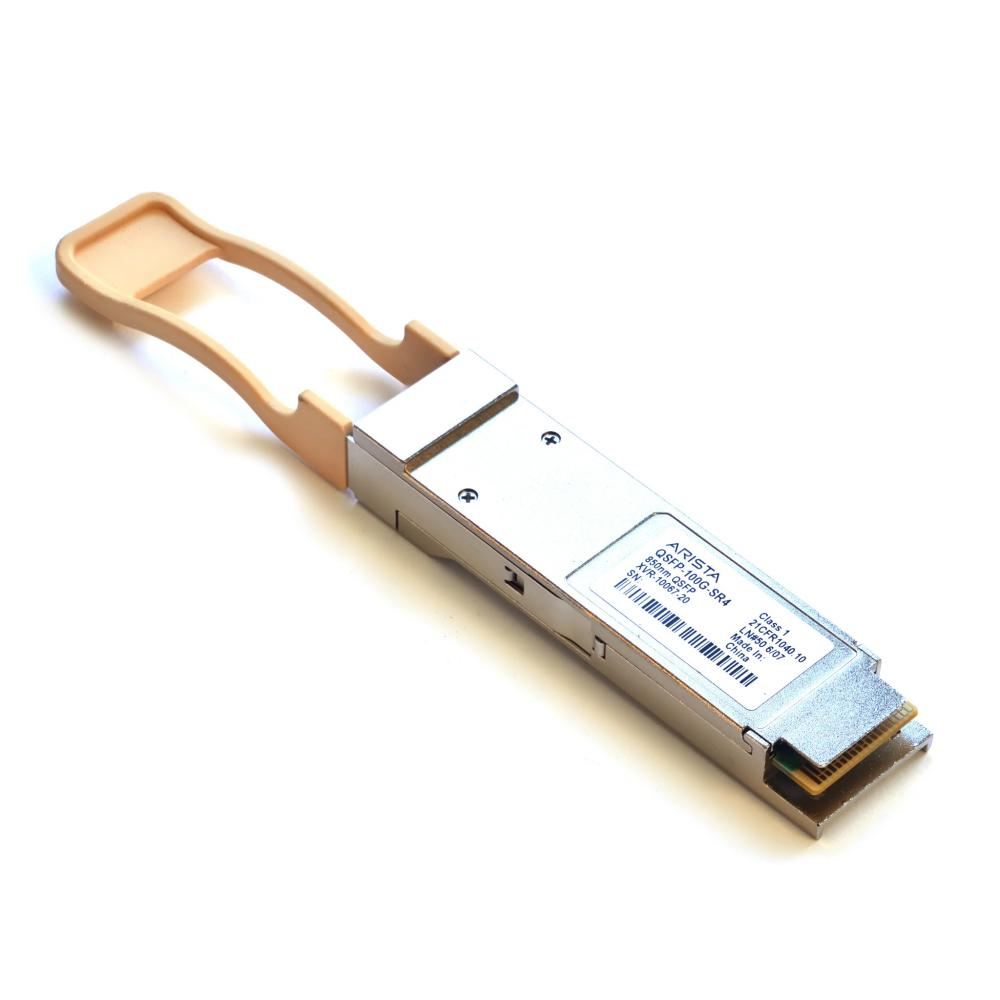

Arista QSFP-100G-SR4 (XVR-10067-20) 100G QSFP28 SR4 Parallel Multi-Mode Optical Transceiver Module (850nm, MTP-12)
¥1,600.00
促销价
¥1,600.00
常规价格
跳至产品信息
Arista QSFP-100G-SR4 (XVR-10067-20) 100G QSFP28 SR4 Parallel Multi-Mode Optical Transceiver Module (850nm, MTP-12)
¥1,600.00
促销价
¥1,600.00
常规价格
Basic Parameter Table
| Item | Details |
|---|---|
| Brand | Arista |
| Main PN | XVR-10067-20, Model QSFP-100G-SR4 |
| Form Factor | QSFP28 |
| Rate | 100Gbps IEEE 100GBASE-SR4 parallel multi-mode Ethernet |
| Wavelength | 850nm VCSEL 4-lane parallel laser array |
| Fiber Type | OM3 / OM4 Multi-mode fiber ribbon MMF |
| Max Distance | 70m OM3, 100m OM4 MMF |
| Interface | MTP/MPO-12 ribbon fiber port (beige pull tab) |
| Feature | DDM digital diagnostic monitoring, hot-swappable 4-channel parallel |
| Condition | Factory New Sealed |
| Stock Status | In Stock |
| Delivery Cycle | Within 2 Business Days |
| Warranty Period | 3 Years |
| Unit Price | $225.00 |
Core Product Features
- Arista original 100GBASE-SR4 QSFP28 multi-mode optical module, native plug-and-play compatible with all Arista 100G leaf-spine data center switches without firmware compatibility alarms.
- 850nm short-wave VCSEL parallel laser architecture, 4×25G independent channels aggregated to 100G bandwidth, fully compliant with 100GBASE-SR4 industry standard.
- MTP/MPO-12 multi-fiber ribbon connector, optimized for high-density leaf-spine rack trunk cabling, greatly reduces cable clutter inside equipment cabinets.
- Clear distance limits for different fiber grades: max 70m over OM3 multi-mode ribbon fiber, 100m over premium OM4 MMF.
- Complete DDM real-time optical monitoring: remotely read each lane transmit/receive optical power, module internal temperature and supply voltage for unified data center O&M management.
- Standard compact hot-swappable QSFP28 packaging, supports online plug/unplug without powering off the switch.
- Cost-effective mainstream short-reach 100G uplink solution for cloud data center leaf-spine rack aggregation, server cabinet high-speed interconnection.
Application Scenarios
- Cloud leaf-spine data center rack-to-rack short-distance 100G trunk interconnection (MTP multi-mode ribbon wiring)
- High-density server cabinet 100G aggregation uplink
- HPC high-performance computing cluster internal parallel fiber interconnection
- New generation cloud data center construction with OM3/OM4 multi-mode trunk infrastructure
