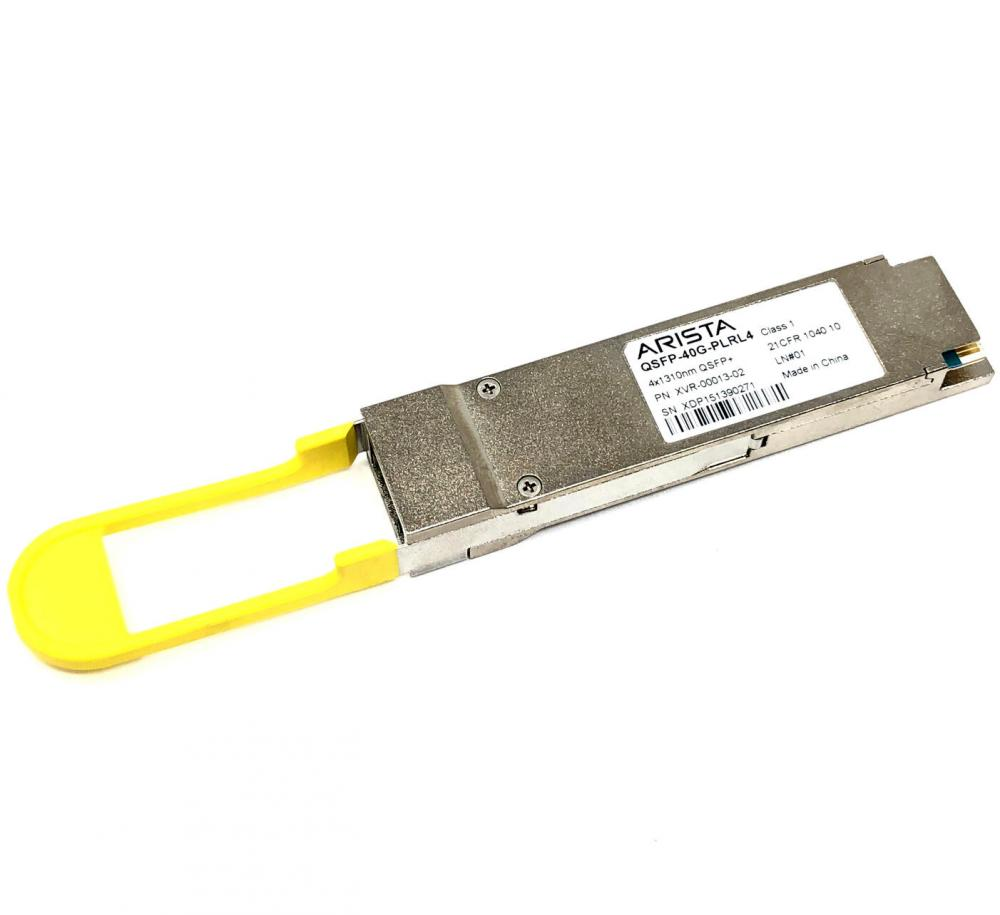

Arista QSFP-40G-PLRL4 (XVR-00013-02) 40G QSFP+ PLRL4 Parallel Single-Mode Optical Transceiver Module (1310nm, MTP/MPO-12, 1km DOM)

Arista QSFP-40G-PLRL4 (XVR-00013-02) 40G QSFP+ PLRL4 Parallel Single-Mode Optical Transceiver Module (1310nm, MTP/MPO-12, 1km DOM)

¥3,436.00
¥3,436.00
跳至产品信息
Arista QSFP-40G-PLRL4 (XVR-00013-02) 40G QSFP+ PLRL4 Parallel Single-Mode Optical Transceiver Module (1310nm, MTP/MPO-12, 1km DOM)
  • Arista QSFP-40G-PLRL4 (XVR-00013-02) 40G QSFP+ PLRL4 Parallel Single-Mode Optical Transceiver Module (1310nm, MTP/MPO-12, 1km DOM)
  • Arista QSFP-40G-PLRL4 (XVR-00013-02) 40G QSFP+ PLRL4 Parallel Single-Mode Optical Transceiver Module (1310nm, MTP/MPO-12, 1km DOM)
Arista QSFP-40G-PLRL4 (XVR-00013-02) 40G QSFP+ PLRL4 Parallel Single-Mode Optical Transceiver Module (1310nm, MTP/MPO-12, 1km DOM)

Arista QSFP-40G-PLRL4 (XVR-00013-02) 40G QSFP+ PLRL4 Parallel Single-Mode Optical Transceiver Module (1310nm, MTP/MPO-12, 1km DOM)

¥3,436.00
¥3,436.00

Basic Parameter Table


Item Details
Brand Arista
Main PN XVR-00013-02, Model QSFP-40G-PLRL4
Form Factor QSFP+
Rate 40Gbps 4×10G parallel single-mode Ethernet
Wavelength 1310nm parallel DFB laser array
Fiber Type OS2 Single-mode fiber SMF (parallel 12-core MTP trunk)
Max Distance 1km transmission over OS2 single-mode trunk fiber
Interface MTP/MPO-12 ribbon fiber connector (yellow pull tab)
Feature DOM digital optical monitoring, hot-swappable 4-lane parallel
Condition Factory New Sealed
Stock Status In Stock
Delivery Cycle Within 2 Business Days
Warranty Period 3 Years
Unit Price $480.00

Core Product Features

  1.  Arista original 40G PLRL4 parallel single-mode QSFP+ module, native plug-and-play compatible with all Arista 40G leaf-spine data center switches without firmware recognition alarms.
  2. Four-lane parallel 1310nm DFB laser architecture, 4 independent 10G channels multiplexed over one MTP-12 single-mode ribbon trunk to deliver total 40G bandwidth.
  3. MTP/MPO-12 multi-fiber ribbon port, optimized for high-density data center trunk cabling, greatly reduces cable bulk inside equipment racks.
  4. Stable 1km short single-mode reach, designed for intra-data center cross-row / cross-pod backbone interconnection.
  5. Complete DOM real-time optical monitoring: remotely query each lane TX/RX optical power, module temperature and supply voltage for centralized data center O&M management.
  6. Standard hot-swappable QSFP+ packaging, supports online plug/unplug without powering off the switch.
  7. High-density short-reach 40G single-mode trunk uplink solution for large leaf-spine data centers deployed with MTP single-mode ribbon fiber systems.

Application Scenarios

  • Large leaf-spine data center pod-to-pod 1km 40G trunk interconnection (MTP single-mode ribbon wiring)
  • High-density data center cross-row aggregation backbone links
  • Cloud computing facility intra-building short-distance 40G single-mode trunk interconnection
  • Data center reconstruction upgrading existing MTP single-mode trunk infrastructure to 40G
