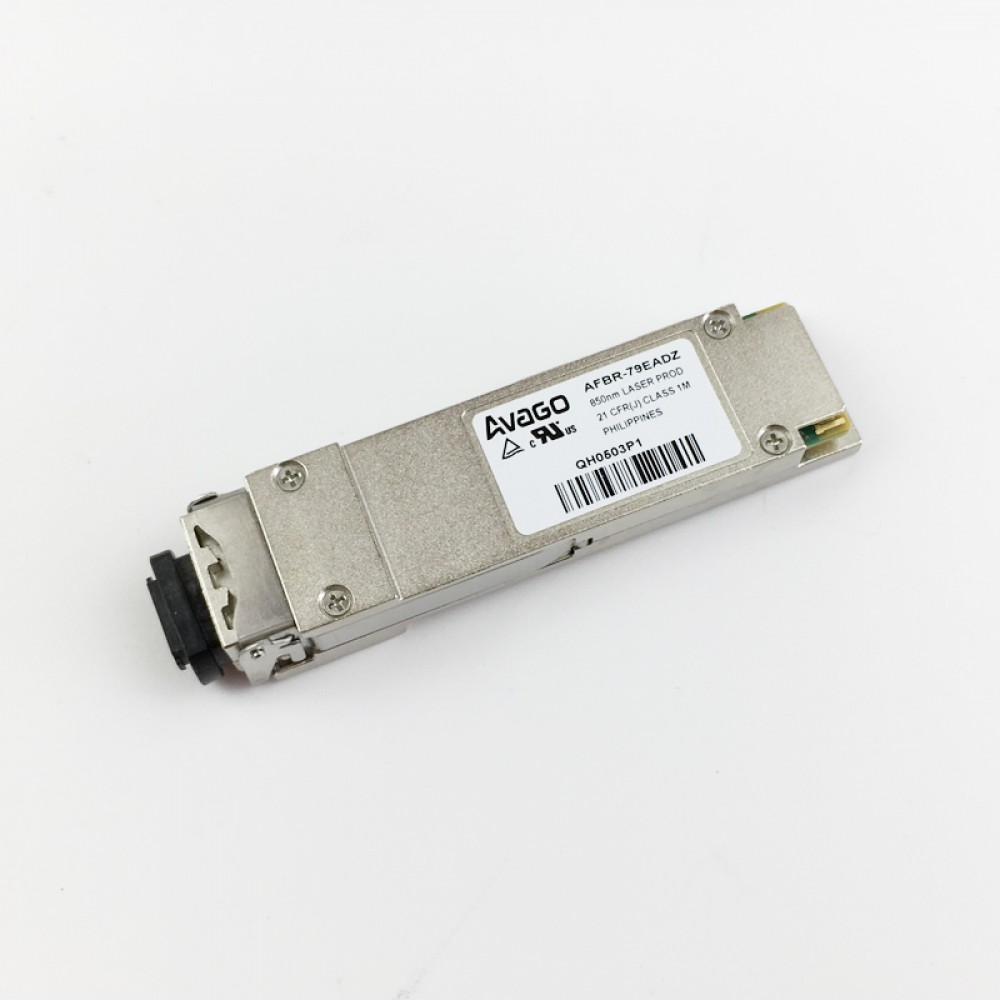

Avago AFBR-79EADZ 40G QSFP+ SR4 Multi-Mode Optical Transceiver Module (850nm, MTP/MPO-12, DDM)
¥1,672.00
促销价
¥1,672.00
常规价格
跳至产品信息
Avago AFBR-79EADZ 40G QSFP+ SR4 Multi-Mode Optical Transceiver Module (850nm, MTP/MPO-12, DDM)
¥1,672.00
促销价
¥1,672.00
常规价格
Basic Parameter Table
| Item | Details |
|---|---|
| Brand | Avago (Broadcom) |
| Part Number | AFBR-79EADZ |
| Form Factor | QSFP+ |
| Rate | 40Gbps 40GBASE-SR4 parallel multi-mode Ethernet |
| Wavelength | 850nm VCSEL 4-lane parallel laser array |
| Fiber Type | OM3 / OM4 Multi-mode ribbon fiber MMF |
| Max Transmission Distance | 150m over OM3 MMF; 150m over OM4 MMF |
| Interface | MTP/MPO-12 multi-fiber ribbon port |
| Feature | DDM digital diagnostic monitoring, hot-swappable 4-channel parallel design |
| Condition | Factory New Sealed |
| Stock Status | In Stock |
| Delivery Cycle | Shipment within 2 Business Days |
| Warranty Period | 3 Years Global Warranty |
| Unit Price | $235.00 |
Core Product Features
- Original Avago (Broadcom) industrial-grade 40G SR4 parallel multi-mode QSFP+ optical module, universal compatibility with all mainstream brand 40G leaf-spine switches (Arista, Cisco, H3C, Dell etc.).
- 4×10G parallel 850nm VCSEL laser architecture, standard SR4 specification supporting up to 150m transmission on OM3/OM4 multi-mode ribbon fiber.
- MTP/MPO-12 ribbon fiber interface, designed for high-density leaf-spine rack trunk cabling, greatly simplifies cabinet cable management.
- Built-in full DDM real-time monitoring function: remote readout of each lane transmit/receive optical power, module internal temperature and supply voltage for unified data center O&M.
- Standard hot-swappable QSFP+ form factor, supports online insertion and removal without shutting down the switch host.
- Original industrial-grade chip, stable performance, wide temperature working range, widely adopted in cloud computing, HPC and medium/large data center short-distance trunk interconnection.
Application Scenarios
- Medium & large leaf-spine cloud data center rack-to-rack 40G short-distance interconnection (MTP multi-mode ribbon cabling)
- High-density server cabinet 40G aggregation uplink
- HPC high-performance computing cluster parallel fiber interconnection
- Newly built data center with standardized OM3/OM4 MTP trunk fiber infrastructure
