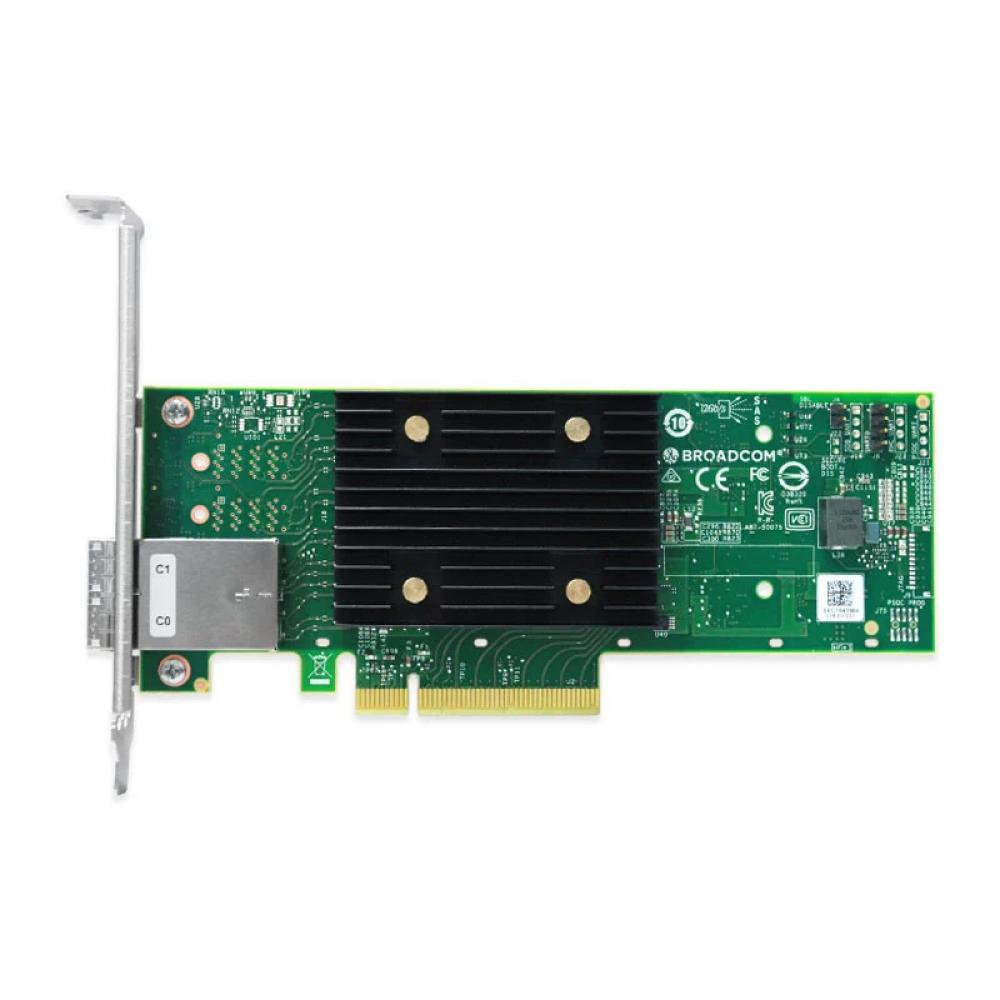

Broadcom 9500-8e 05-50075-01 PCIe4.0 x8 8 External Port Tri-Mode Storage Adapter
¥3,940.00
促销价
¥3,940.00
常规价格
Basic Parameter Table
| Item | Details |
|---|---|
| Brand | Broadcom |
| Model | 9500‑8e |
| PN | 05-50075-01 |
| Bus Interface | PCI‑E 4.0 x8 |
| Port Layout | 8 external ports, zero internal ports |
| Connector | Single external SFF‑8644 |
| Transmission Standard | Tri-mode: SAS 4.0 24Gb/s / SATA / NVMe |
| Cache Feature | Onboard enterprise cache, compatible with matching CacheVault flash backup module |
| Firmware Mode | Native MegaRAID IR hardware RAID; cross-flashable to pure IT pass-through HBA for ZFS/unRAID/TrueNAS |
| Cooling | Compact black horizontal passive fin heatsink, fanless silent design |
| Condition | Factory New Sealed |
| Stock Status | In Stock |
| Lead Time | Deliver within 2 business days |
| Warranty | 3-Year Global Warranty |
| Unit Price | $550.00 |
Core Product Features
- Cost-effective dedicated external-only tri-mode storage adapter of Broadcom PCIe4.0 generation, exclusively designed for connecting external SAS4/NVMe JBOD expansion enclosures, supports three media types: SAS4, SATA, NVMe U.2.
- One SFF-8644 external port supports up to 8 external storage drives via external disk cabinets; PCIe4.0 x8 high-speed bus meets high IO throughput demand of external all-flash JBOD arrays.
- Dual available firmware working modes:
- IR RAID Mode: Complete enterprise hardware RAID 0/1/5/6/10/50/60 with cache write acceleration, hardware-level disk fault tolerance for external redundant database storage.
- IT Pass-through Mode: Can reflash pure IT firmware, OS fully controls each disk independently, suitable for external all-NVMe/SAS4 ZFS mass storage clusters.
- Compact slim black passive heatsink saves chassis internal space, stable 24/7 silent rack operation; full-height & low-profile mounting brackets included.
- All external SAS/SATA/NVMe drives support hot-swap under both RAID and IT firmware modes, all external storage devices fully exposed to host OS.
- Entry-level dedicated external tri-mode RAID/HBA dual-purpose card, low cost for single external JBOD expansion scenarios, widely used for medium-capacity external all-flash enterprise storage and external expansion NAS after IT flashing.
Application Scenarios
- IR RAID deployment: Enterprise servers equipped only with single external SAS4/NVMe JBOD enclosures, external redundant backup & database storage arrays.
- IT flashed deployment: External expansion ZFS TrueNAS / unRAID media storage, virtualization external heavy IO all-flash storage backend, medium-capacity external archive storage.
- Expandable option: Optional CacheVault daughter module can be added for power-off cache data protection for mission-critical financial storage.
- Not applicable: Internal drive chassis deployment (no internal connectors
