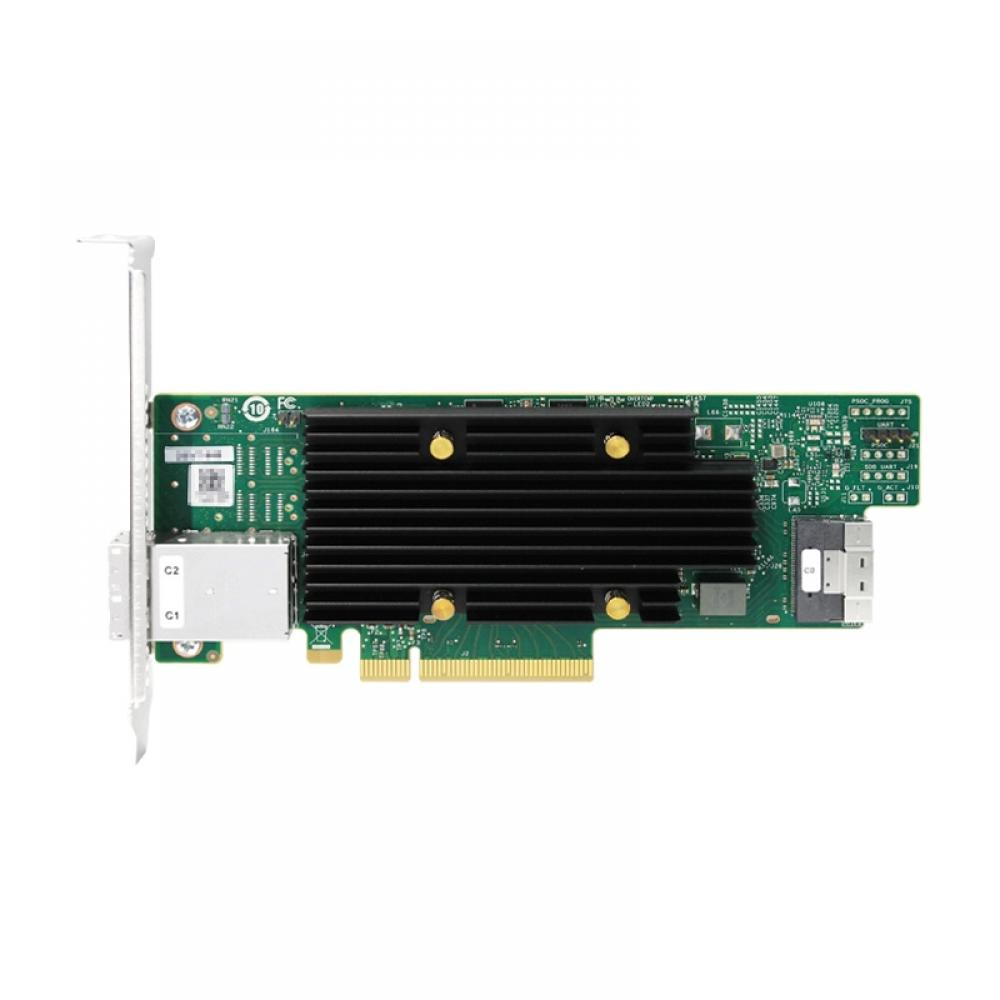

Broadcom 9600-8i8e 05-50145-00 PCIe4.0 x8 8i+8e Hybrid Tri-Mode Enhanced HBA
¥11,500.00
促销价
¥11,500.00
常规价格
Basic Parameter Table
| Item | Details |
|---|---|
| Brand | Broadcom |
| Model | 9600‑8i8e |
| PN | 05-50145-00 |
| Bus Interface | PCI‑E 4.0 x8 |
| Port Layout | 8 internal + 8 external ports, total 16 ports |
| Connectors | 1 × internal SFF‑8643; 1 × external SFF‑8644 |
| Transmission Standard | Tri-mode: SAS4 24Gb/s / SATA / NVMe U.2 |
| Core Positioning | Enhanced pure HBA (pass-through oriented), limited RAID function |
| Firmware Mode | Default IT pass-through mode; optional basic IR RAID mode |
| Cooling | Large black horizontal passive fin heatsink, fanless silent design |
| Condition | Factory New Sealed |
| Stock Status | In Stock |
| Lead Time | Deliver within 2 business days |
| Warranty | 3-Year Global Warranty |
| Unit Price | $1600.00 |
Core Product Features
- Mid-range hybrid internal+external enhanced tri-mode HBA card of Broadcom PCIe4.0 generation, optimized for pure pass-through storage scenarios (ZFS/TrueNAS/unRAID), only supports basic entry-level RAID functions, not high-end enterprise MegaRAID.
- One SFF-8643 internal connector supports up to 8 internal SAS4/SATA/NVMe drives; one SFF-8644 external port connects external JBOD enclosures for another 8 drives, maximum 16 storage devices total. PCIe4.0 x8 bus matches high throughput demand of mixed internal-external all-flash storage.
- Dual working firmware modes:
- IT Pass-through Mode (factory default): Full disk pass-through, OS directly controls each storage device independently, no RAID cache interception, the optimal choice for ZFS RAID-Z NAS clusters.
- Limited IR RAID Mode: Only supports basic RAID0/1/10, lacks advanced RAID5/6/50/60 and large cache acceleration, not recommended for mission-critical database redundant storage.
- Oversized black horizontal passive heatsink ensures stable 24/7 long-term silent rack operation; full-height & low-profile mounting brackets included.
- Internal and external SAS/SATA/NVMe SSDs all support hot-swap under IT and limited RAID modes, all drives fully exposed to host OS.
- Cost-effective hybrid tri-mode HBA, main targeting NAS, virtualization storage backend, mass media archive; not suitable for financial/database production RAID clusters requiring advanced cache protection.
Application Scenarios
- IT Default Mode Deployment: Mixed internal-external ZFS TrueNAS / unRAID all-flash media storage clusters, virtualization heavy IO mass storage backend, enterprise low-risk archive storage.
- Limited IR RAID Deployment: Small office non-critical basic mirror backup storage with mixed internal and external drives.
- Not applicable: Mission-critical database/financial core storage requiring advanced RAID5/6 and CacheVault power-off cache protection.
