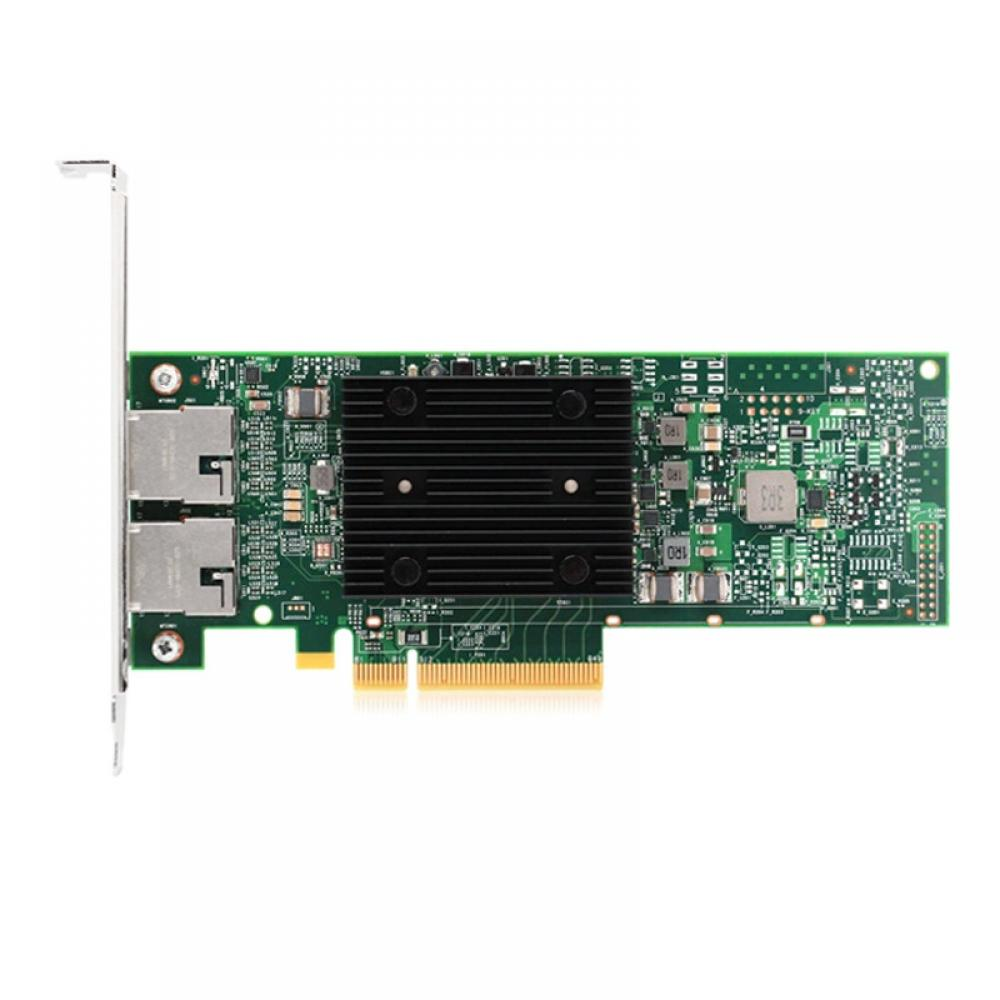

Broadcom BCM957416A4160C P210TP Dual-Port 10GBASE-T PCIe3.0 x8 万兆电口网卡

Basic Parameter Table

Core Product Features

1. Broadcom enterprise dual-port 10G copper network adapter, based on BCM57416 controller chip, adopts RJ45 electrical port design, compatible with ordinary CAT6A/CAT7 copper network cables without optical modules.
2. Dual independent 10G RJ45 ports, support adaptive rate 10G/1G/100M; PCIe3.0 x8 full-duplex high-speed bus to eliminate network bottlenecks for storage servers, virtualization hosts.
3. Rich enterprise offload engine: TCP/UDP checksum offload, TSO/LSO large segment offload, RSS multi-queue receive scaling, VLAN tagging, SR-IOV virtualization partitioning, suitable for VMware, Linux, Windows server virtualization environments.
4. Large-area black passive heatsink, low power consumption, 24/7 stable silent operation in rack servers; full-height & low-profile brackets included, compatible with standard and slim chassis.
5. IEEE standard compliant, support link aggregation (LACP), jumbo frame up to 9000 bytes, ideal for storage network, database server, virtual host uplink.
6. Copper 10G card advantages: low deployment cost, reuse existing copper wiring, no transceiver module maintenance, widely used in enterprise internal storage LAN.

Application Scenarios

1. Server storage networking: NAS/ZFS storage host uplink, database server internal service network, virtualization host dual-link redundant uplink.
2. Enterprise data center internal access rack server, small and medium enterprise high-performance business server network acceleration.
3. Not applicable: long-distance inter-room transmission (copper cable transmission distance limited to max 100m).
