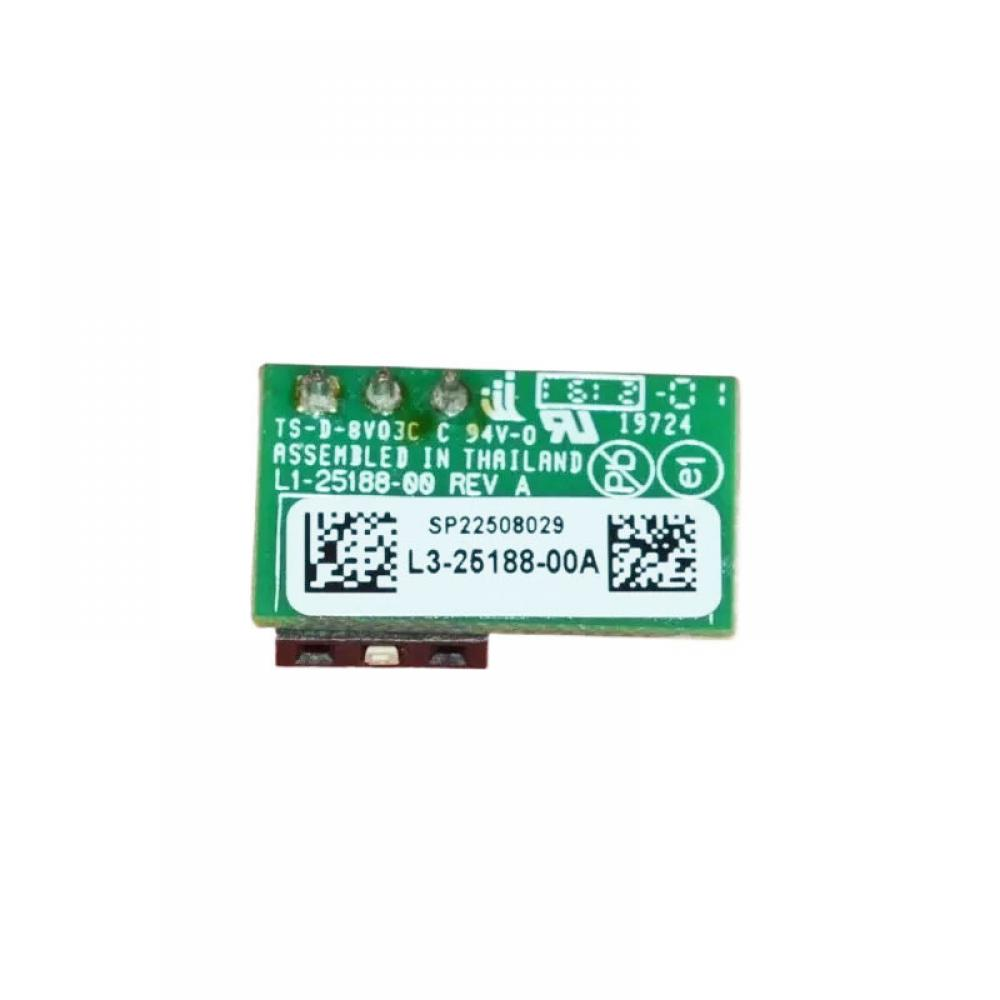

Broadcom L3-25188-00A SAS2208 RAID5/6 CacheCade Hardware License Key
¥88.00
促销价
¥88.00
常规价格
跳至产品信息
Broadcom L3-25188-00A SAS2208 RAID5/6 CacheCade Hardware License Key
¥88.00
促销价
¥88.00
常规价格
Basic Parameter Table
| Item | Details |
|---|---|
| Brand | Broadcom / LSI |
| PN | L3-25188-00A |
| Applicable RAID Chip | SAS2208 |
| Matching RAID Cards | LSI 9267-8i / 9272-8i series controllers |
| Core Function | Mini hardware physical key to unlock RAID5/RAID6 & CacheCade SSD cache functions |
| Form Factor | Tiny plug-in daughter PCB board |
| Condition | Factory New Sealed |
| Stock Status | In Stock |
| Lead Time | Deliver within 2 business days |
| Warranty | 3-Year Global Warranty |
| Unit Price | $15.00 |
Core Product Features
- Original mini hardware authorization key exclusive for SAS2208 chip-based 9267-8i / 9272-8i entry RAID cards. Low-end RAID cards ship without this key and lock RAID5/6 and CacheCade features by default.
- Working principle: Insert this small PCB onto the dedicated pin header of the RAID card; built-in storage chip carries permanent license. RAID firmware automatically unlocks advanced functions after hardware detection.
- Two major unlocked functions:
- RAID5 / RAID6 / RAID50 / RAID60 parity redundant array support (without key only RAID0/1/10 available);
- CacheCade SSD read cache acceleration to boost mechanical hard disk array IO performance.
- Ultra-small PCB plug-in design, no extra chassis space occupied, simple installation without wiring.
- Strict compatibility limit: Only works with SAS2208 generation 9267-8i / 9272-8i; incompatible with 9260/9280, 9361, 95xx, 96xx RAID series.
- Ultra-low-cost mandatory upgrade accessory for file storage, backup servers using 9267/9272 RAID cards that need redundant RAID levels or SSD cache acceleration.
Application Scenarios
- Small office storage servers with LSI 9267-8i / 9272-8i requiring RAID5/6 data redundancy and SSD cache acceleration.
- Not applicable: RAID controllers outside SAS2208 9267/9272 series, pure IT HBA pass-through cards.
