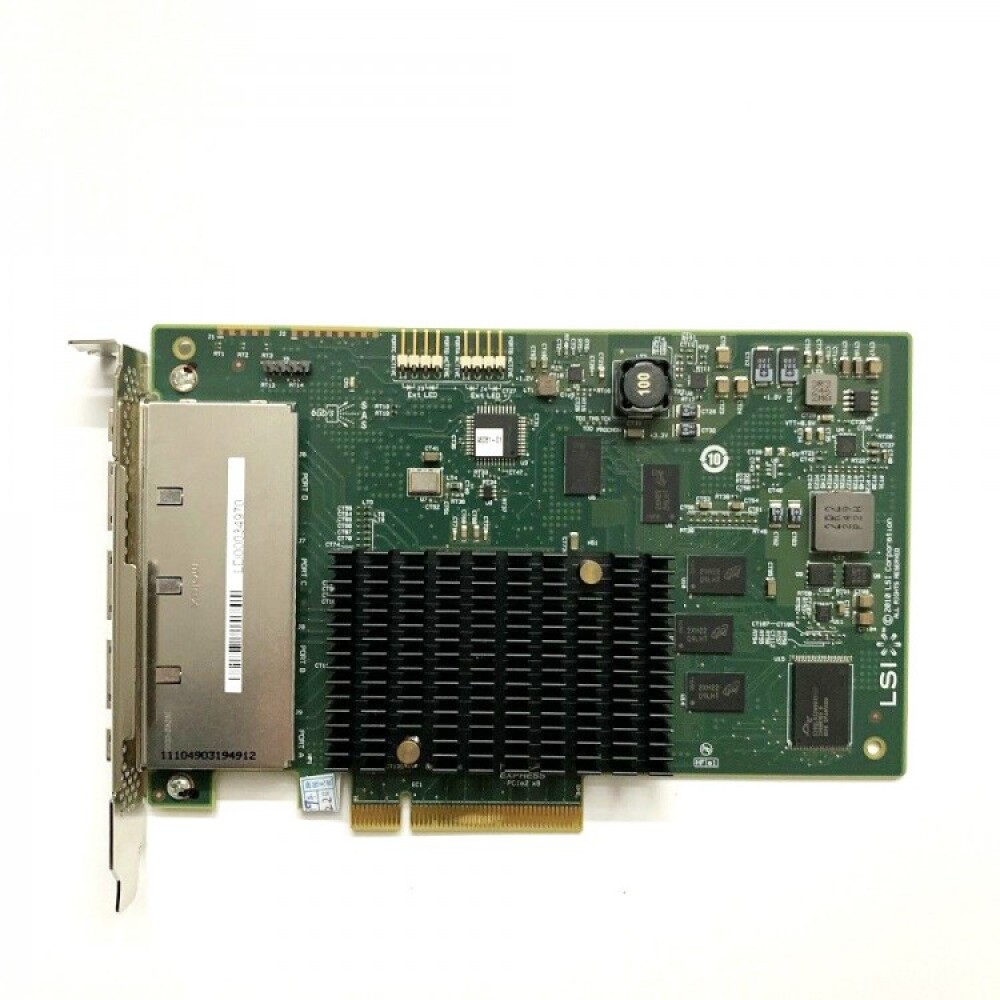

Broadcom LSI 9201‑16e PCIe2.0 IT‑Mode External‑Only SAS Host Bus Adapter
¥1,350.00
促销价
¥1,350.00
常规价格
跳至产品信息
Broadcom LSI 9201‑16e PCIe2.0 IT‑Mode External‑Only SAS Host Bus Adapter
¥1,350.00
促销价
¥1,350.00
常规价格
Basic Parameter Table
| Item | Details |
|---|---|
| Brand | Broadcom (LSI) |
| Model | 9201‑16e |
| Board PN | LSI00276 |
| Controller Chip | SAS2116 |
| Bus Interface | PCI‑E 2.0 x8 |
| Port Type | 16‑port fully external |
| Connector | 4 × SFF‑8644 external SAS connectors |
| Transfer Speed | 6Gb/s SAS, 6Gb/s SATA |
| Working Mode | Pure IT‑mode (Fusion‑MPT pass‑through, no hardware‑RAID; cannot run MegaRAID firmware) |
| Heat Dissipation | Passive black fin‑style heat sink |
| Condition | Factory New Sealed |
| Stock Status | In Stock |
| Delivery Cycle | Within 2 Business Days |
| Warranty Period | 3‑Year Global Warranty |
| Unit Price | $190.00 |
Core Product Features
- PCIe 2.0 high‑port‑count external‑only HBA (Host Bus Adapter) built‑on SAS2116 chip, factory‑flashed to native IT pass‑through firmware. It has no hardware‑RAID function, and forwards raw disk signals directly to the host OS, perfectly suited for ZFS, TrueNAS, FreeNAS, unRAID JBOD‑based storage systems.
- PCIe 2.0 x8 bandwidth, four SFF‑8644 external ports supporting up to 16 SATA/SAS drives inside external JBOD disk enclosures.
- IT‑mode pass‑through allows the operating system to manage each drive independently for software‑defined RAID (ZFS‑RAID‑Z, md‑raid). There is no on‑board cache or hardware RAID‑offload.
- Fan‑less passive black heat‑sink, zero‑noise operation, stable for 24/7 long‑term continuous runtime in rack‑mounted datacenter servers.
- It supports hot‑swap for hard drives in external JBOD enclosures; disks are directly exposed to the host operating system.
- Main application: large‑scale NAS expansion with multiple external disk shelves, long‑term archival backup storage.
Application Scenarios
- ZFS/TrueNAS/FreeNAS NAS systems with multi‑JBOD external disk‑shelf expansion
- Enterprise long‑term archival and backup storage using external SAS enclosures
- Rack‑scale video‑surveillance storage with external JBOD arrays
- High‑density home‑lab software‑RAID storage
