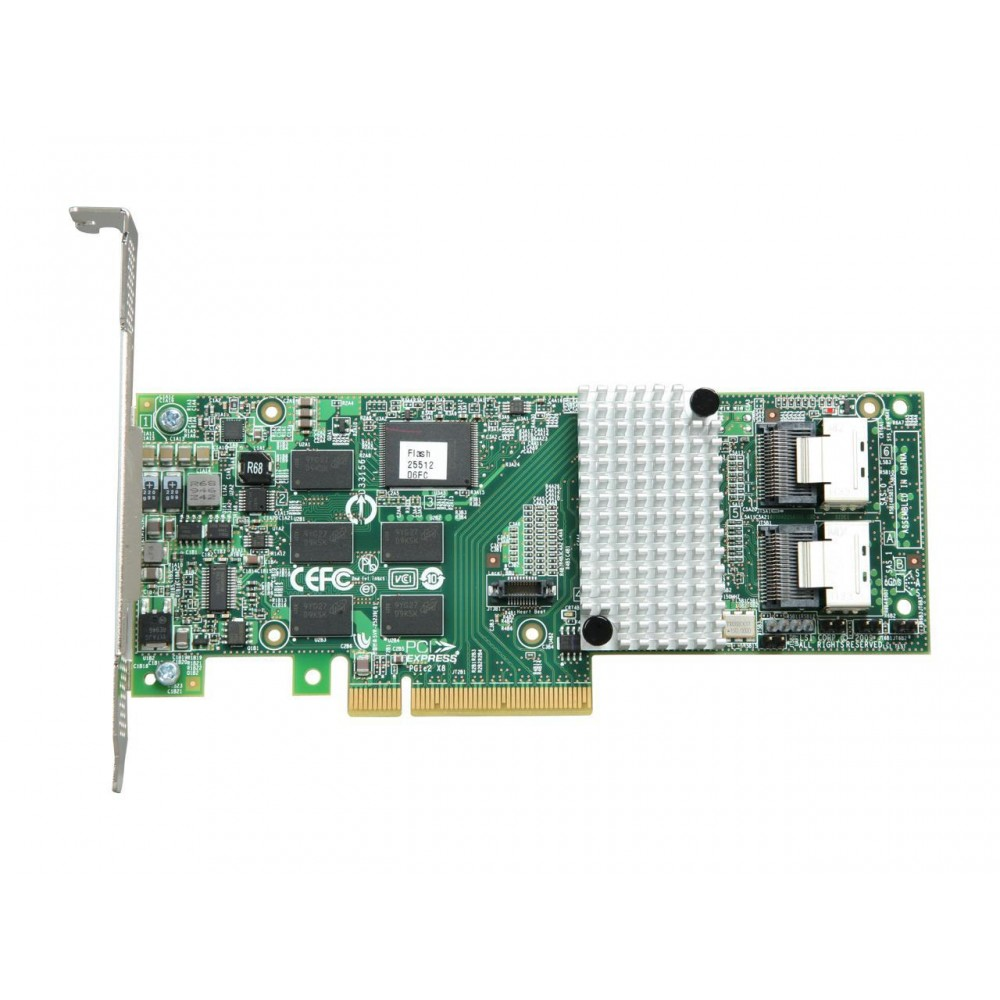

Broadcom LSI 9261‑8i PCIe2.0 MegaRAID RAID Controller (Flashable IT-Mode HBA)
¥1,132.00
促销价
¥1,132.00
常规价格
跳至产品信息
Broadcom LSI 9261‑8i PCIe2.0 MegaRAID RAID Controller (Flashable IT-Mode HBA)
¥1,132.00
促销价
¥1,132.00
常规价格
Basic Parameter Table
| Item | Details |
|---|---|
| Brand | Broadcom (LSI) |
| Model | 9261‑8i |
| Board PN | LSI00212 |
| Controller Chip | SAS2108 |
| Bus Interface | PCI‑E 2.0 x8 |
| Port Layout | 8 internal ports |
| Connectors | 2 × SFF‑8087 internal SAS |
| Transfer Rate | 6Gb/s SAS / SATA |
| Default Mode | MegaRAID IR hardware RAID (0/1/5/6/10/50/60); cross-flashable to pure IT pass-through mode for ZFS/TrueNAS |
| Cooling | Passive white dense fin heatsink, fanless |
| Condition | Factory New Sealed |
| Stock Status | In Stock |
| Lead Time | Ship within 2 business days |
| Warranty | 3-Year Global Warranty |
| Unit Price | $160.00 |
Core Product Features
- Enterprise PCIe 2.0 RAID card built on SAS2108 SoC, native MegaRAID IR firmware supports full advanced hardware RAID levels with on-board cache to accelerate write performance for business storage.
- Two internal SFF-8087 connectors support up to 8 SATA/SAS drives inside server chassis, PCIe2.0 x8 full bandwidth for multi-disk array throughput.
- Dual-mode flexibility:
- IR RAID Mode: Hardware RAID acceleration, built-in redundancy for enterprise file/backup servers.
- IT Pass-through Mode (reflash required): Disable RAID logic, OS directly controls each disk individually for software RAID like ZFS RAID-Z, unRAID, FreeNAS.
- Silent passive heatsink design, 24/7 stable continuous operation for rack storage servers; includes full-height & low-profile mounting brackets.
- Internal drive hot-swap supported after IT firmware flash, all storage devices fully exposed to host operating system.
- Mid-range enterprise 8-port model, widely adopted for business RAID storage and performance DIY NAS after IT flashing.
Application Scenarios
- Native IR RAID deployment: Small & medium enterprise storage servers, backup arrays requiring hardware RAID 5/6 data protection.
- IT-flashed HBA deployment: 8-bay ZFS TrueNAS media storage, high-capacity home lab storage servers, virtualization storage backend.
