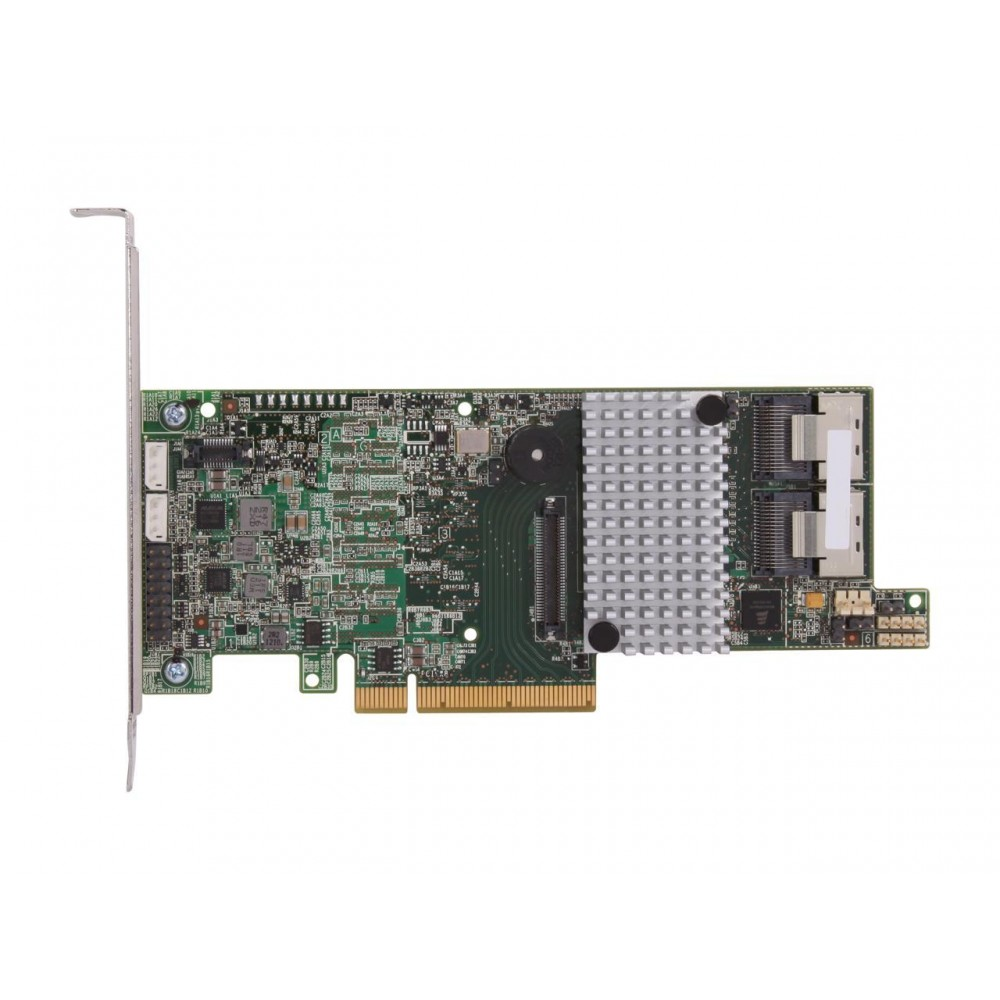

Broadcom LSI 9266‑8i PCIe2.0 MegaRAID RAID Controller (Flashable IT-Mode HBA)
¥1,670.00
促销价
¥1,670.00
常规价格
跳至产品信息
Broadcom LSI 9266‑8i PCIe2.0 MegaRAID RAID Controller (Flashable IT-Mode HBA)
¥1,670.00
促销价
¥1,670.00
常规价格
Basic Parameter Table
| Item | Details |
|---|---|
| Brand | Broadcom (LSI) |
| Model | 9266‑8i |
| Board PN | LSI00295 |
| Controller Chip | LSISAS2208 |
| Bus Interface | PCI‑E 2.0 x8 |
| Port Layout | 8 internal ports |
| Connectors | 2 × SFF‑8087 internal SAS |
| Transfer Speed | 6Gb/s SAS / SATA |
| Default Mode | MegaRAID IR hardware RAID (0/1/5/6/10/50/60); cross-flashable to pure IT pass-through mode for ZFS/TrueNAS |
| Cooling | Passive white dense fin heatsink, fanless silent design |
| Condition | Factory New Sealed |
| Stock Status | In Stock |
| Lead Time | Deliver within 2 business days |
| Warranty | 3-Year Global Warranty |
| Unit Price | $235.00 |
Core Product Features
- High-end enterprise PCIe 2.0 RAID adapter with LSISAS2208 advanced chipset, native MegaRAID IR firmware supports full series advanced hardware RAID levels, large on-board cache greatly improves random write performance for core business storage arrays.
- Dual SFF-8087 internal connectors support up to 8 SATA/SAS hard drives inside server chassis, PCIe2.0 x8 full bandwidth guarantees high throughput for multi-disk storage arrays.
- Dual flexible working modes:
- IR RAID Mode: Hardware RAID full acceleration with cache memory, built-in disk redundancy protection, applicable to medium & large enterprise core file/backup storage servers.
- IT Pass-through Mode (firmware reflash required): Shield onboard RAID logic, operating system independently controls every single disk, perfectly matching software RAID solutions like ZFS RAID-Z, mdadm, unRAID.
- Fanless passive white heatsink design, stable 24/7 non-stop running for rack-mounted storage servers; full-height & low-profile mounting brackets are included.
- Internal hard drive hot-swap function available after flashing to IT mode, all storage devices are directly exposed to the host operating system.
- Flagship 8-port model of SAS2208 series, superior signal stability and power efficiency, mainstream premium choice for enterprise hardware RAID storage and high-performance large-capacity DIY NAS after IT flashing.
Application Scenarios
- Native IR RAID deployment: Medium & large enterprise core storage servers, critical backup disk arrays requiring hardware RAID 5/6 data loss prevention.
- IT-flashed HBA deployment: 8-bay high-performance ZFS TrueNAS media storage, virtualization storage backend, enterprise-grade home lab mass storage servers.
