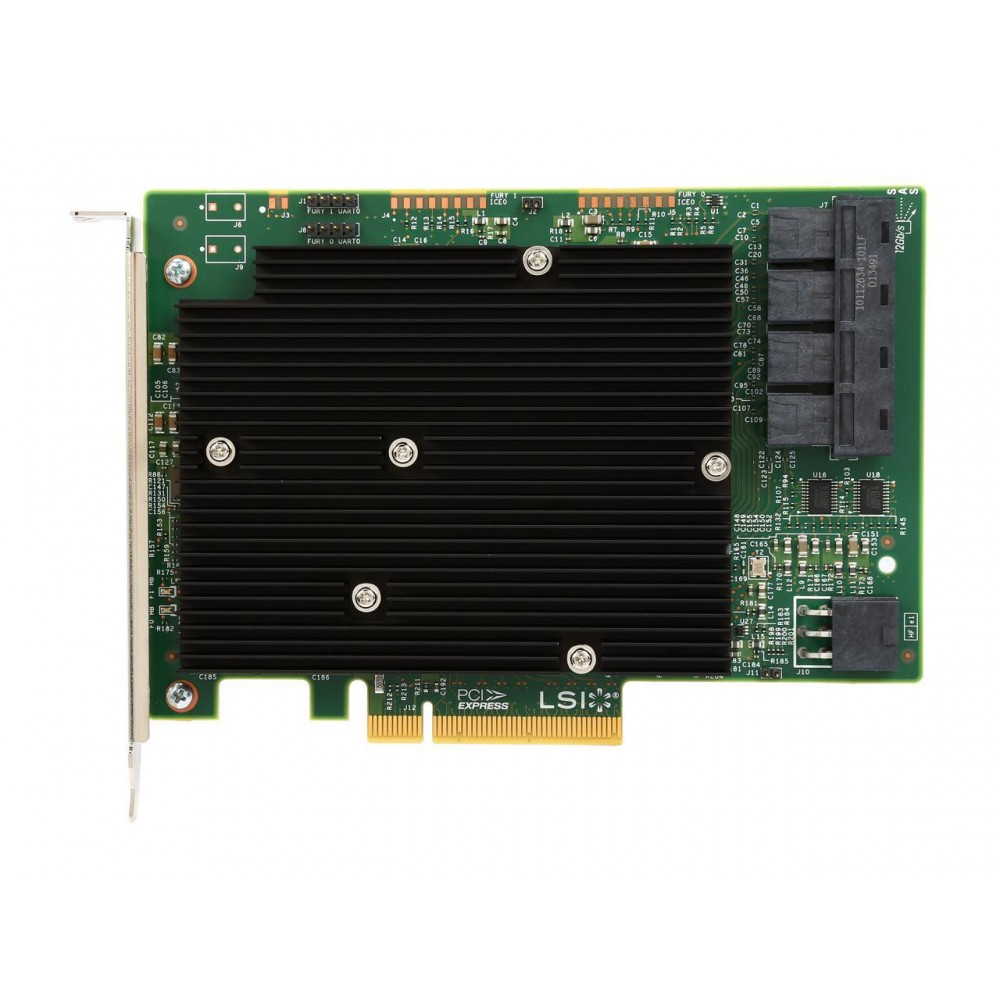

Broadcom LSI 9300‑16i PCIe3.0 IT‑Mode 12G SAS Tri‑Mode HBA Storage Adapter

Basic Parameter Table

Core Product Features

1. PCIe 3.0 generation classic IT‑mode HBA card built‑on SAS3008 chip, factory flashed with pure IT pass‑through firmware, without IR hardware‑RAID function. It is the mainstream controller for ZFS, TrueNAS, Unraid open‑source NAS systems.
2. PCIe 3.0 x8 bandwidth, four SFF‑8643 internal connectors, supporting up to 16 internal hard‑disk channels for high‑density rack‑mount NAS chassis.
3. Tri‑mode compatibility: 12G SAS HDD, 6G SATA SSD, U.2 NVMe drives, supports mixed deployment of mechanical hard disks and solid‑state disks.
4. Passive fan‑less heat‑sink design, zero noise, stable 24/7 long‑term continuous operation in storage‑server environments.
5. DOM digital diagnostic monitoring, you can check drive status, adapter temperature, link health via the StorCLI command‑line tool for routine maintenance.
6. Hot‑swap‑capable, allowing online hard‑disk replacement without shutting down the host server.

Application Scenarios

• High‑density 16‑bay rack‑mount TrueNAS / ZFS enterprise‑grade NAS servers
• Software‑defined storage (SDS) multi‑disk virtualization nodes
• Mass‑capacity private cloud cold‑data backup and archive storage
• Video post‑production high‑capacity local storage array expansion
