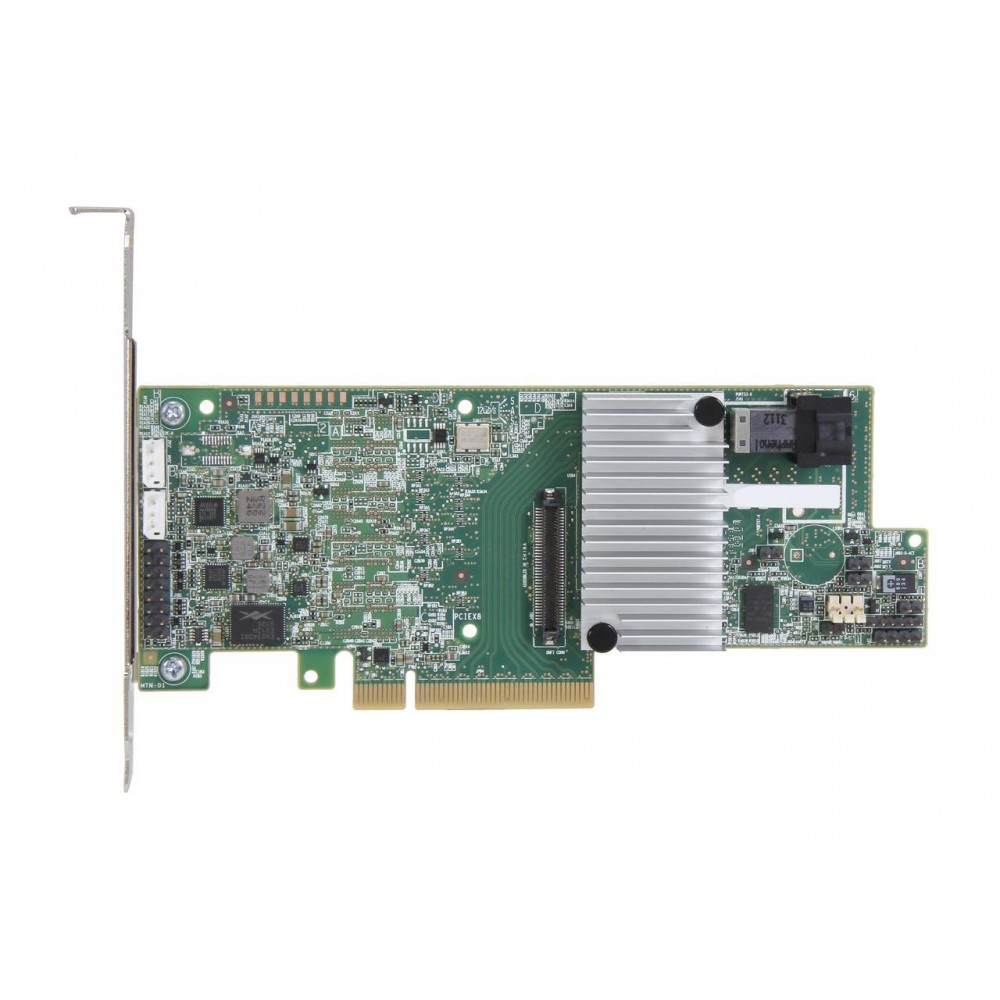

Broadcom LSI 9361‑4i PCIe3.0 MegaRAID RAID‑Mode SAS Storage Controller
¥2,500.00
促销价
¥2,500.00
常规价格
跳至产品信息
Broadcom LSI 9361‑4i PCIe3.0 MegaRAID RAID‑Mode SAS Storage Controller
¥2,500.00
促销价
¥2,500.00
常规价格
Basic Parameter Table
| Item | Details |
|---|---|
| Brand | Broadcom (LSI) |
| Model | 9361‑4i |
| Board PN | LSI00415 |
| Controller Chip | SAS3108 |
| Bus Interface | PCIe 3.0 x8 |
| Port Type | 4‑port internal |
| Connector | 1 × SFF‑8643 internal connector |
| Transfer Speed | 12Gb/s SAS, 6Gb/s SATA |
| Working Mode | MegaRAID hardware‑RAID mode (RAID 0/1/10/5/50/6/60; can be cross‑flashed to IT‑mode HBA) |
| Heat Dissipation | Passive rib‑style aluminum heat sink |
| Condition | Factory New Sealed |
| Stock Status | In Stock |
| Delivery Cycle | Within 2 Business Days |
| Warranty Period | 3‑Year Global Warranty |
| Unit Price | $350.00 |
Core Product Features
- Mid‑range PCIe‑3.0 hardware‑RAID storage controller built‑on SAS3108 high‑end RAID‑on‑chip, factory‑loaded with MegaRAID firmware. Designed for 4‑bay enterprise servers, business file‑storage, database servers and NVR video‑surveillance systems that require stable hardware‑RAID data redundancy.
- PCIe 3.0 x8 bus bandwidth, one SFF‑8643 internal port supporting up to 4 internal SATA/SAS hard‑disk drives.
- Hardware‑RAID array levels: RAID0, RAID1, RAID10, RAID5, RAID50, RAID6, RAID60. The dedicated SAS3108 chip offloads RAID‑calculation tasks from the host CPU. The card can be re‑flashed to pure IT‑pass‑through firmware for ZFS/TrueNAS HBA‑mode operation.
- Passive aluminium rib‑style heat‑sink, fan‑less zero‑noise design, stable for 24/7 long‑term continuous operation in rack‑mounted enterprise‑server environments.
- RAID‑health monitoring via MegaRAID Storage Manager (MSM) software, which sends alerts for disk failure, degraded array status and predictive drive faults.
- Hot‑swap‑capable, allowing online hard‑disk replacement for faulty drives without shutting down the host server.
Application Scenarios
- 4‑bay enterprise database & business application servers
- Centralized office file‑storage and backup systems
- Enterprise‑grade rack‑mount NVR video‑surveillance storage
- Home‑lab NAS (after cross‑flash to IT‑mode for ZFS storage)
