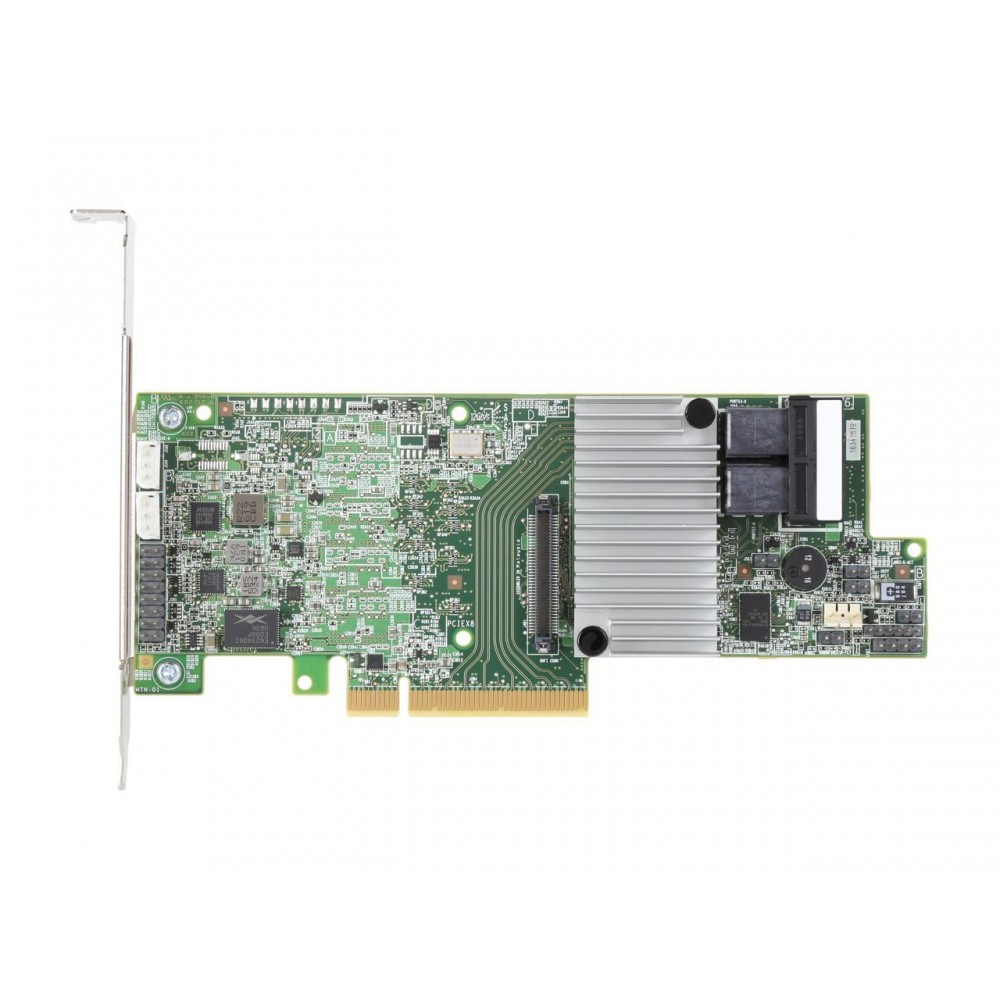

Broadcom LSI 9361‑8i PCIe3.0 MegaRAID RAID‑Mode SAS Storage Controller
¥1,852.00
促销价
¥1,852.00
常规价格
Basic Parameter Table
| Item | Details |
|---|---|
| Brand | Broadcom (LSI) |
| Model | 9361‑8i |
| Board PN | LSI00417 |
| Controller Chip | SAS3108 |
| Bus Interface | PCIe 3.0 x8 |
| Port Type | 8‑port internal |
| Connector | 2 × SFF‑8643 internal connectors |
| Transfer Speed | 12Gb/s SAS, 6Gb/s SATA |
| Working Mode | MegaRAID hardware‑RAID mode (RAID 0/1/10/5/50/6/60; can be cross‑flashed to IT‑mode HBA) |
| Heat Dissipation | Passive rib‑style aluminum heat sink |
| Condition | Factory New Sealed |
| Stock Status | In Stock |
| Delivery Cycle | Within 2 Business Days |
| Warranty Period | 3‑Year Global Warranty |
| Unit Price | $260.00 |
Core Product Features
- Mid‑range enterprise‑grade PCIe‑3.0 hardware‑RAID controller powered by the SAS3108 RAID‑on‑chip, factory‑running MegaRAID firmware. It is designed for 8‑bay application servers, database servers, enterprise file‑storage and rack‑mount NVR systems requiring robust hardware‑based RAID data redundancy.
- PCIe 3.0 x8 bus bandwidth, dual SFF‑8643 internal ports supporting up to 8 internal SATA/SAS hard‑disk drives.
- Supported hardware‑RAID levels: RAID0, RAID1, RAID10, RAID5, RAID50, RAID6, RAID60. The dedicated SAS3108 chip offloads RAID‑calculation tasks from the host CPU. The card can be re‑flashed to pure IT‑pass‑through firmware to work as an HBA for ZFS/TrueNAS storage.
- Passive aluminium rib‑type heat sink, fan‑less zero‑noise design, stable for 24/7 long‑term continuous operation in datacenter rack‑mounted server environments.
- RAID‑health monitoring via MegaRAID Storage Manager (MSM) software, which generates alerts for disk faults, degraded RAID arrays and predicted drive failures.
- Hot‑swap‑capable, enabling online hard‑disk replacement for defective drives without powering‑down the host server.
Application Scenarios
- 8‑bay enterprise database and business application servers
- Centralized office and enterprise‑level file‑backup storage systems
- Rack‑mount enterprise NVR video‑surveillance storage
- Home‑lab NAS (after cross‑flashing to IT‑mode for ZFS deployment)
