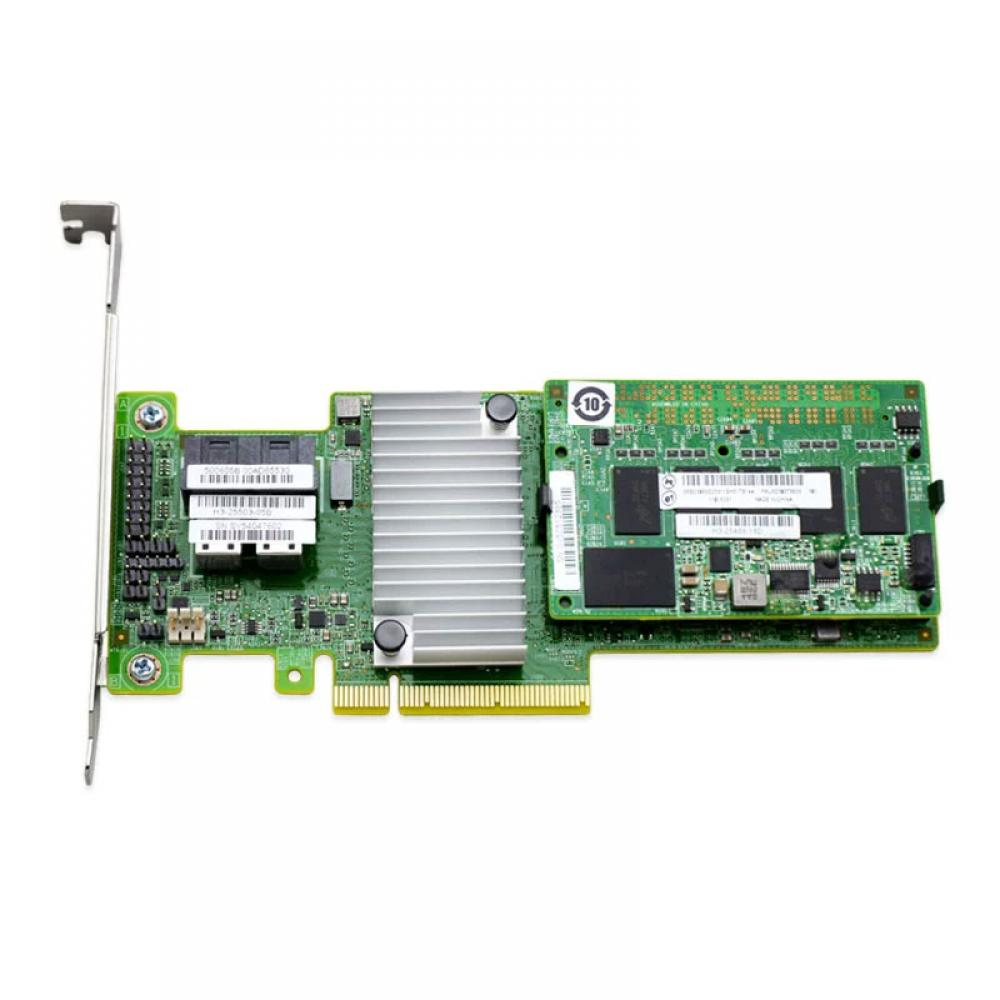

Broadcom LSI 9364‑8i PCIe3.0 MegaRAID RAID‑Mode SAS Storage Controller
¥1,348.00
促销价
¥1,348.00
常规价格
跳至产品信息
Broadcom LSI 9364‑8i PCIe3.0 MegaRAID RAID‑Mode SAS Storage Controller
¥1,348.00
促销价
¥1,348.00
常规价格
Basic Parameter Table
| Item | Details |
|---|---|
| Brand | Broadcom (LSI) |
| Model | 9364‑8i |
| Board PN | 03T6792 |
| Controller Chip | SAS3108 |
| Bus Interface | PCIe 3.0 x8 |
| Port Type | 8‑port internal |
| Connector | 2 × SFF‑8643 internal connectors |
| Transfer Speed | 12Gb/s SAS, 6Gb/s SATA |
| Working Mode | MegaRAID hardware‑RAID mode (RAID 0/1/10/5/50/6/60; can be cross‑flashed to IT‑mode HBA) |
| Heat Dissipation | Passive rib‑style aluminum heat sink |
| Condition | Factory New Sealed |
| Stock Status | In Stock |
| Delivery Cycle | Within 2 Business Days |
| Warranty Period | 3‑Year Global Warranty |
| Unit Price | $190.00 |
Core Product Features
- PCIe‑3.0 hardware‑RAID storage controller built‑on SAS3108 chip with onboard cache memory, factory‑loaded with MegaRAID firmware. It is designed for 8‑bay business servers, office file‑servers, NVR video‑recording systems that require hardware‑level RAID data‑redundancy.
- PCIe 3.0 x8 bus bandwidth, dual SFF‑8643 internal ports supporting up to 8 internal SATA/SAS hard‑disk drives. The on‑board cache improves write‑performance and safeguards data during power‑failure incidents.
- Supported hardware‑RAID array levels: RAID0, RAID1, RAID10, RAID5, RAID50, RAID6, RAID60. The SAS3108 chip offloads RAID‑calculation tasks from the host CPU. The card can be re‑flashed to pure IT‑pass‑through firmware to work as an HBA for ZFS/TrueNAS‑mode storage.
- Fan‑free passive aluminium heat‑sink, zero‑noise operation, stable for 24/7 continuous runtime in rack‑mounted servers.
- RAID‑health monitoring via MegaRAID Storage Manager (MSM) software, which alerts on disk faults and degraded RAID‑array status.
- Hot‑swap‑capable, allowing online hard‑disk replacement for faulty drives without shutting down the host server.
Application Scenarios
- 8‑bay small‑enterprise business servers with hardware‑RAID data‑protection
- Office centralized file‑storage and backup systems
- Rack‑mount NVR video‑surveillance storage servers
- Home‑lab NAS (after cross‑flashing to IT‑mode for ZFS deployment)
