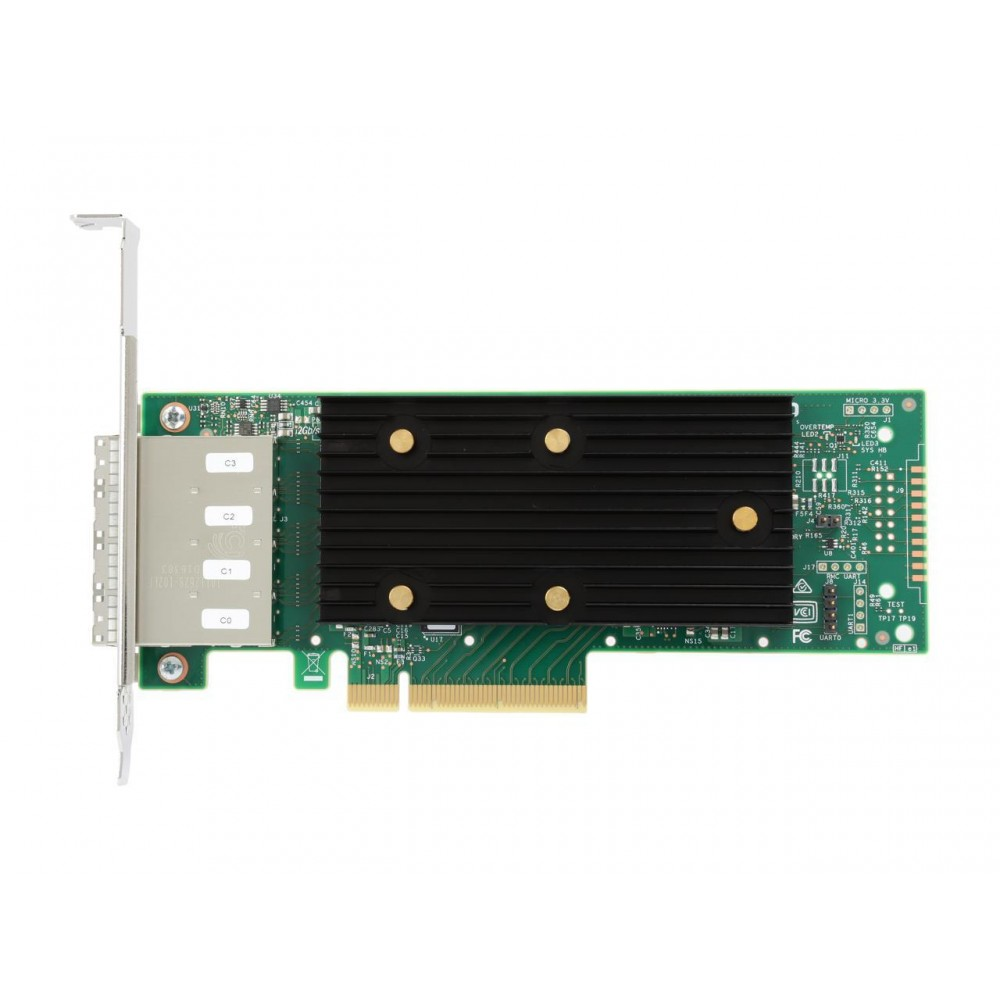

Broadcom LSI 9400‑16e PCIe3.1 Tri‑Mode IT‑Mode External‑Only HBA Storage Adapter
¥4,156.00
促销价
¥4,156.00
常规价格
跳至产品信息
Broadcom LSI 9400‑16e PCIe3.1 Tri‑Mode IT‑Mode External‑Only HBA Storage Adapter
¥4,156.00
促销价
¥4,156.00
常规价格
Basic Parameter Table
| Item | Details |
|---|---|
| Brand | Broadcom (LSI) |
| Model | 9400‑16e |
| Board PN | 05‑50013‑00 |
| Controller Chip | SAS3416 |
| Bus Interface | PCIe 3.1 x8 |
| Port Type | 16‑port fully external |
| Connector | 4 × SFF‑8644 external ports |
| Supported Protocol | 12Gb/s SAS, 6Gb/s SATA, PCIe NVMe (Tri‑Mode) |
| Working Mode | Pure IT Pass‑Through Mode (No hardware RAID) |
| Heat Dissipation | Passive fin‑style fanless heat sink |
| Condition | Factory New Sealed |
| Stock Status | In Stock |
| Delivery Cycle | Shipment within 2 Business Days |
| Warranty Period | 3‑Year Global Warranty |
| Unit Price | $580.00 |
Core Product Features
- Pure external‑port IT‑mode HBA adapter powered by SAS3416 chip, factory‑flashed with pure IT pass‑through firmware, no hardware‑RAID function, optimized for connecting external JBOD disk enclosures.
- PCIe 3.1 x8 bus bandwidth, four SFF‑8644 external connectors, expand up to 16 hard‑drive channels for off‑server external storage arrays.
- Full tri‑mode compatibility, supports 12G SAS hard drives, 6G SATA SSD and U.2 NVMe drives, enables mixed mechanical‑and‑flash storage deployment on external JBOD units.
- Fan‑less passive heat‑sink design, zero fan failure risk, supports 24/7 non‑stop operation in data‑center server environments.
- DOM digital diagnostic monitoring, allows reading of optical‑link status, board temperature, operating voltage via the StorCLI tool for regular storage‑system maintenance.
- Hot‑swap compliant; supports online drive replacement without shutting down the host server, ideal for scale‑out NAS, archive backup and video‑surveillance JBOD storage.
Application Scenarios
- Enterprise NAS with external JBOD disk‑shelf capacity expansion
- Virtualization‑cluster shared external storage pool construction
- Long‑term data archive & cold‑backup storage systems
- Video‑surveillance mass‑storage systems with external disk enclosures
