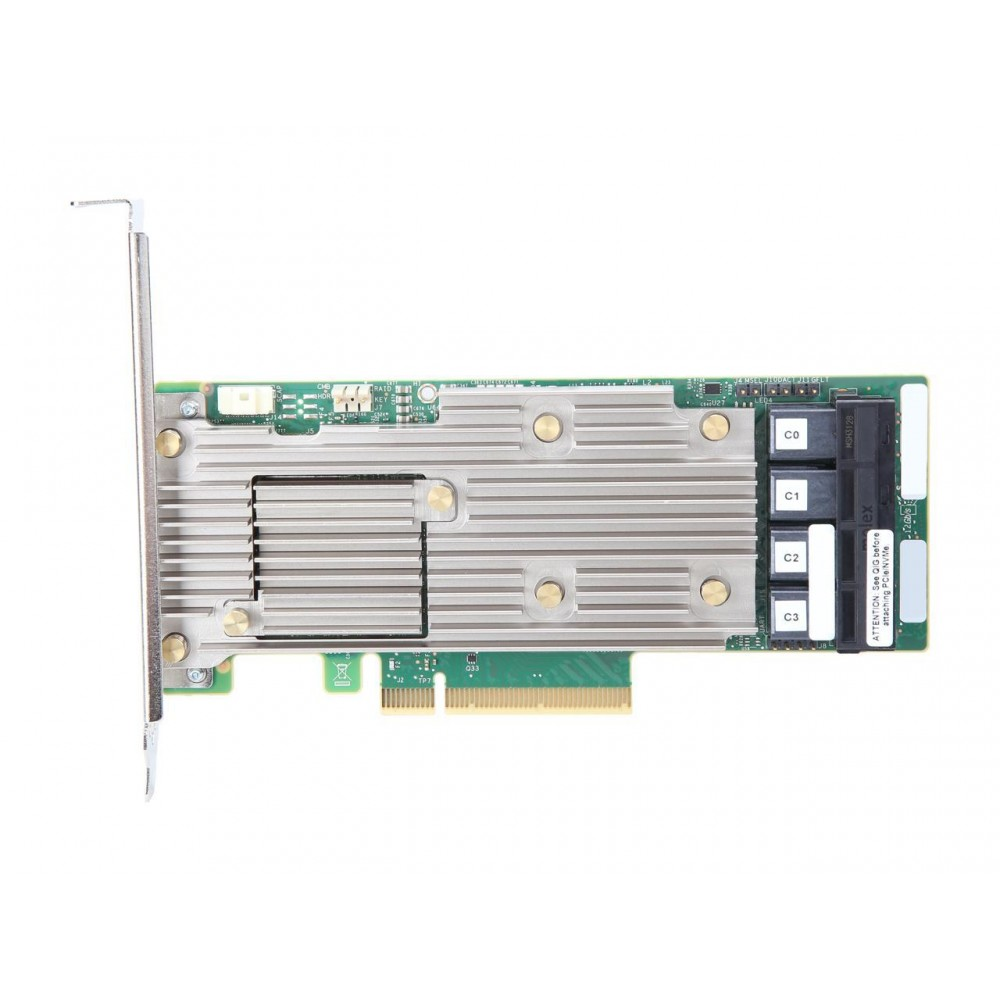

Broadcom LSI 9460‑16i PCIe3.1 Tri‑Mode MegaRAID Hardware RAID Controller Card
¥7,180.00
促销价
¥7,180.00
常规价格
Basic Parameter Table
| Item | Details |
|---|---|
| Brand | Broadcom (LSI) |
| Model | 9460‑16i |
| Board PN | 05‑50011‑00 |
| Controller Chip | SAS3516 |
| Bus Interface | PCIe 3.1 x8 |
| Port Type | Internal 16‑port |
| Connector | 4 × SFF‑8643 internal connectors |
| Supported Protocol | 12Gb/s SAS, 6Gb/s SATA, PCIe NVMe (Tri‑Mode) |
| RAID Mode | Full MegaRAID hardware RAID (RAID0/1/5/6/10/50/60) |
| Cache | On‑board dedicated cache memory |
| Heat Dissipation | Passive rib‑style fan‑less heat sink |
| Condition | Factory New Sealed |
| Stock Status | In Stock |
| Delivery Cycle | Within 2 Business Days |
| Warranty Period | 3‑Year Global Warranty |
| Unit Price | $1000.00 |
Core Product Features
- Mid‑range enterprise‑grade internal MegaRAID hardware‑RAID card powered by SAS3516 controller chip, with onboard cache memory to accelerate write performance for RAID5/6 redundant arrays. It runs IR‑mode firmware for full hardware‑level RAID operations, independent of host‑system software.
- PCIe 3.1 x8 bus bandwidth, four SFF‑8643 internal connectors supporting up to 16 internal drives, designed for high‑density 16‑bay server drive bays. It supports mixed deployment of SAS HDD, SATA SSD and U.2 NVMe drives under tri‑mode architecture.
- Comprehensive enterprise RAID levels: RAID0, RAID1, RAID5, RAID6, RAID10, RAID50, RAID60. RAID6/60 provides dual‑disk‑failure protection for critical business data, ideal for high‑reliability storage environments.
- Large passive rib‑style heat sink eliminates fan‑related noise and failure risks, supporting stable 24/7 continuous operation in rack‑mounted data‑center servers.
- Full DDM diagnostic monitoring. Users can manage RAID groups, check drive health status, configure cache write‑back policy, and perform firmware upgrades via MegaRAID GUI and StorCLI command‑line utility. The card can also be re‑flashed to pure IT‑mode for ZFS‑based NAS pass‑through storage.
- Hot‑swap compliant, enabling online hard‑disk replacement without shutting down the host server.
Application Scenarios
- Mid‑scale enterprise database servers requiring RAID6 data redundancy
- 16‑bay rack‑mounted file‑storage and OA business servers
- Virtualization cluster core storage nodes with high‑reliability RAID arrays
- Medical‑image and post‑production video archival storage servers
