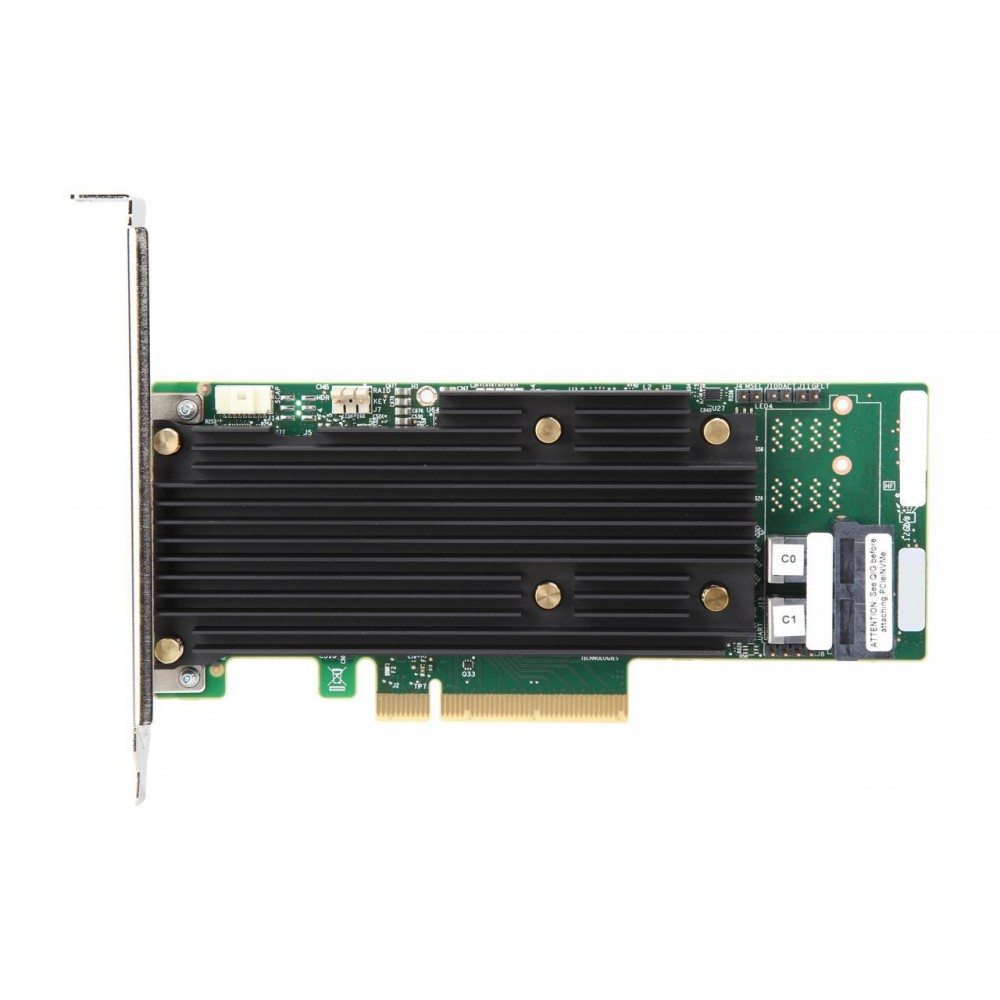

Broadcom LSI 9460‑8i PCIe3.1 Tri‑Mode MegaRAID Hardware RAID Controller Card
¥4,660.00
促销价
¥4,660.00
常规价格
Basic Parameter Table
| Item | Details |
|---|---|
| Brand | Broadcom (LSI) |
| Model | 9460‑8i |
| Board PN | 05‑50011‑02 |
| Controller Chip | SAS3508 |
| Bus Interface | PCIe 3.1 x8 |
| Port Type | Internal 8‑port |
| Connector | 2 × SFF‑8643 internal connectors |
| Supported Protocol | 12Gb/s SAS, 6Gb/s SATA, PCIe NVMe (Tri‑Mode) |
| RAID Mode | Full MegaRAID hardware RAID (RAID0/1/5/6/10/50/60) |
| Cache | On‑board dedicated cache memory |
| Heat Dissipation | Passive fin‑style fan‑less heat sink |
| Condition | Factory New Sealed |
| Stock Status | In Stock |
| Delivery Cycle | Within 2 Business Days |
| Warranty Period | 3‑Year Global Warranty |
| Unit Price | $650.00 |
Core Product Features
- Mid‑range enterprise‑level internal IR‑mode MegaRAID hardware RAID card built‑on SAS3508 chip, equipped with onboard cache memory to boost write‑performance for RAID‑5/‑6 redundant arrays, offloading RAID‑calculation work from the host CPU.
- PCIe 3.1 x8 bus bandwidth, dual SFF‑8643 internal ports supporting up to 8 internal drives. Tri‑mode architecture supports 12G SAS HDD, 6G SATA SSD and U.2 NVMe drives for mixed‑storage deployments.
- Complete enterprise‑grade RAID‑level support: RAID0, RAID1, RAID5, RAID6, RAID10, RAID50, RAID60. RAID6/60 delivers dual‑disk‑failure protection for critical business data.
- Black passive fin‑type heat sink, fan‑free design, zero mechanical‑failure risk, stable for 24/7 continuous operation inside rack‑mounted enterprise‑server chassis.
- DDM digital diagnostic monitoring: manage RAID arrays, check drive health status, configure cache write‑back policies and upgrade firmware via MegaRAID GUI and StorCLI command‑line utility. The card can also be re‑flashed to pure IT‑mode for ZFS‑NAS pass‑through application.
- Hot‑swap‑capable, supporting online hard‑disk replacement without server shutdown.
Application Scenarios
- Medium‑sized enterprise database servers with RAID‑6 data redundancy
- 8‑bay rack‑mounted file‑storage and OA business servers
- Small‑scale virtualization cluster core storage nodes
- Medical‑image storage and video‑editing workstation redundant storage
