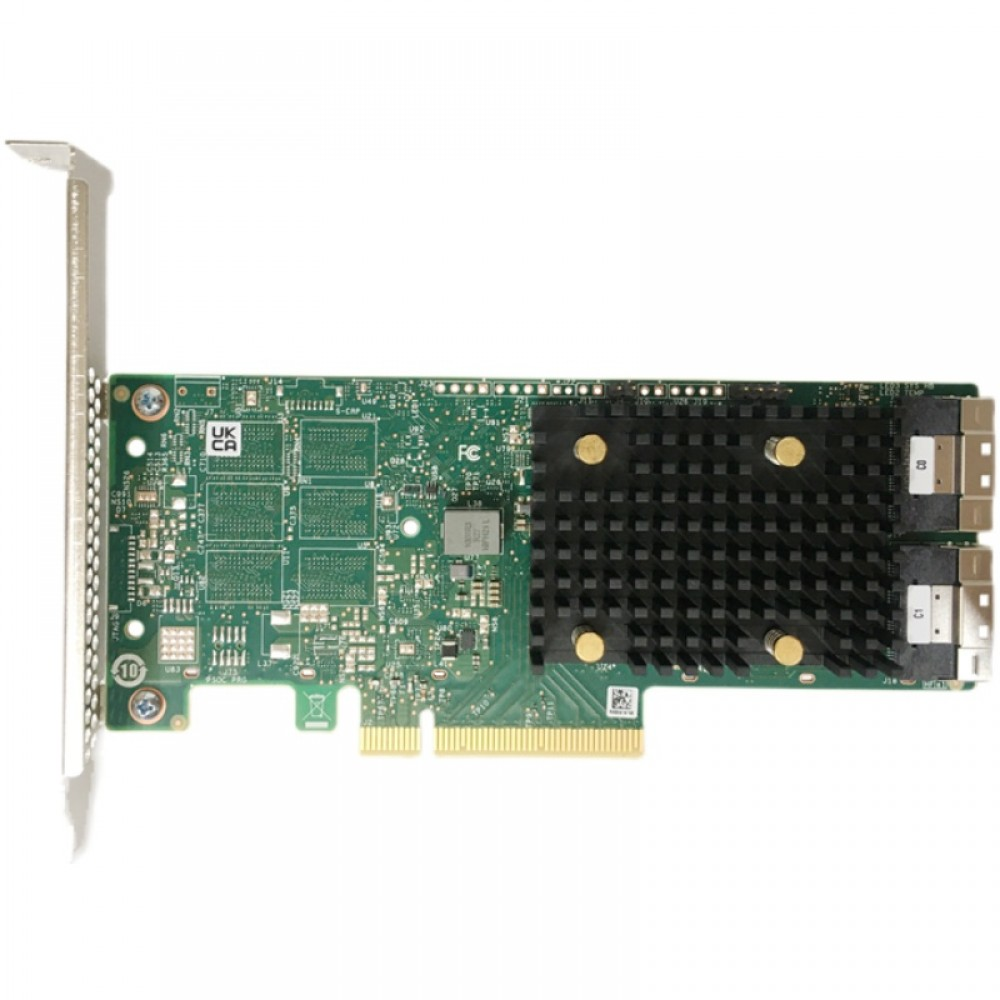

Broadcom LSI 9500-16i Tri-Mode Internal HBA Storage Controller Card
¥4,660.00
促销价
¥4,660.00
常规价格
跳至产品信息
Broadcom LSI 9500-16i Tri-Mode Internal HBA Storage Controller Card
¥4,660.00
促销价
¥4,660.00
常规价格
Basic Parameter Table
| Item | Details |
|---|---|
| Brand | Broadcom (LSI) |
| Model | 9500-16i |
| Board PN | 05-50134-00 |
| Controller Chip | SAS3816 |
| Bus Interface | PCIe 4.0 x8 |
| Port Type | Internal 16-port |
| Supported Protocols | 12Gb/s SAS, 6Gb/s SATA, PCIe 4.0 NVMe (Tri-Mode) |
| Connector | 2 × Internal SFF-8643 |
| Heat Dissipation | Passive large heat sink, fanless design |
| Form Factor | Standard full-height PCIe bracket |
| Condition | Factory New Sealed |
| Stock Status | In Stock |
| Delivery Cycle | Within 2 Business Days |
| Warranty Period | 3 Years Global Warranty |
| Unit Price | $650.00 |
Core Product Features
- Original Broadcom internal tri-mode HBA, SAS3816 main control chip, simultaneously compatible with SAS, SATA, NVMe three storage media, for internal hard disk backplane expansion of servers.
- PCIe Gen4 x8 high-speed bus, 16 internal storage channels, two SFF-8643 internal connectors, can be connected to server built-in hard disk cages and internal JBOD backplanes.
- Supports 12G high-speed SAS, backward compatible with 6G SATA, and compatible with internal NVMe U.2 hard drives, suitable for mixed deployment of mechanical hard disks and solid-state drives.
- Fanless passive heat sink, low noise and high reliability, meets 24-hour uninterrupted operation requirements of database, file storage and virtualization servers.
- Supports two working modes: IT pass-through mode (for ZFS, TrueNAS, VMware soft RAID) and IR RAID mode (hardware RAID0/1/10).
- Unified StorCLI/MegaRAID management tool, supports real-time monitoring of hard disk status, optical path fault alarm and online firmware upgrade, convenient data center batch O&M.
Application Scenarios
- NAS / TrueNAS / ZFS storage server built-in multi-disk expansion
- Virtualization, database server internal mixed SAS/SATA/NVMe hard disk deployment
- Enterprise rack server built-in high-density hard disk cage capacity expansion
- Small private cloud storage node internal storage pool construction
