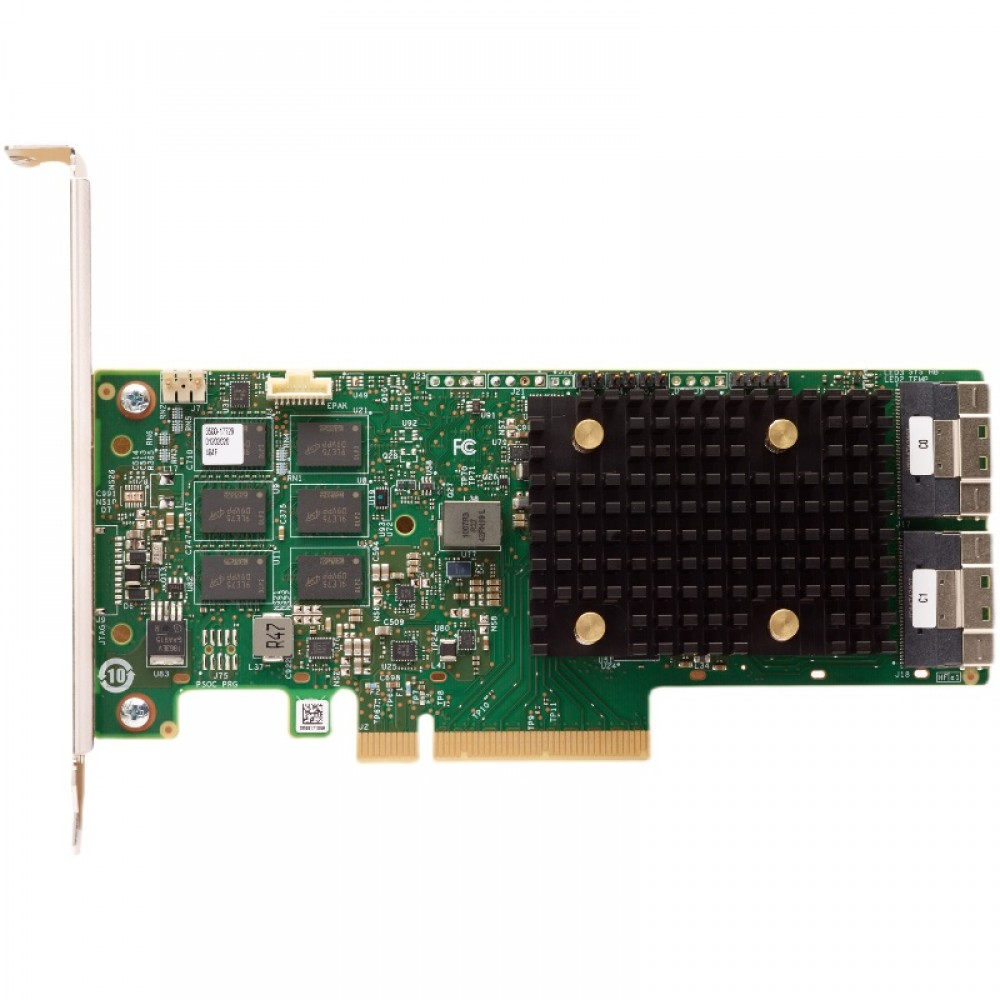

Broadcom LSI 9560-16i MegaRAID Tri-Mode Hardware RAID Controller Card
¥17,980.00
促销价
¥17,980.00
常规价格
跳至产品信息
Broadcom LSI 9560-16i MegaRAID Tri-Mode Hardware RAID Controller Card
¥17,980.00
促销价
¥17,980.00
常规价格
Basic Parameter Table
| Item | Details |
|---|---|
| Brand | Broadcom (LSI) |
| Model | 9560-16i |
| Board PN | 05-50077-00 |
| Controller Chip | SAS3916 |
| Bus Interface | PCIe 4.0 x8 |
| Port Type | Internal 16-port |
| Interface Connector | 2 × SFF-8643 |
| Supported Protocol | 12Gb/s SAS, 6Gb/s SATA, PCIe 4.0 NVMe (Tri-Mode) |
| RAID Mode | MegaRAID Hardware RAID (RAID0/1/5/6/10/50/60) |
| Cache Memory | Onboard dedicated cache RAM |
| Heat Dissipation | Passive large-area heat sink, fanless design |
| Condition | Factory New Sealed |
| Stock Status | In Stock |
| Delivery Cycle | Shipment within 2 Business Days |
| Warranty Period | 3 Years Global Warranty |
| Unit Price | $2500.00 |
Core Product Features
- Flagship enterprise internal hardware RAID card, SAS3916 main control chip with independent cache, official MegaRAID hardware RAID, high reliability for database and core business servers.
- PCIe Gen4 x8 bandwidth, two SFF-8643 internal ports supporting up to 16 hard disks, mixed compatible with SAS mechanical disks, SATA SSD, U.2 NVMe solid-state drives.
- Complete enterprise hardware RAID group functions, supports RAID5/6/50/60 high-security redundant arrays, with cache write-back protection to improve random write performance of storage arrays.
- Passive fanless heat sink, stable 24/7 continuous operation in data center server equipment rooms, no extra cooling fan noise and failure risk.
- Full DDM hard disk real-time monitoring, supports hard disk failure early warning, hot-swap online disk replacement, firmware batch upgrade through StorCLI/MegaRAID management tools.
- Tri-mode compatible architecture, one card meets mixed deployment of mechanical disks and high-speed NVMe solid-state disks, widely used in financial database, virtualization cluster, enterprise core file storage servers.
