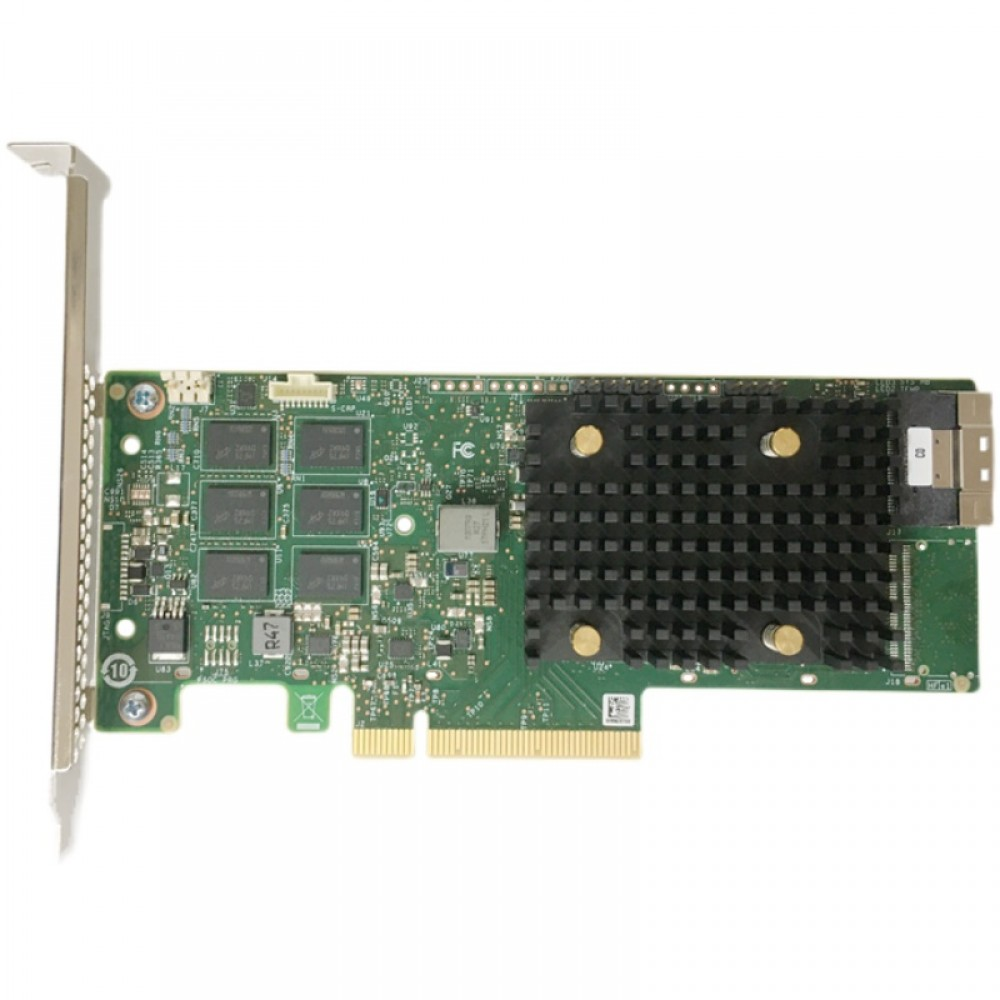

Broadcom LSI 9560-8i MegaRAID Tri-Mode Hardware RAID Controller Card
¥7,180.00
促销价
¥7,180.00
常规价格
跳至产品信息
Broadcom LSI 9560-8i MegaRAID Tri-Mode Hardware RAID Controller Card
¥7,180.00
促销价
¥7,180.00
常规价格
Basic Parameter Table
| Item | Details |
|---|---|
| Brand | Broadcom (LSI) |
| Model | 9560-8i |
| Board PN | 05-50077-01 |
| Controller Chip | SAS3908 |
| Bus Interface | PCIe 4.0 x8 |
| Port Type | Internal 8-port |
| Connector | Single SFF-8643 internal connector |
| Supported Protocol | 12Gb/s SAS, 6Gb/s SATA, PCIe 4.0 NVMe (Tri-Mode) |
| RAID Function | Full MegaRAID hardware RAID: RAID0/1/5/6/10/50/60 |
| Cache | Onboard dedicated cache memory |
| Heat Dissipation | Passive fanless large heat sink |
| Condition | Factory New Sealed |
| Stock Status | In Stock |
| Delivery Cycle | Shipment within 2 Business Days |
| Warranty Period | 3 Years Global Warranty |
| Unit Price | $1000.00 |
Core Product Features
- Enterprise mid-range internal hardware RAID card with independent cache, SAS3908 main control chip, official MegaRAID hardware RAID engine, designed for small & medium database, virtualization core servers.
- PCIe Gen4 x8 high-speed bus, single SFF-8643 port expands up to 8 internal hard drives, supports mixed deployment of SAS mechanical disks, SATA SSD and U.2 NVMe solid-state drives.
- Complete enterprise redundant RAID array support (RAID5/6/50/60), cache write-back acceleration greatly improves random write performance of storage arrays, suitable for high I/O business scenarios.
- Fanless passive heat sink design, low noise and high stability, meets 24/7 uninterrupted operation requirements of enterprise equipment rooms.
- Full DDM real-time monitoring, supports hard disk fault early warning, hot-swap online disk replacement, batch firmware upgrade via StorCLI/MegaRAID management tool.
- Tri-mode unified compatibility, one card covers mechanical disk & high-speed NVMe solid-state disk mixed deployment, cost-effective for medium business core storage construction.
Application Scenarios
- Medium enterprise core database server high-reliability RAID storage
- Small virtualization cluster mixed SAS/NVMe storage pool construction
- Enterprise OA, file server redundant data storage array deployment
- Medical image, video editing workstation high-performance storage expansion
