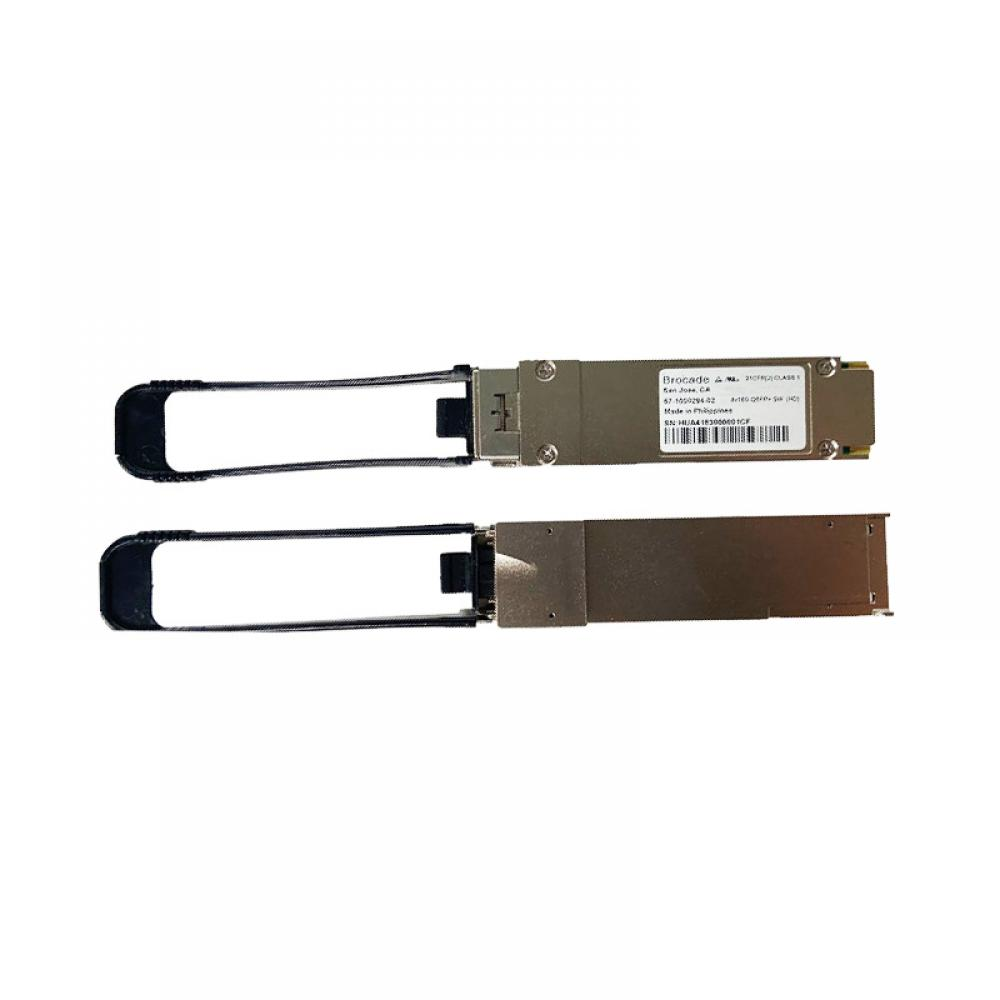

Brocade 57-1000294-02 64G 4x16G FC SWL QSFP+ Transceiver Module (1-pack)
¥1,065.00
促销价
¥1,065.00
常规价格
跳至产品信息
Key Specifications
Brocade 57-1000294-02 64G 4x16G FC SWL QSFP+ Transceiver Module (1-pack)
¥1,065.00
促销价
¥1,065.00
常规价格
Product Overview
The Brocade 57-1000294-02 is a factory-sealed, enterprise-grade 4x16Gbps (64Gbps total bandwidth) Short Wavelength (SWL) QSFP+ Fibre Channel transceiver, purpose-built for high-performance, short-reach storage networking. Operating at 850nm over multimode fiber, it delivers reliable connectivity up to 100 meters, making it ideal for Brocade and compatible SAN switches and storage arrays in dense data center environments.
Key Specifications
| Item | Details |
|---|---|
| Brand | Brocade |
| Part Number | 57-1000294-02 |
| Form Factor | QSFP+ |
| Standard | 4x16Gbps Fibre Channel (64Gbps Total Bandwidth) |
| Wavelength | 850nm (Short Wavelength / SWL) |
| Fiber Type | Multimode Fiber (MMF) |
| Max Reach | Up to 100 meters over OM3 multimode fiber |
| Condition | Factory New, Sealed |
| Packaging | 1-pack |
| Warranty | 3 Years |
Key Features
✅ Brocade OEM Reliability
Factory-sealed, carrier-grade design engineered for continuous, error-free operation in mission-critical SAN environments.
✅ High-Density 4x16G Fibre Channel Performance
4-channel 16Gbps per channel design, delivering 64Gbps total bandwidth, optimized for high-density, high-performance storage networking applications.
✅ Multimode Fiber Compatibility
Designed for 850nm short wavelength operation, supporting up to 100 meters over OM3 multimode fiber, ideal for short-reach, high-density data center SAN deployments.
✅ Pull-Tab Design for Easy Installation
Comes with a black pull-tab, supporting hot-plugging for quick installation and replacement without disrupting operations.
✅ Fast Shipping & 3-Year Support
In stock for immediate dispatch, backed by a 3-year warranty for peace of mind.
Typical Applications
- High-density 64Gbps Fibre Channel SAN infrastructure deployments
- Brocade SAN switch and storage array upgrades
- Enterprise data center high-performance storage networking
- Connectivity between servers, switches, and storage devices in short-reach, high-density environments
Compatibility
This Brocade 57-1000294-02 transceiver is designed for use with 4x16Gbps Fibre Channel SAN equipment and works seamlessly with Brocade and compatible third-party switches that support 64Gbps short-wavelength QSFP+ transceivers.
Package Includes
- 1 × Brocade 57-1000294-02 4x16G SWL QSFP+ Fibre Channel Transceiver Module
- Factory-sealed packaging
- 3-year warranty service
