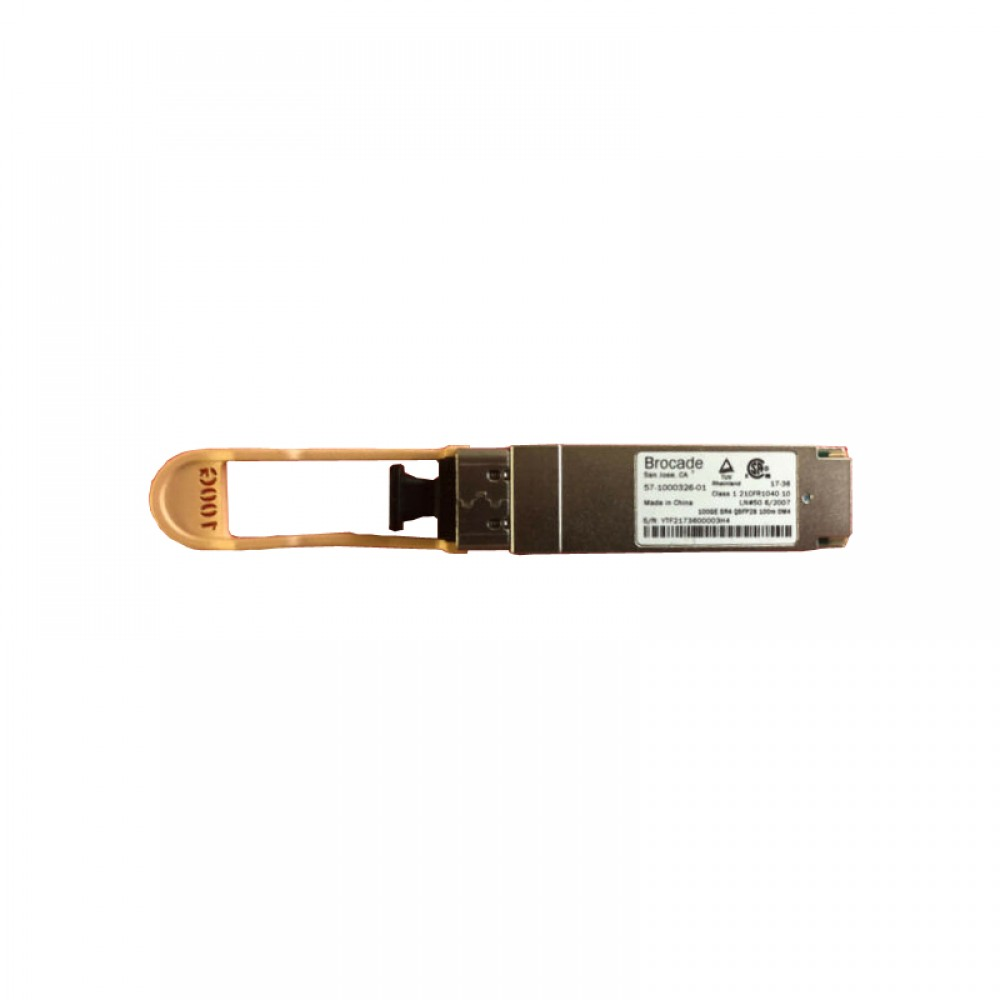

Brocade 57-1000326-01 100GBASE-SR4/4x25GbE QSFP+ Transceiver Module (1-pack)
¥3,130.00
促销价
¥3,130.00
常规价格
跳至产品信息
Key Specifications
Brocade 57-1000326-01 100GBASE-SR4/4x25GbE QSFP+ Transceiver Module (1-pack)
¥3,130.00
促销价
¥3,130.00
常规价格
Product Overview
The Brocade 57-1000326-01 is a factory-sealed, enterprise-grade 100GBASE-SR4 (100Gbps) / 4x25GbE dual-mode optical QSFP+ transceiver, purpose-built for high-performance, high-density 100 Gigabit and 25 Gigabit Ethernet connectivity over multimode fiber. Operating at 850nm with an MPO/MTP connector, it supports reliable connectivity up to 100 meters over OM3 multimode fiber and 150 meters over OM4 multimode fiber, making it ideal for Brocade switches and modern high-density data center environments requiring flexible, high-speed network links.
Key Specifications
| Item | Details |
|---|---|
| Brand | Brocade |
| Part Number | 57-1000326-01 |
| Form Factor | QSFP+ (Quad Small Form-factor Pluggable Plus) |
| Standard | 100GBASE-SR4 100 Gigabit Ethernet / 4x25GbE Ethernet (Dual-Mode) |
| Wavelength | 850nm (Short Wavelength) |
| Fiber Type | Multimode Fiber (MMF) |
| Connector Type | MPO/MTP |
| Max Reach | Up to 100m (OM3 MMF) / 150m (OM4 MMF) |
| Condition | Factory New, Sealed |
| Packaging | 1-pack |
| Warranty | 3 Years |
Key Features
✅Brocade OEM Reliability
Factory-sealed, carrier-grade design engineered for continuous, error-free operation in high-density data center and enterprise environments.
✅ Dual-Mode 100G/4x25G High-Performance Connectivity
Supports both 100GBASE-SR4 100 Gigabit Ethernet and 4x25GbE Ethernet modes, delivering flexible, high-bandwidth, low-latency connectivity for modern data center networks.
✅ Multimode Fiber Compatibility
Designed for 850nm short wavelength operation, supporting seamless integration with existing OM3/OM4 multimode fiber cabling infrastructure in modern data centers.
✅ MPO/MTP Connector Compatibility
Standard MPO/MTP connector for high-density, multi-fiber connections, ideal for parallel optical transmission in 100G/25G Ethernet data center environments.
✅ Hot-Pluggable Design
Supports hot-plugging for quick installation and replacement without disrupting switch operations.
✅ Fast Shipping & 3-Year Support
In stock for immediate dispatch, backed by a 3-year warranty for peace of mind.
Typical Applications
- High-density data center 100 Gigabit Ethernet short-reach deployments
- 4x25GbE Ethernet connectivity for high-speed server and switch links
- Connectivity between Top-of-Rack (TOR) switches and servers within the same or adjacent racks
- Brocade switch upgrades to add 100G/25G high-speed fiber ports
- Low-latency, high-speed connections in enterprise data center and cloud environments
- Short-haul fiber links in high-density network cabinets and data center pods
Compatibility
This Brocade 57-1000326-01 transceiver is designed for use with Brocade switches and compatible equipment that supports 100GBASE-SR4/4x25GbE multimode QSFP+ transceivers.
Package Includes
1 × Brocade 57-1000326-01 100GBASE-SR4/4x25GbE QSFP+ Transceiver Module
Factory-sealed packaging
3-year warranty service
