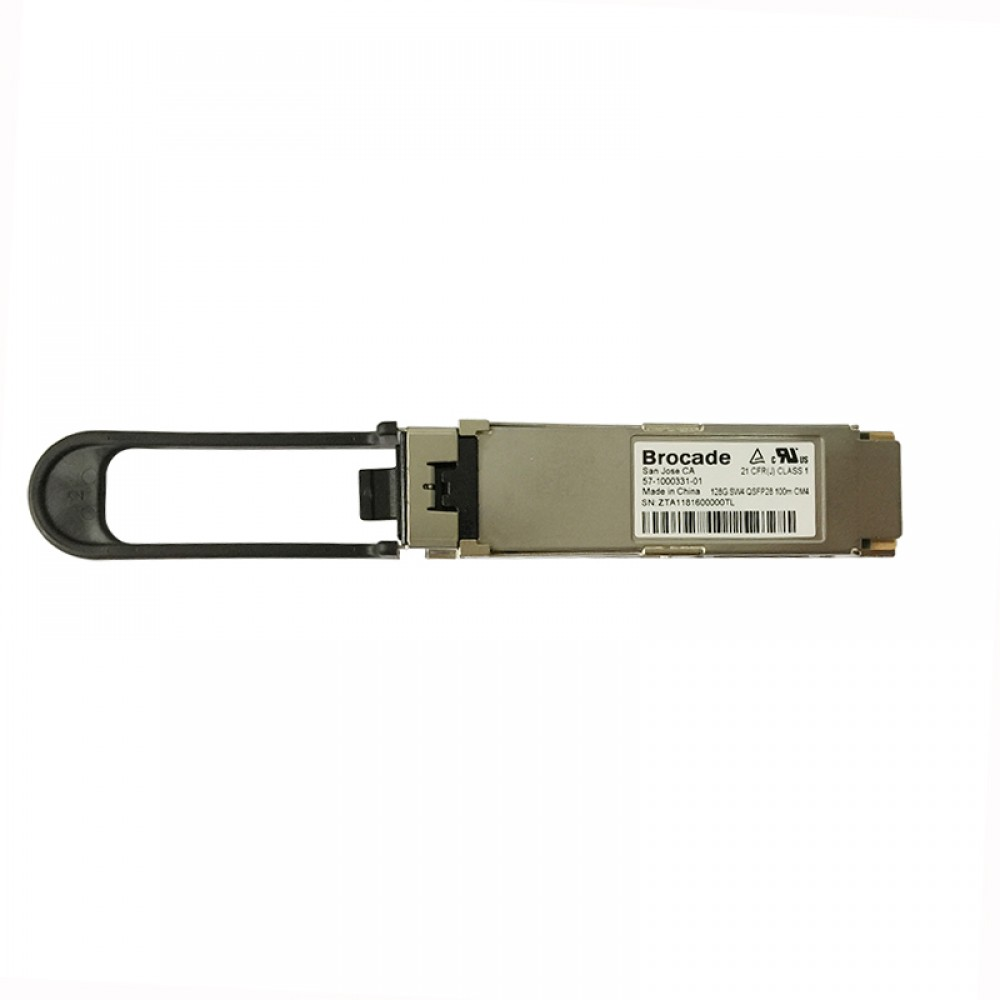

Brocade XBR-000268 128G (4x32Gb) SW4 QSFP28 100m OM4 Transceiver Module (1-pack)
¥8,380.00
促销价
¥8,380.00
常规价格
跳至产品信息
Key Specifications
Brocade XBR-000268 128G (4x32Gb) SW4 QSFP28 100m OM4 Transceiver Module (1-pack)
¥8,380.00
促销价
¥8,380.00
常规价格
Product Overview
The Brocade XBR-000268 is a factory-sealed, enterprise-grade 4x32Gbps (128Gbps total bandwidth) Short Wavelength (SW4) QSFP28 Fibre Channel transceiver, purpose-built for high-performance, short-reach storage networking. Operating at 850nm over OM4 multimode fiber, it delivers reliable connectivity up to 100 meters, making it ideal for Brocade X6 director-class SAN switches and high-density data center environments.
Key Specifications
| Item | Details |
|---|---|
| Brand | Brocade |
| Part Number | XBR-000268 (57-1000331-01) |
| Form Factor | QSFP28 |
| Standard | 4x32Gbps Fibre Channel (128Gbps Total Bandwidth) |
| Wavelength | 850nm (Short Wavelength / SW4) |
| Fiber Type | Multimode Fiber (OM4 MMF) |
| Max Reach | Up to 100 meters |
| Condition | Factory New, Sealed |
| Packaging | 1-pack |
| Warranty | 3 Years |
Key Features
✅Brocade OEM Reliability
Factory-sealed, carrier-grade design engineered for continuous, error-free operation in mission-critical SAN environments.
✅ High-Density 4x32G Fibre Channel Performance
4-channel 32Gbps per channel design, delivering 128Gbps total bandwidth, optimized for Brocade X6 director-class switches and next-generation high-density SAN deployments.
✅ OM4 Multimode Fiber Compatibility
Designed for 850nm short wavelength operation, supporting up to 100 meters over OM4 multimode fiber, ideal for high-density, short-reach data center SAN applications.
✅ Pull-Tab Design for Easy Installation
Comes with a black pull-tab, supporting hot-plugging for quick installation and replacement without disrupting operations.
✅ Fast Shipping & 3-Year Support
In stock for immediate dispatch, backed by a 3-year warranty for peace of mind.
Typical Applications
- Brocade X6 director-class switch 128Gbps Fibre Channel SAN deployments
- High-density 128Gbps Fibre Channel SAN infrastructure upgrades
- Enterprise data center high-performance storage networking
- Connectivity between servers, switches, and storage arrays in short-reach, high-density environments
Compatibility
This Brocade XBR-000268 transceiver is designed for use with Brocade X6 series director-class SAN switches and compatible 4x32Gbps Fibre Channel equipment, supporting 128Gbps short-wavelength QSFP28 transceivers.
Package Includes
1 × Brocade XBR-000268 128G (4x32Gb) SW4 QSFP28 100m OM4 Fibre Channel Transceiver Module
Factory-sealed packaging
3-year warranty service
