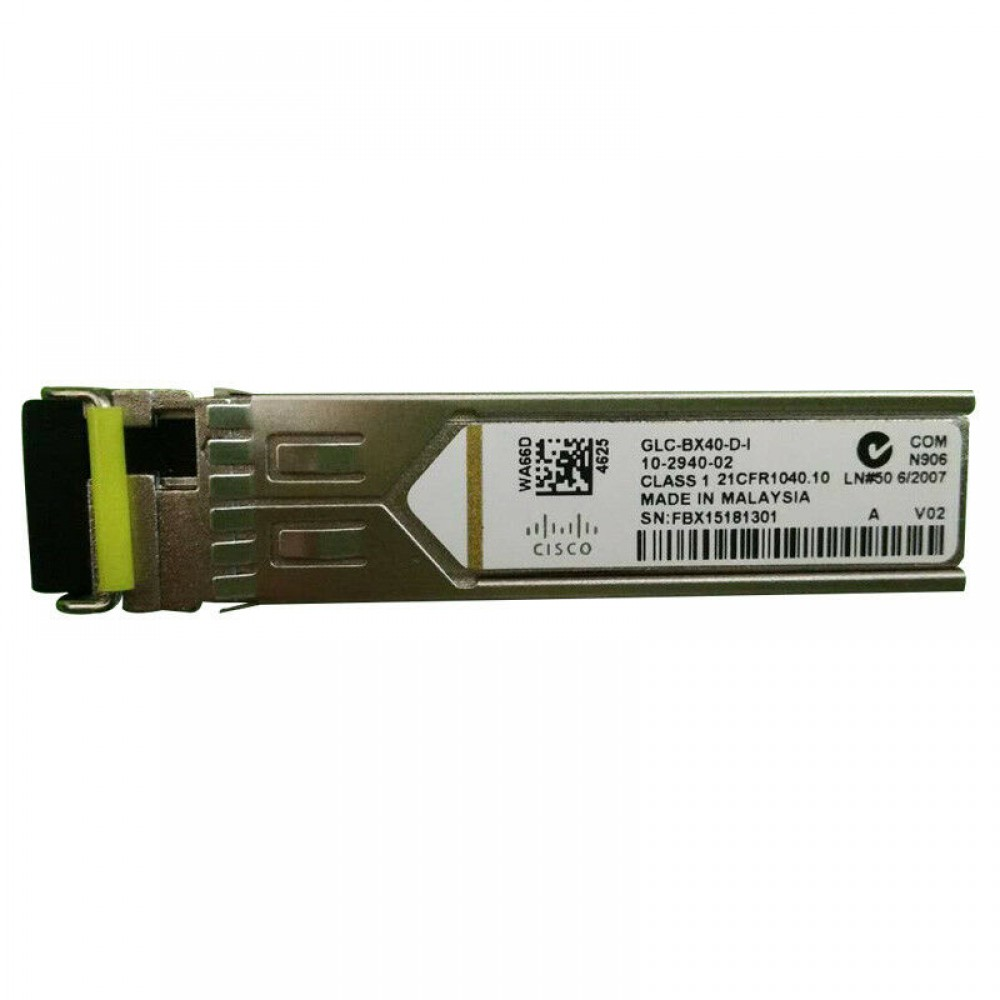

Cisco GLC-BX40-D-I 1000BASE-BX40-D BiDi Single-Fiber SFP Transceiver
¥3,180.00
促销价
¥3,180.00
常规价格
跳至产品信息
Key Specifications
Cisco GLC-BX40-D-I 1000BASE-BX40-D BiDi Single-Fiber SFP Transceiver
¥3,180.00
促销价
¥3,180.00
常规价格
Product Overview
Cisco GLC-BX40-D-I is OEM downstream industrial BiDi single-fiber gigabit SFP, single-core single-fiber bidirectional transmission, max transmission distance up to 40km, must be matched with GLC-BX40-U-I for end-to-end full-duplex link, built-in DOM digital optical monitoring function.
Key Specifications
| Item | Parameter |
|---|---|
| Brand | Cisco Original |
| PN | GLC-BX40-D-I |
| Alternate PN | 10-2940-02 |
| UPC | 882658632525 |
| Standard | 1000BASE-BX40-D |
| Rate | 1Gbps Gigabit |
| Fiber | Single-mode SMF, simplex single fiber |
| Wavelength | Tx:1550nm / Rx:1310nm |
| Matching Partner | GLC-BX40-U-I (Tx1310/Rx1550, paired exclusive) |
| Max Distance | 40 KM |
| Connector | LC Simplex |
| Feature | DOM real-time optical monitoring |
| Condition | Factory New Sealed |
| Warranty | 3 Years |
| Unit Price | USD 400 |
Core Features
✅ 40km Long-distance Single-fiber BiDi Design
Only one single fiber completes sending & receiving data, saves fiber resource, applicable for long haul point-to-point interconnection.
✅ Fixed Wavelength Pair Matching
D end transmit 1550 receive 1310; U end transmit1310 receive1550, two ends must use matched model.
✅ DOM Diagnostic Function
Monitor transmit/receive optical power, module temperature & supply voltage via Cisco IOS for daily troubleshooting.
✅ Hot Plug SFP Standard
Plug&play without powering off network device, convenient field maintenance replacement.
✅ Full Cisco IOS Native Compatibility
Compatible with Catalyst 2960/3560/3750, IE industrial switch & ISR router series.
Typical Application Scenarios
- Long-distance park/enterprise branch 40km single-fiber interconnection
- Rural remote monitoring, highway CCTV fiber transmission
- Telecom access network long-range FTTH deployment with limited fiber core
