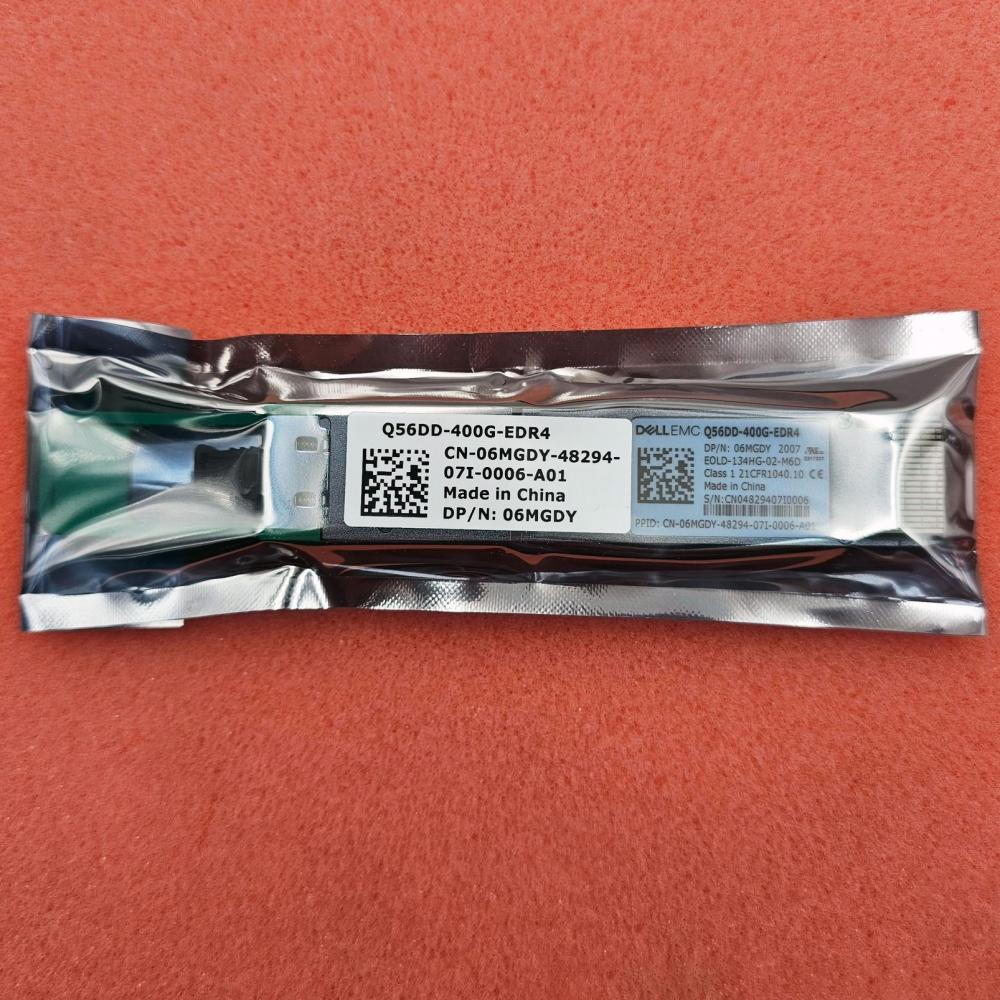

Dell 06MGDY QSFP-DD 400G EDR4 Single-Mode Optical Transceiver

Basic Parameter Table

Core Product Features

1.  Dell native QSFP-DD 400G medium-reach single-mode optical module, compatible with Dell high-end QSFP-DD leaf-spine data center switches and ultra-high density rack servers.
2. Adopts four-channel CWDM DFB parallel laser technology, fully compliant with IEEE 802.3cu 400G Ethernet standard, total aggregated bandwidth up to 400Gbps.
3. Stable 2km transmission over standard G.652 single-mode fiber via MPO 12-core ribbon connector, suitable for inter-building short metro links.
4. Built-in full per-channel DDM digital optical monitoring, real-time read Tx/Rx optical power, module internal temperature, laser bias current and supply voltage.
5. Hot-swappable plug-and-play design, optimized low-power laser chipset, excellent heat dissipation, supports 24/7 continuous stable operation for next-gen ultra-high bandwidth cloud fabric.
6. Standard medium-reach 400G solution for campus multi-building, park inter-data-center short-distance backbone interconnection.

Typical Application Scenarios

1. 400G high-speed interconnection between main data center and auxiliary computer room within 2km single-mode fiber range, campus multi-building core backbone uplink.
2. Large-scale HPC supercomputing cluster cross-room inter-switch links, distributed ultra-large storage fabric medium-distance interconnection.
3. Not applicable for intra-cabinet multi-mode short links and long-distance 10km+ single-mode transmission environments.
