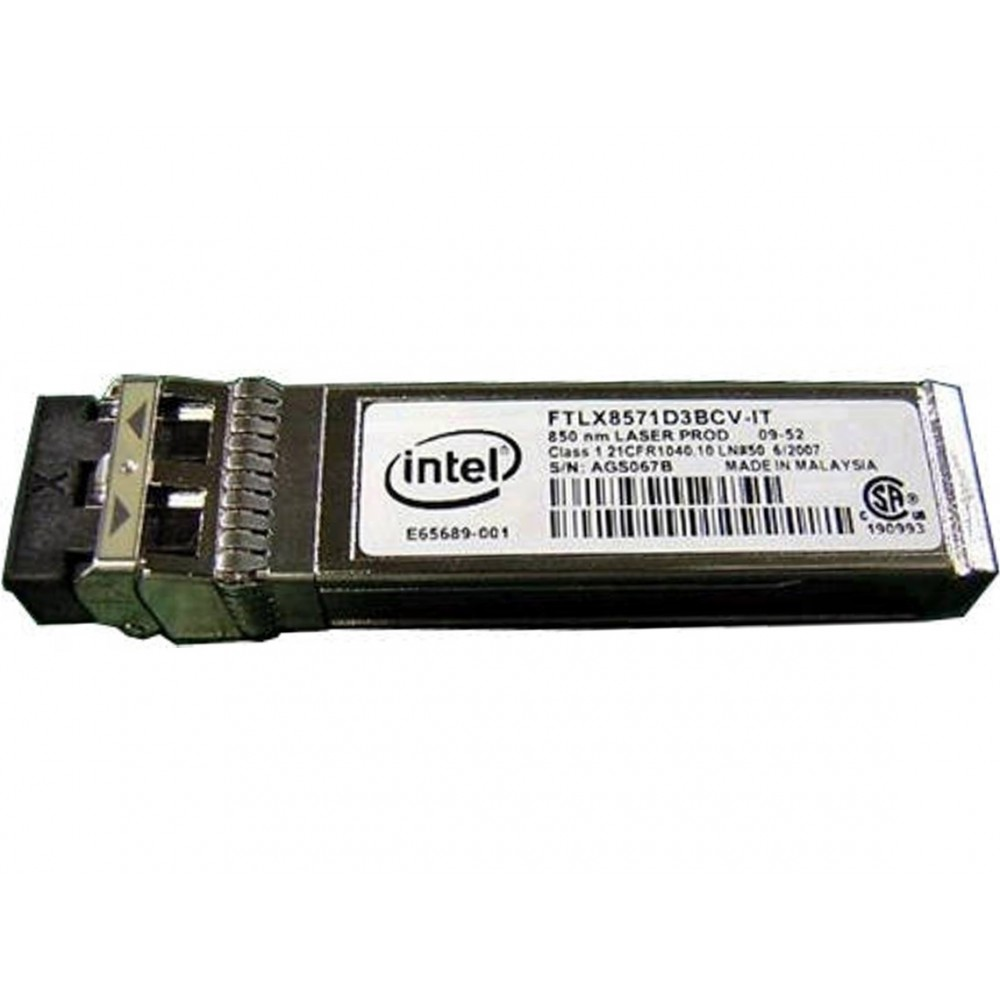

Dell 407-BBVJ SFP+ 10G SR Multi-Mode Optical Transceiver (Intel OEM)

Basic Parameter Table

Core Product Features

1. Dell Intel OEM 10G short-reach multi-mode SFP+ optical module, fully compatible with Dell PowerEdge Gen12/13/14 servers and Dell SFP+ enterprise switches.
2. 850nm VCSEL laser design compliant with IEEE 802.3ae 10GBASE-SR standard, supports 300m (OM3) / 400m (OM4) transmission via LC dual-port multi-mode ribbon fiber.
3. Hot-swappable SFP+ housing integrated with complete DDM digital diagnostic monitoring, real-time reading of each channel’s transmit/receive optical power, module internal temperature, laser bias current and supply voltage.
4. Low-power optimized chipset from Intel, excellent thermal performance, stable 24/7 non-stop operation in high-density rack cabinet environments.
5. 10G full-rate native parallel optical design, widely used for intra-data center cabinet short-distance high-speed interconnection.
6. Cost-effective short-reach multi-mode solution for leaf-spine data center, storage server SAN short-distance access.

Application Scenarios

1. Short-distance 10G high-speed interconnection between leaf and spine switches inside cloud data centers, SAN storage server intra-rack access within 400m OM4 multi-mode fiber range.
2. Enterprise multi-rack cabinet cluster networking, virtualization server high-speed uplink access.
3. Not suitable for long-distance single-mode fiber transmission and copper electrical wiring environments.
