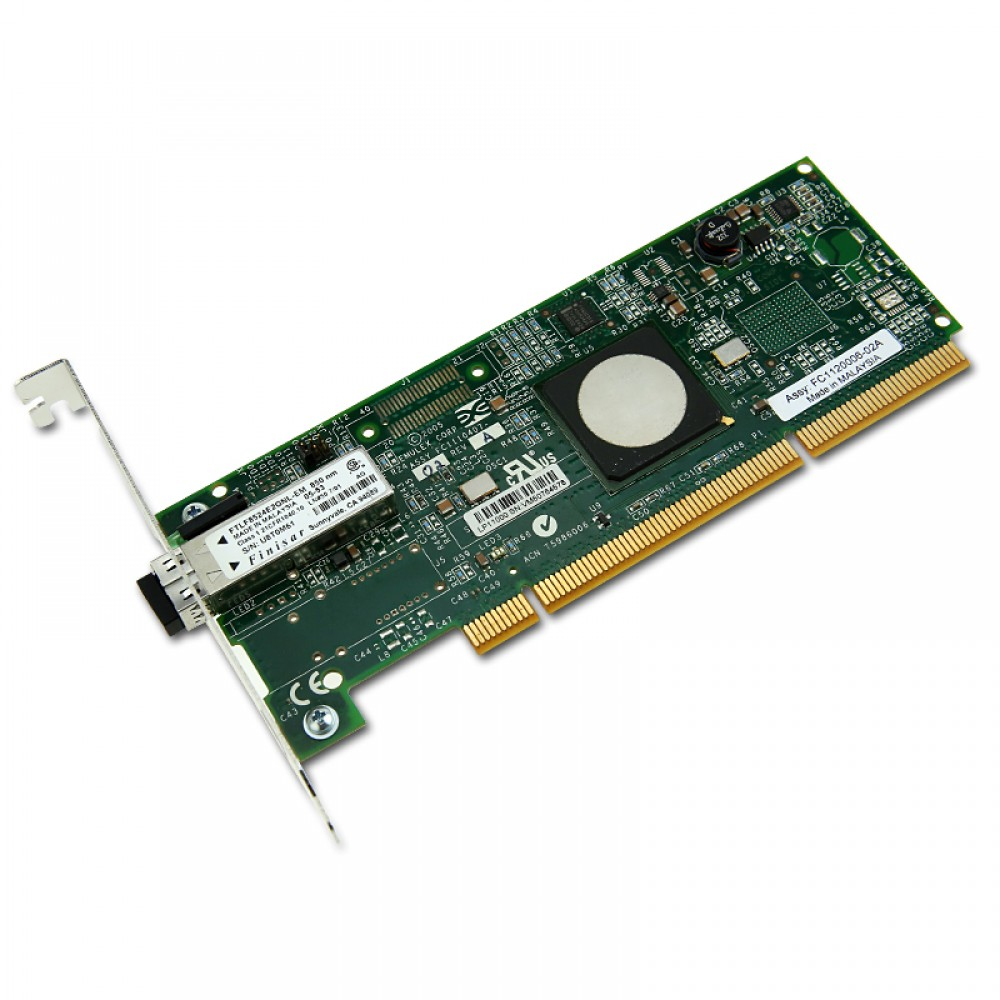

Emulex LP11000 Gen3 4GFC Single-Port PCI 2.0 Fibre Channel HBA Full English Datasheet
¥520.00
促销价
¥520.00
常规价格
跳至产品信息
Emulex LP11000 Gen3 4GFC Single-Port PCI 2.0 Fibre Channel HBA Full English Datasheet
¥520.00
促销价
¥520.00
常规价格
Basic Parameter Table
| Item | Details |
|---|---|
| Brand | Emulex |
| Part Number | LP11000 |
| Product Type | Fibre Channel Host Bus Adapter (HBA) |
| Generation | Gen 3 |
| Port Speed | 4GFC (4Gbps full-duplex Fibre Channel) |
| Port Count | Single Port |
| Host Bus Interface | PCI 2.0 (32-bit legacy PCI slot) |
| Fiber Port | Single SFP+ slot for FC optical transceivers |
| Form Factor | Full-height standard PCI adapter card, legacy long PCB layout |
| Cooling | On-chip passive cooling without independent external heat sink |
| Condition | Factory New Sealed Original |
| Stock Availability | In Stock |
| Delivery Lead Time | Typically within 2 business days |
| Official Warranty | 3-Year Global Warranty |
| Unit Price (USD) | $75.00 |
| Converted RMB Price (Exchange Rate 7.2, minus $20 shipping cost) | 75 × 7.2 = 540; 540 − 20 = 520 RMB |
Core Product Features
- Legacy Gen3 single-port 4G Fibre Channel HBA with standard PCI 2.0 32-bit bus, delivers stable 4G bidirectional storage bandwidth for ultra-old server platforms that only support PCI slots, legacy tape backup and archive storage systems.
- Fully compliant with FC-PI-3 Gen3 standard, backward interoperable with legacy 2G / 1G Fibre Channel switches and storage arrays, specially designed for retired industrial and early data center hardware renovation.
- Single independent SFP+ transceiver cage, compatible with standard 4G short-wave and long-wave FC optical transceivers to meet different fiber transmission distance demands.
- Compact integrated main control chip passive cooling design, no extra heat sink required, adopts full-length legacy PCI PCB layout, fits all standard 32-bit PCI expansion slots of early servers.
- Basic enterprise storage feature set: T10 DIF data integrity protection, multi-path I/O load balancing, NPIV virtual port technology, lightweight VM I/O offload; compatible with old Windows Server, Linux and early VMware ESXi versions.
- Standard full-height metal mounting bracket, hot-plug supported, fully certified for all vintage 32-bit x86 server platforms with PCI slots.
Typical Application Scenarios
- Ultra-old legacy server SAN reconstruction: early file archive servers, offline tape backup libraries, industrial control storage equipment with only PCI expansion slots.
- Low-budget test & development labs built on retired 32-bit workstations, non-production data archiving and temporary storage access.
- Small enterprise secondary disaster recovery auxiliary storage links for long-term static data archiving.
- Not suitable for modern PCIe server platforms and high-speed 8G/16G production storage networking; dedicated Fibre Channel transceivers are required for storage fiber links, cannot be used for Ethernet TCP/IP networks.
