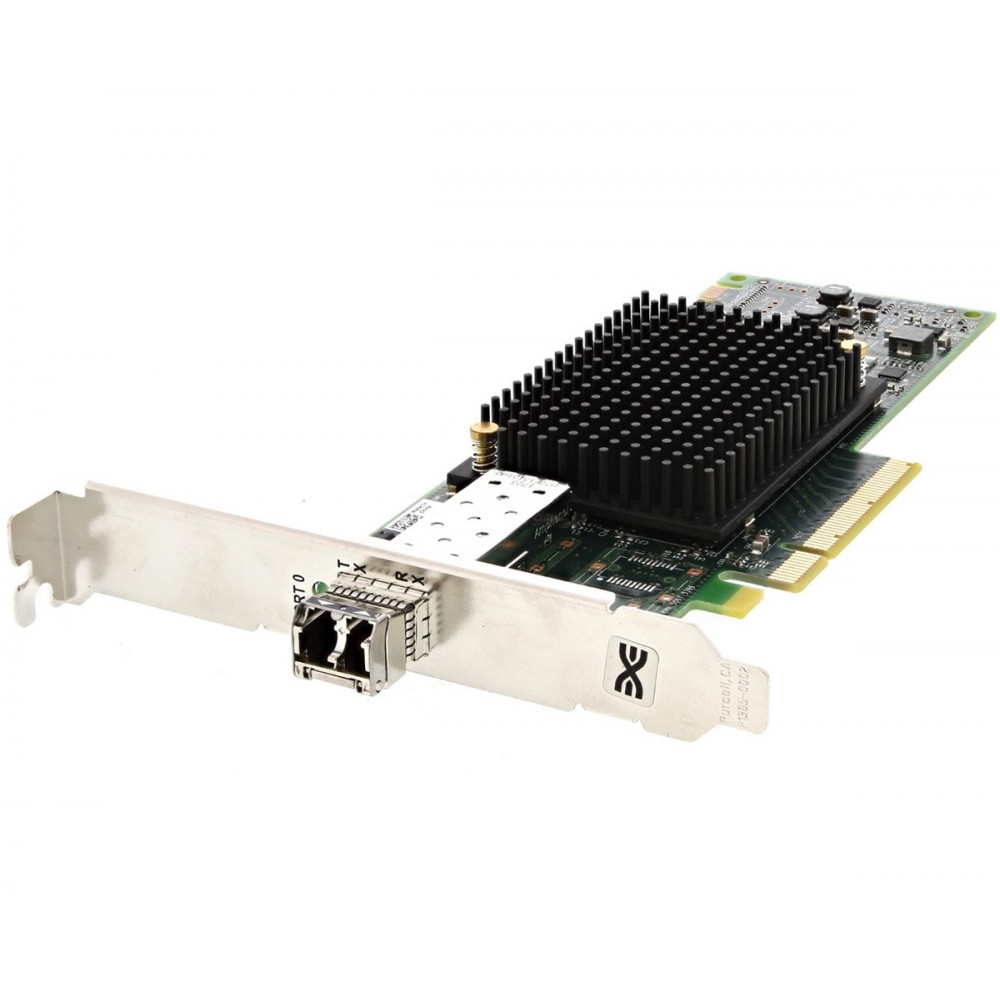

Emulex LPe31000 Gen6 16GFC Single-Port PCIe Fibre Channel HBA Full English Datasheet
¥3,868.00
促销价
¥3,868.00
常规价格
跳至产品信息
Emulex LPe31000 Gen6 16GFC Single-Port PCIe Fibre Channel HBA Full English Datasheet
¥3,868.00
促销价
¥3,868.00
常规价格
Basic Parameter Table
| Item | Details |
|---|---|
| Brand | Emulex |
| Part Number | LPe31000 |
| Product Type | Fibre Channel Host Bus Adapter (HBA) |
| Generation | Gen 6 |
| Port Speed | 16GFC (16Gbps full-duplex Fibre Channel) |
| Port Count | Single Port |
| Host Bus Interface | PCIe 3.0 x8 |
| Fiber Port | Single SFP+ slot for FC optical transceivers |
| Form Factor | Full-height standard PCIe adapter card |
| Cooling | Integrated passive pin-fin heat sink, fanless design |
| Condition | Factory New Sealed Original |
| Stock Availability | In Stock |
| Delivery Lead Time | Typically within 2 business days |
| Official Warranty | 3-Year Global Warranty |
| Unit Price (USD) | $540.00 |
| Converted RMB Price (Exchange Rate 7.2, minus $20 shipping cost) | 540 × 7.2 = 3888; 3888 − 20 = 3868 RMB |
Core Product Features
- Entry-level Gen6 single-port 16G Fibre Channel HBA, PCIe 3.0 x8 interface, delivers full 16Gbps bidirectional storage bandwidth for small & mid-size SAN environments.
- Compliant with FC-PI-6 Gen6 standard, backward interoperable with legacy 8G / 4G Fibre Channel SAN switches and storage arrays, supports low-cost storage fabric upgrade.
- Single SFP+ cage, compatible with industry-standard 16G short-wave and long-wave FC transceivers to match different fiber transmission distances.
- Fanless passive heat sink design, eliminates fan failure risk, stable continuous operation inside data center server racks with low noise.
- Basic enterprise storage feature set: T10 DIF/DIX end-to-end data integrity, multi-path I/O, NPIV virtual port technology, virtual machine I/O offload; compatible with Windows Server, Linux, VMware ESXi hypervisors.
- Standard full-height metal bracket, hot-plug capable, certified for mainstream x86 enterprise server platforms.
Typical Application Scenarios
- Small & mid-tier enterprise SAN construction: low-medium IO database servers, virtualization hosts, backup & disaster recovery storage links.
- Legacy storage network cost-effective upgrade, replacing older 8G HBAs to raise IO throughput for general business workloads.
- Virtualization cloud platforms, using NPIV to assign independent virtual storage ports to virtual machines.
- Not suitable for Ethernet TCP/IP networking; requires dedicated Fibre Channel optical modules for storage fiber connections.
