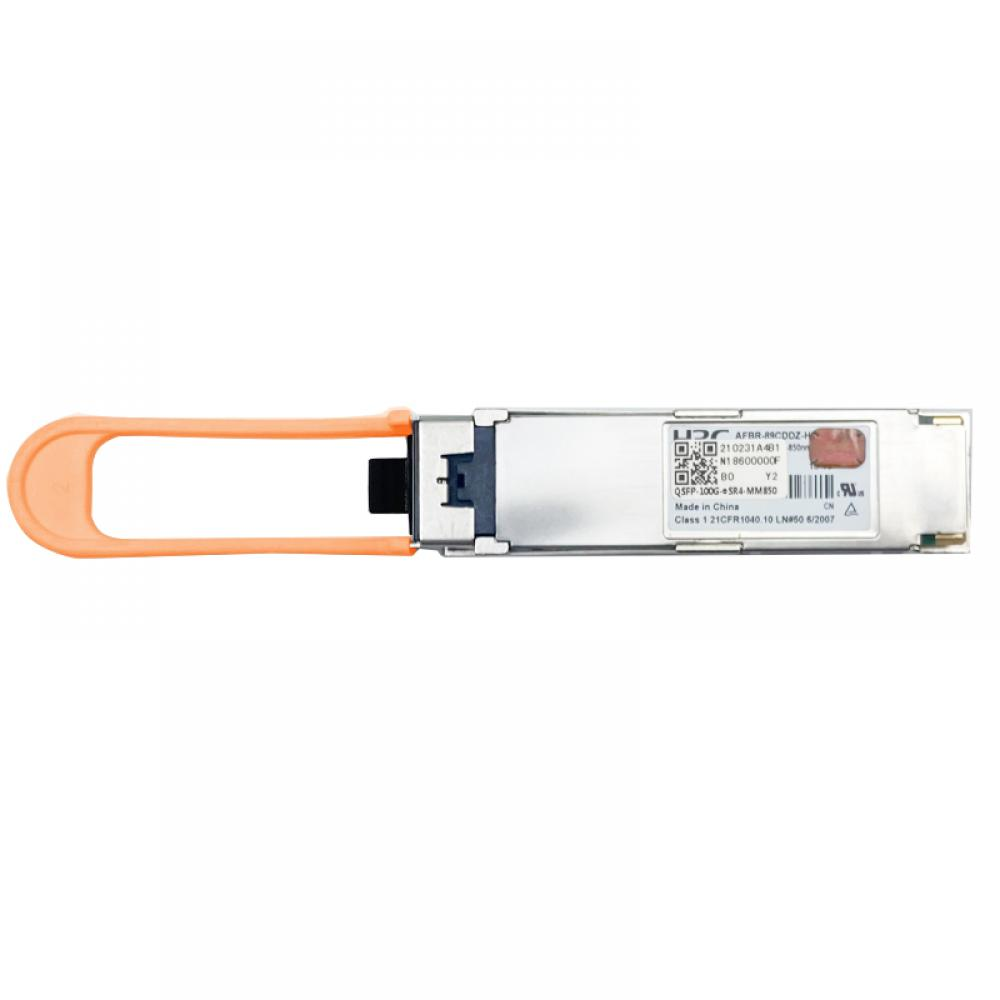

H3C QSFP-100G-eSR4-MM850 100GBASE-eSR4 QSFP28 850nm 300m MTP/MPO DOM MMF Optical Transceiver Full Datasheet

Basic Parameter Table

Core Product Features

1. Original H3C enhanced 100G eSR4 parallel multi-mode QSFP28 optical module, fully compatible with H3C S10500/S12700 series 100G leaf-spine data center switches.
2. Complies with 100G eSR4 parallel multi-mode MSA standard, 4-channel 850nm VCSEL laser array, stable 300m transmission over OM4 multi-mode fiber.
3. Built-in full DOM digital monitoring circuit, real-time monitoring of transmit/receive optical power, supply voltage, internal temperature and laser bias current for remote end-to-end link fault diagnosis.
4. Standard hot-swappable plug-and-play QSFP28 design with orange pull tab, no equipment power-off required during module replacement, convenient for data center daily O&M.
5. Metal sealed housing with optimized independent heat dissipation structure, excellent anti-electromagnetic interference performance, suitable for high-density leaf/spine rack deployment.
6. Cost-effective short-reach parallel multi-mode interconnection solution, widely used for intra-data center ToR switch 100G uplink aggregation.

Typical Application Scenarios

1. Intra-data-center leaf-spine architecture 100G switch interconnection within 300m OM4 multi-mode fiber coverage.
2. Top-of-Rack (ToR) access switch 100G uplink to aggregation layer.
3. High-performance computing (HPC) cluster short-distance 100G parallel fiber links.
4. Not applicable: single-mode long-distance transmission, 100G LR4 CWDM duplex LC single-mode, 200G/400G high-speed Ethernet.
