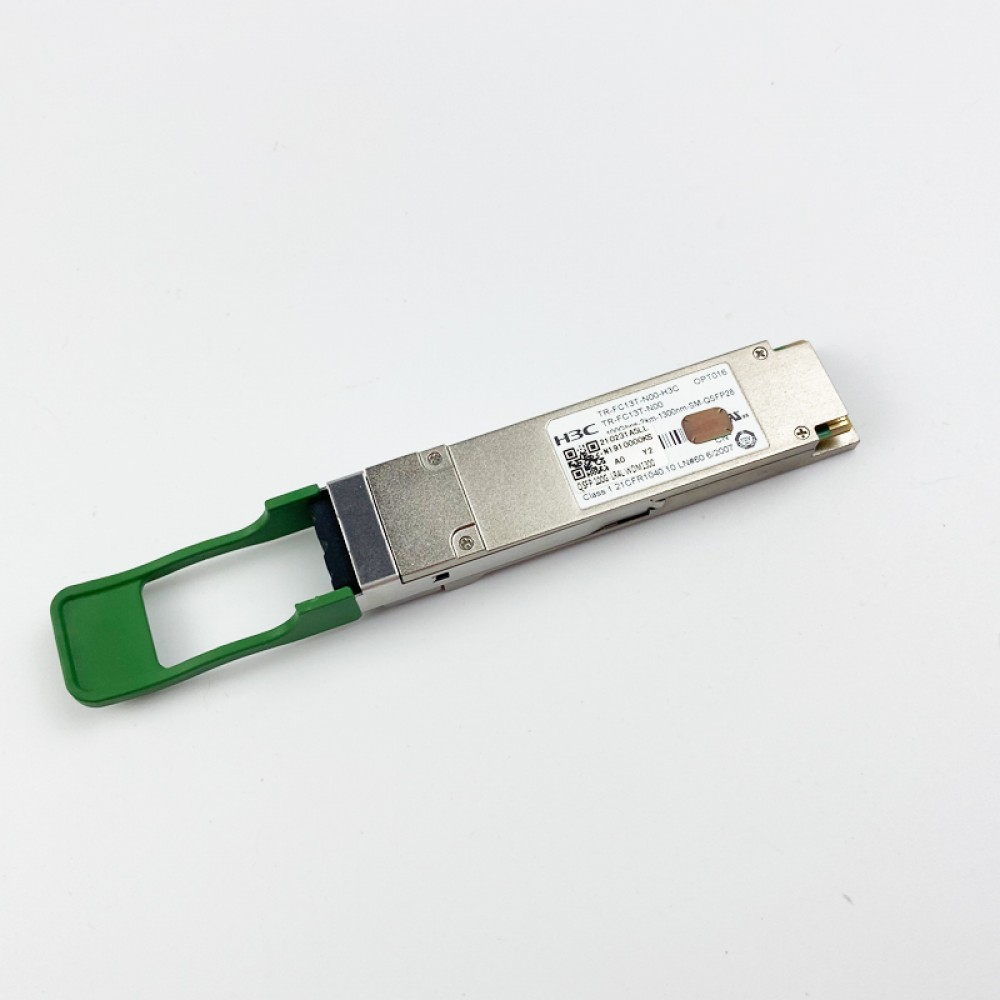

H3C QSFP-100G-LR4L-WDM1300 100G CWDM4 QSFP28 1310nm 2km DOM LC SMF Optical Transceiver Full Datasheet

Basic Parameter Table

Core Product Features

1. Original H3C short-reach 100G CWDM4 QSFP28 optical module, fully compatible with H3C S10500/S12700 series 100G data center switches and campus core routers.
2. Complies with IEEE 100G CWDM4 QSFP28 MSA standard, integrates 4-channel CWDM DFB laser array, stable 2km short-distance transmission over G.652 single-mode fiber.
3. Built-in full DOM digital monitoring circuit, real-time monitoring of transmit/receive optical power, supply voltage, internal temperature and laser bias current for remote link fault diagnosis.
4. Standard hot-swappable plug-and-play QSFP28 design with green pull tab, no equipment power-off required during replacement, easy for computer room daily O&M.
5. Metal sealed housing with optimized heat dissipation, excellent anti-electromagnetic interference performance, suitable for high-density rack deployment in data center core rooms.
6. Low-cost short-reach single-mode interconnection solution, widely used for intra-data center 100G aggregation, campus short cross-building backbone links.

Typical Application Scenarios

1. Intra-data center leaf-spine 100G switch interconnection within 2km single-mode fiber coverage.
2. Campus, park short cross-building 100G core aggregation links.
3. Medium enterprise short-distance multi-building 100G network convergence.
4. Not applicable: multi-mode short-reach transmission, 100G LR4 10km long-reach module, 200G/400G high-speed Ethernet.
