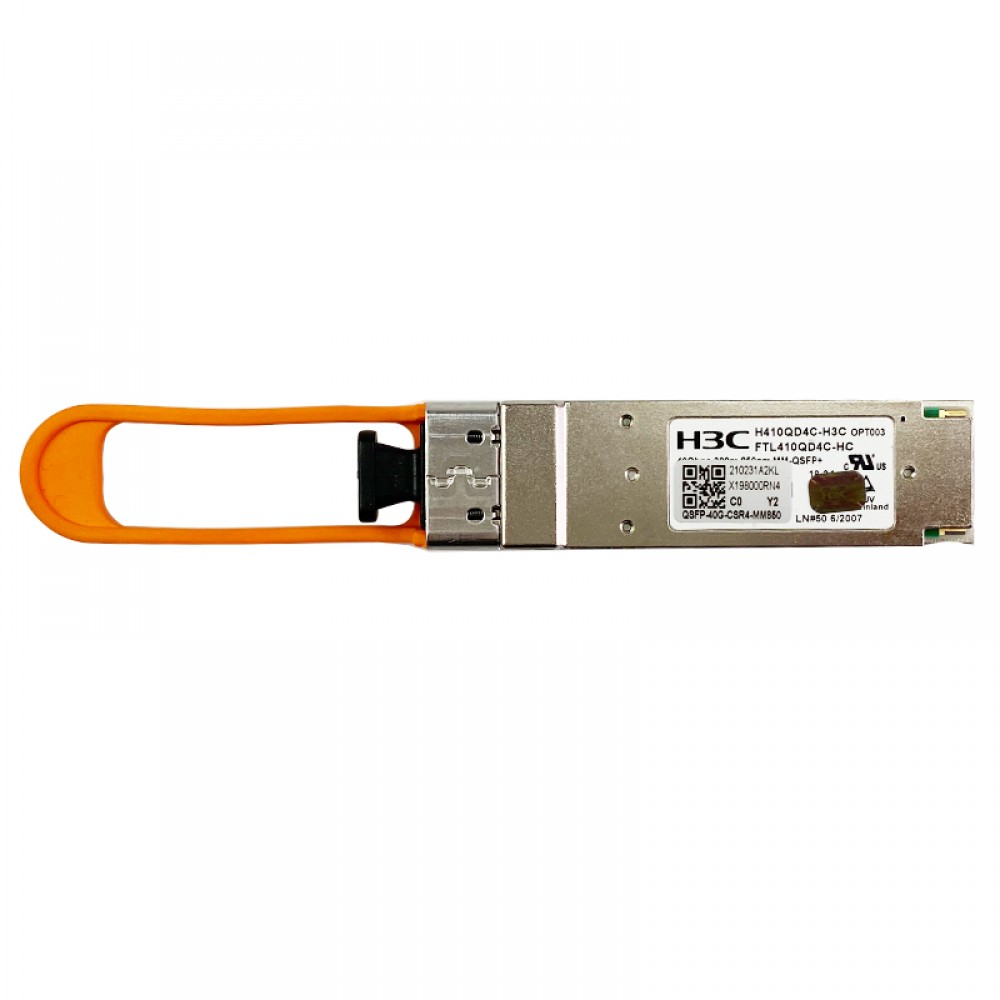

H3C QSFP-40G-CSR4-MM850 40GBASE-CSR4 QSFP+ 850nm 400m MTP/MPO DOM MMF Optical Transceiver Full Datasheet
¥1,850.00
促销价
¥1,850.00
常规价格
跳至产品信息
H3C QSFP-40G-CSR4-MM850 40GBASE-CSR4 QSFP+ 850nm 400m MTP/MPO DOM MMF Optical Transceiver Full Datasheet
¥1,850.00
促销价
¥1,850.00
常规价格
Basic Parameter Table
| Item | Details |
|---|---|
| Brand | H3C |
| Part Number | QSFP-40G-CSR4-MM850 |
| Standard | 40GBASE-CSR4 QSFP+ Optical Transceiver |
| Rate | 40Gbps parallel 4×10G NRZ |
| Wavelength | 850nm VCSEL array |
| Fiber Type | Multi-Mode Fiber (MMF) |
| Max Distance | 400m over OM4 multi-mode fiber |
| Monitoring | DOM Digital Optical Monitoring |
| Connector | MTP/MPO-12 female |
| Form Factor | Hot-pluggable QSFP+ |
| Condition | Factory New Sealed Original |
| Stock Status | In Stock |
| Lead Time | 2 business days |
| Warranty | 3 Years |
| Unit Price (USD) | $260.00 |
| RMB Price (7.2 exchange, minus $20 shipping) | 260 × 7.2 = 1872; 1872 − 20 = 1852 RMB |
Core Product Features
- Original H3C 40G parallel multi-mode QSFP+ module, fully compatible with H3C S6520/S6800/S10500 series 40G data center switches.
- Complies with IEEE 802.3ba 40GBASE-CSR4 & QSFP+ MSA, 4-channel 850nm VCSEL array, stable 400m transmission on OM4 multi-mode fiber.
- Built-in full DOM monitoring: real-time Tx/Rx optical power, supply voltage, laser bias, internal temperature for remote link troubleshooting.
- Hot-swappable QSFP+ housing with orange pull tab for easy field replacement without powering down switches.
- Metal sealed housing with optimized thermal design, strong anti-EMI interference, suitable for high-density leaf/spine data center racks.
- Cost-effective short-reach 40G parallel optical solution for intra-data center server/storage aggregation.
Typical Application Scenarios
- Leaf-spine data center 40G switch interconnection within 400m OM4 multi-mode fiber.
- 40G uplink for top-of-rack (ToR) switches to aggregation layer.
- High-performance computing (HPC) cluster short-distance 40G parallel fiber links.
- Not applicable: single-mode long-distance transmission, 100G Ethernet, OM1/OM2 low-grade multi-mode fiber.
