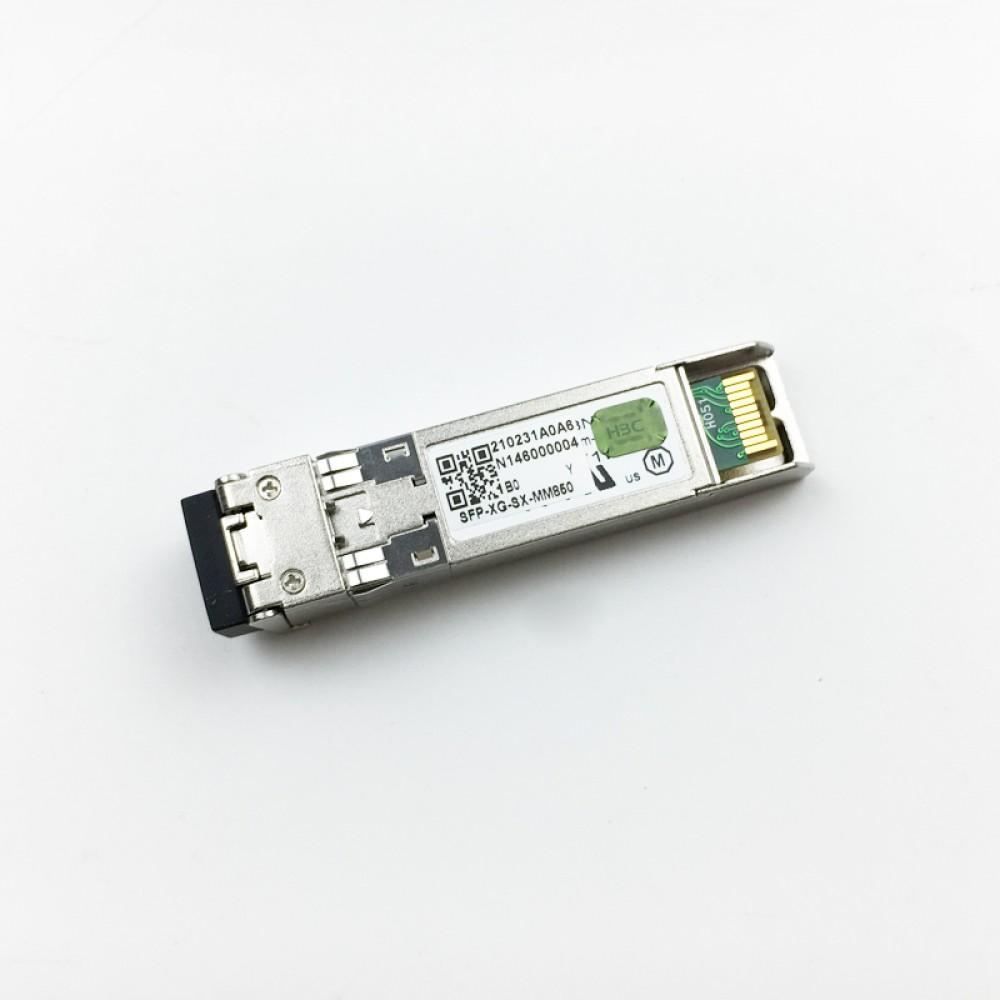

H3C SFP-XG-SX-MM850 10GBASE-SR SFP+ 850nm 300m LC MMF Transceiver Module Full English Datasheet

Basic Parameter Table

Core Product Features

1. Original H3C enterprise-grade 10G multi-mode short-reach SFP+ module, fully compatible with H3C S5560/S6520/S6800 series 10G switches, firewalls and storage servers.
2. Complies with IEEE 802.3ae 10GBASE-SR & SFP+ MSA standard, adopts low-power 850nm VCSEL laser, stable 300m transmission over OM3 multi-mode fiber.
3. Built-in DOM digital optical monitoring circuit, real-time monitoring of Tx/Rx optical power, supply voltage, chip temperature and bias current for rapid fault diagnosis.
4. Standard hot-swappable plug-and-play SFP+ design, no equipment power-off required during replacement, simplifies intra-data-center network maintenance.
5. Compact metal housing with integrated heat dissipation channel, excellent anti-electromagnetic interference capability, suitable for high-density cabinet deployment in indoor computer rooms.
6. Cost-effective short-distance multi-mode interconnection solution, widely used in intra-data-center server and access switch interconnection.

Typical Application Scenarios

1. Intra-data center server and access switch interconnection within 300m OM3 multi-mode fiber coverage.
2. Office building, campus local area network short-distance 10G fiber aggregation.
3. Not applicable for single-mode long-distance transmission and high-speed 25G/100G Ethernet scenarios.
