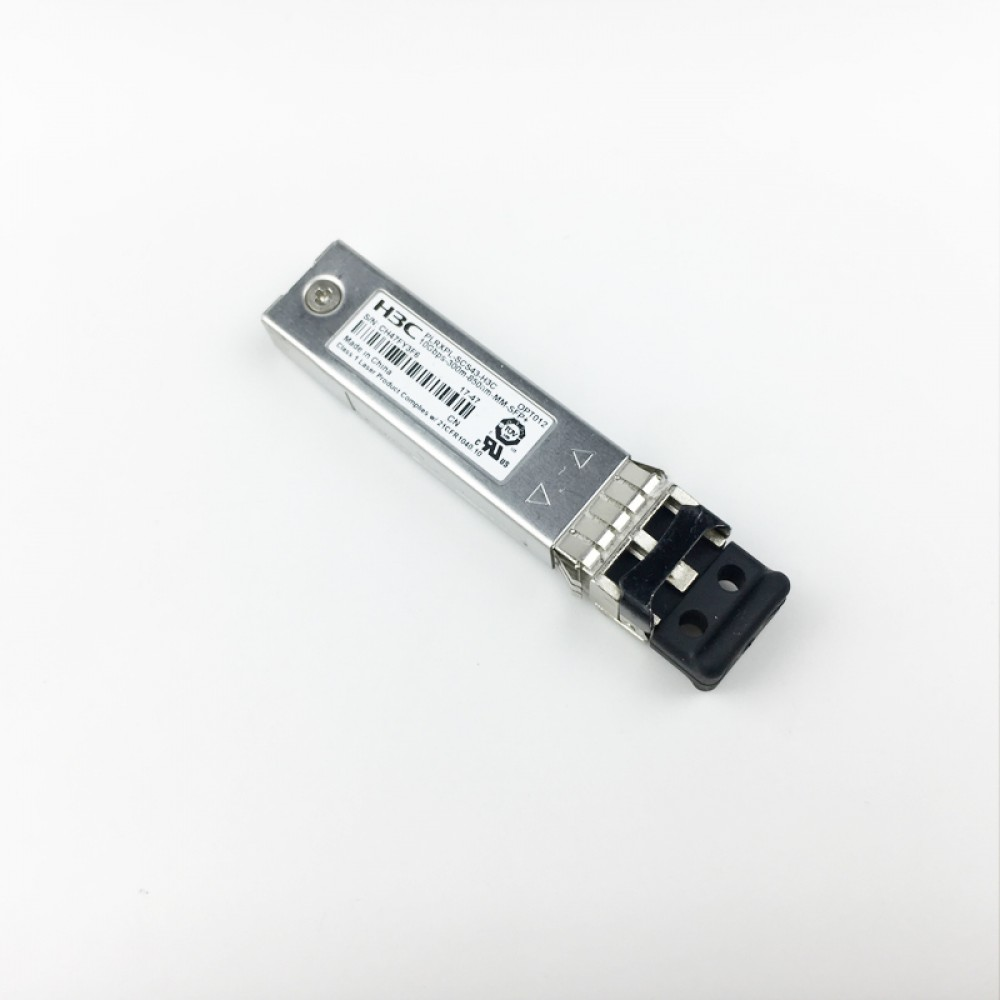

H3C UN-SFP-XG-SX-MM850-E1 10GBASE-SR SFP+ 850nm 300m DDM LC MMF Transceiver Module Full English Datasheet

Basic Parameter Table

Core Product Features

1. Original H3C universal 10G multi-mode short-reach SFP+ module, fully compatible with H3C S5560/S6520/S6800 series 10G enterprise switches, firewalls and storage servers.
2. Complies with IEEE 802.3ae 10GBASE-SR & SFP+ MSA standard, low-power 850nm VCSEL laser, stable 300m transmission over OM3 multi-mode fiber.
3. Built-in DDM digital diagnostic monitoring circuit, real-time monitoring of transmit/receive optical power, supply voltage, chip temperature and laser bias current for remote fault diagnosis.
4. Standard hot-swappable plug-and-play SFP+ design, no equipment power-off required during replacement, simplifies data center daily operation and maintenance.
5. Wide operating temperature range 0℃~+70℃, compact metal sealed housing with integrated heat dissipation, excellent anti-electromagnetic interference capability, suitable for indoor computer room high-density cabinet deployment.
6. Cost-effective short-distance multi-mode interconnection solution, widely used in intra-data-center server and access switch interconnection.

Typical Application Scenarios

1. Intra-data-center server, storage and access switch interconnection within 300m OM3 multi-mode fiber coverage.
2. Office building, campus local area network short-distance 10G fiber aggregation.
3. Not applicable for single-mode long-distance transmission and 25G/100G high-speed Ethernet scenarios.
