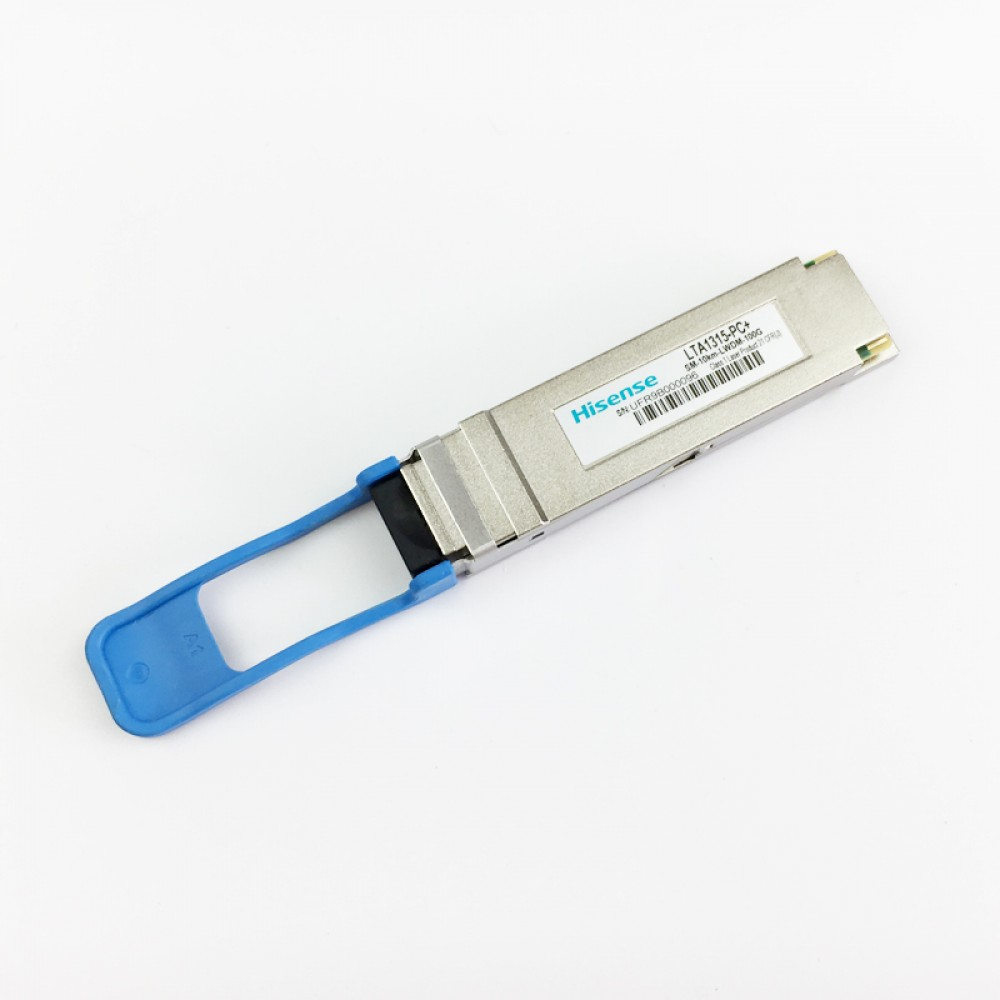

Hisense LTA1315-PC+ 100G 1310nm 10km QSFP28 Optical Transceiver Full Datasheet
¥10,420.00
促销价
¥10,420.00
常规价格
跳至产品信息
Hisense LTA1315-PC+ 100G 1310nm 10km QSFP28 Optical Transceiver Full Datasheet
¥10,420.00
促销价
¥10,420.00
常规价格
Basic Parameter Table
| Item | Details |
|---|---|
| Brand | Hisense (海信) |
| Part Number | LTA1315-PC+ |
| Standard | 100GBASE-LR4 QSFP28 Single-Mode Optical Module |
| Rate | 100Gbps (4×25Gbps lanes) |
| Wavelength | 1310nm CWDM 4-channel DFB laser array |
| Fiber Type | G.652 Standard Single-Mode Fiber (SMF) |
| Max Transmission Distance | 10km over single-mode fiber |
| Monitoring Function | DDM Digital Diagnostic Monitoring supported |
| Connector | Duplex LC UPC (blue pull tab) |
| Form Factor | Hot-pluggable QSFP28 |
| Condition | Factory New Sealed Original |
| Stock Status | In Stock |
| Delivery Lead Time | Typically within 2 business days |
| Warranty Term | 3-Year Official Warranty |
| Unit Price (USD) | $1450.00 |
| Converted RMB Price (Exchange Rate 7.2, minus $20 shipping cost) | 1450 × 7.2 = 10440; 10440 − 20 = 10420 RMB |
Core Product Features
- Original Hisense high-end data center 100G LR4 QSFP28 optical module, fully compliant with IEEE 802.3bm 100GBASE-LR4 MSA standard, mainstream 100G switch/router dedicated module.
- Adopts 4-channel 1310nm CWDM DFB laser, four 25G parallel electrical lanes aggregated to 100G, stable 10km medium-distance single-mode fiber transmission.
- Built-in comprehensive DDM digital monitoring circuit, real-time monitoring of transmit optical power, receive optical power, supply voltage, internal temperature and laser bias current for data center remote O&M fault diagnosis.
- Hot-swappable plug-and-play QSFP28 packaging with blue pull tab, no equipment power-off required during replacement, convenient for core data center cabinet maintenance.
- Precision metal sealed housing with independent multi-channel heat dissipation design, excellent anti-electromagnetic interference and high-temperature stability, suitable for large cloud data center core interconnection.
- Standard 100G medium-reach single-mode interconnection solution, widely used for campus core network, enterprise data center cross-building 100G backbone, operator 100G access aggregation equipment.
Typical Application Scenarios
- Cloud data center core switch cross-rack 100G interconnection within 10km single-mode fiber coverage.
- Large enterprise cross-building 100G backbone private line transmission.
- Telecom operator 100G access layer aggregation equipment uplink interconnection.
- Not applicable for multi-mode short-reach transmission, 40G/200G/400G optical modules, BiDi single-fiber bidirectional transceivers.
