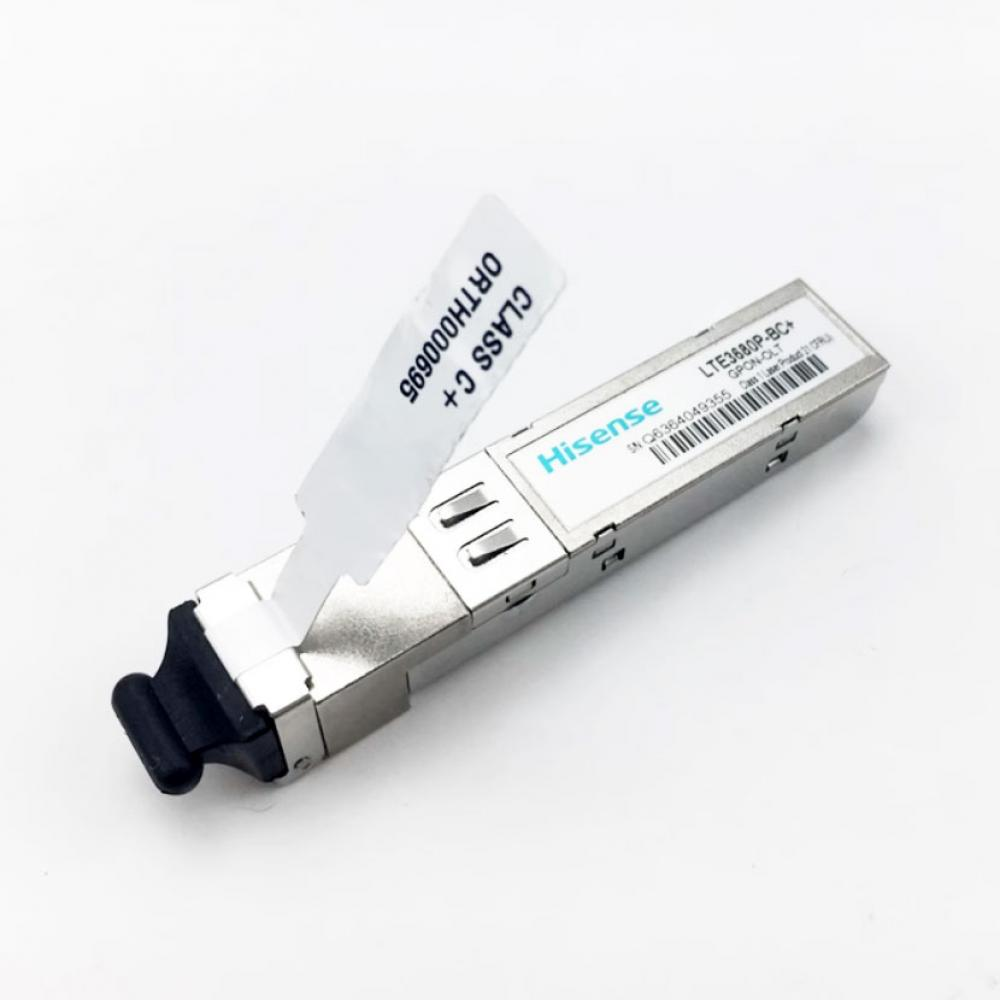

Hisense LTE3680P-BC+ GPON OLT Class C+ SFP Optical Transceiver Full Datasheet

Basic Parameter Table

Core Product Features

1. Original Hisense telecom-grade GPON OLT dedicated SFP optical module, Class C+ high optical power budget, supports larger optical split ratio, matched with GPON ONU B+/C+/C++ modules for carrier FTTH GPON broadband access network.
2. Complies with ITU-T G.984 GPON standard, single-fiber bidirectional wavelength division multiplexing: OLT transmits 1490nm downstream data, receives 1310nm upstream signal from ONU, stable 20km coverage over G.652 fiber.
3. Built-in full DDM digital diagnostic monitoring circuit, real-time reading of transmit optical power, receive optical power, supply voltage, internal temperature and laser bias current for remote PON network O&M fault location.
4. Hot-swappable plug-and-play SFP packaging with SC interface pull tab, no equipment power-off required during replacement, easy maintenance for central office GPON OLT service boards.
5. All-metal sealed telecom housing with optimized laser drive circuit, excellent heat dissipation and anti-electromagnetic interference performance, suitable for communication equipment rooms and outdoor communication cabinets long-term stable operation.
6. High-power Class C+ GPON OLT optical module, widely deployed in rural long-distance broadband, large residential community GPON access equipment OLT side.

Typical Application Scenarios

1. Telecom operator FTTH residential & rural broadband GPON OLT equipment, supporting high split ratio deployment within 20km single-mode fiber.
2. Industrial park, campus FTTO desktop GPON high-speed dedicated line access OLT side uplink.
3. Intelligent community, high-definition security monitoring GPON long-distance data transmission OLT equipment.
4. Not applicable: EPON/10G PON equipment, ONU-side optical modules, symmetrical dual-fiber Ethernet transceivers.
