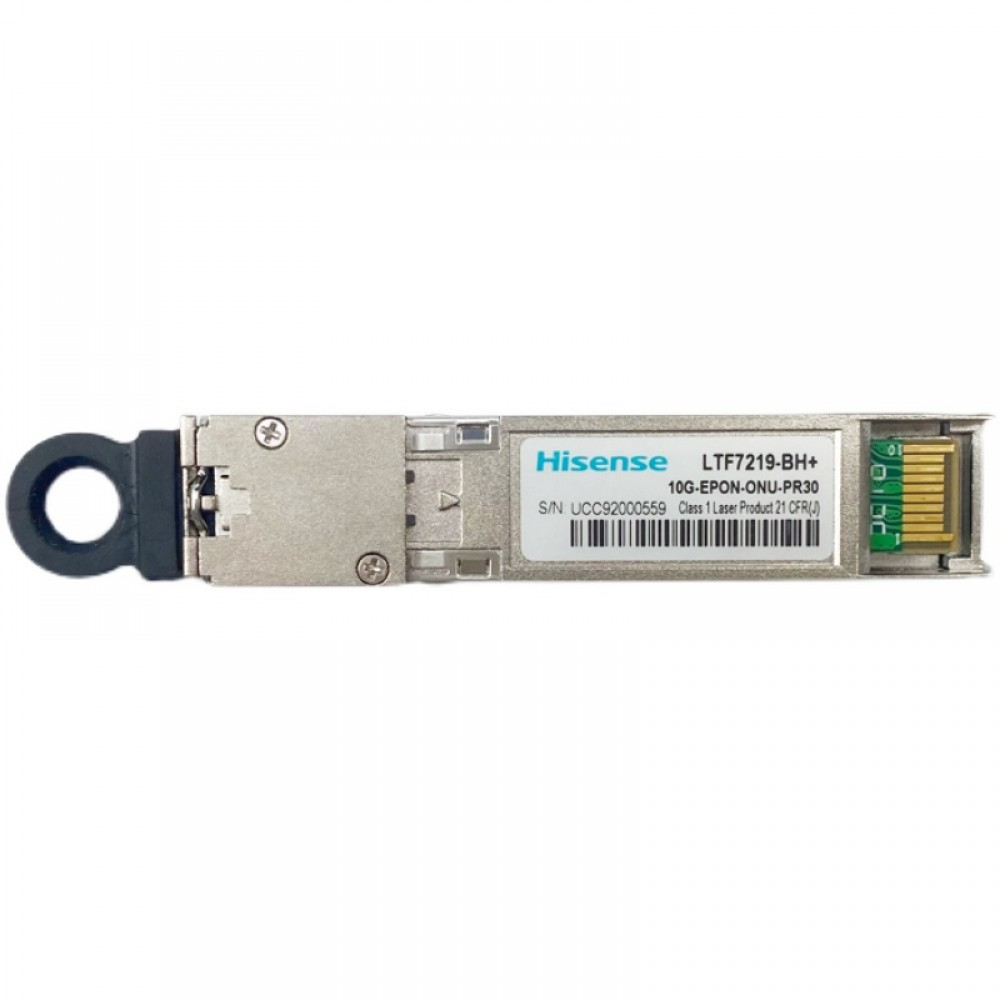

Hisense LTF7219-BH+ 10G EPON ONU PR30 SFP+ Optical Transceiver Full Datasheet

Basic Parameter Table

Core Product Features

1. Original Hisense telecom-grade 10G EPON ONU dedicated SFP+ optical module, PR30 high optical power budget, matched with PX30 OLT for operator 10G EPON FTTH high-speed broadband network.
2. Complies with IEEE 802.3av 10G EPON standard, single fiber bidirectional WDM: ONU transmits 1310nm upstream signal, receives 1577nm 10G high-speed downstream data, stable 20km long-distance coverage.
3. Built-in full DDM digital diagnostic monitoring circuit, real-time reading of transmit optical power, receive optical power, supply voltage, internal temperature and laser bias current for remote PON network operation & maintenance fault location.
4. Hot-swappable plug-and-play SFP+ packaging with special pull ring, no equipment power-off required during replacement, convenient for industrial SFP+ ONU switches and 10G PON access terminal maintenance.
5. All-metal sealed compact telecom housing, optimized laser drive circuit, excellent heat dissipation and anti-electromagnetic interference performance, suitable for outdoor communication cabinets, community FTTH 10G broadband and industrial park FTTO dedicated line terminals.
6. Standard pluggable 10G EPON ONU optical module solution, used for custom SFP+ ONU switches, industrial 10G PON terminals, replacing integrated fixed ONU optical components.

Typical Application Scenarios

1. Telecom operator FTTH residential 10G EPON broadband access SFP+ ONU switch equipment.
2. Industrial park, campus FTTO desktop 10G EPON high-speed dedicated line access terminal.
3. Intelligent community, high-definition security monitoring 10G PON long-distance data collection terminal.
4. Not applicable: GPON/EPON OLT modules, symmetrical dual-fiber Ethernet optical modules, ordinary 1G EPON ONU transceivers.
