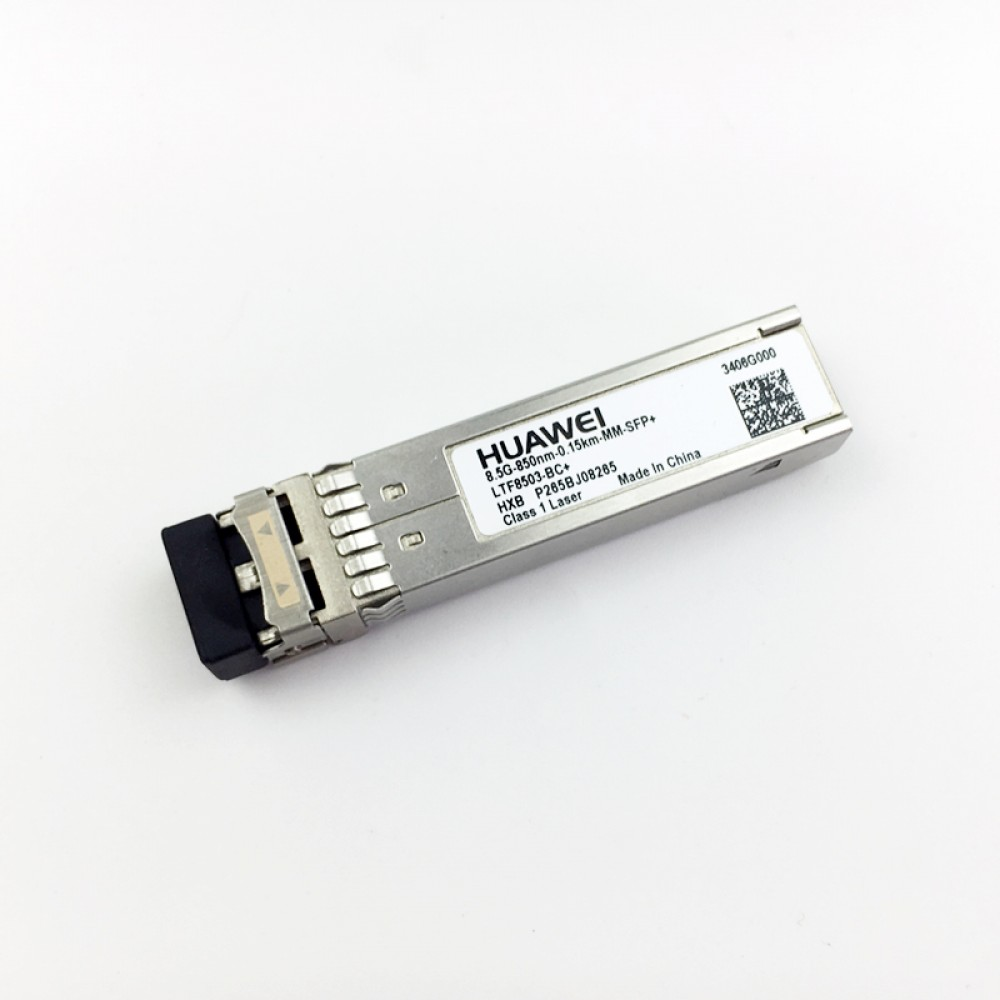

Huawei 8.5G SFP+ 150m Multimode Optical Module PN:3406G000
¥300.00
促销价
¥300.00
常规价格
Product Overview
8.5G SFP+ short-reach multimode dual-fiber optical transceiver, PN 3406G000, model LTF8503-BC+. 850nm TX/RX wavelength, duplex LC multimode fiber interface, max transmission distance 0.15km (150m) over OM3 multimode fiber, widely used for data center 8G SAN storage short-distance interconnection.
Key Specifications
| Item | Parameter |
|---|---|
| Brand | Huawei |
| PN | 3406G000 (Model: LTF8503-BC+ / 8.5G-850nm-0.15km-MM-SFP+) |
| Form Factor | SFP+ Duplex LC Dual Fiber Multimode |
| Rate | 8.5Gbps SAN |
| Wavelength | 850nm TX/RX |
| Transmit Optical Power | -8.2dBm ~ -1.3dBm |
| Receiver Sensitivity | -11.2dBm |
| Max Distance | 150m / 0.15km OM3 Multimode Fiber |
| Fiber Type | Multimode MMF |
| Laser Class | Class 1 Laser |
| Origin | Made in China |
| Condition | Factory New Sealed |
| Stock Status | In Stock |
| Delivery Lead Time | Within 2 Business Days |
| Warranty | 3 Years Official Factory Warranty |
| Unit Price | $45.00 |
Core Features
✅ Low-cost 850nm SX multimode scheme, stable 150m ultra-short transmission inside storage cabinets
✅ Standard hot-swappable SFP+ packaging, plug-and-play, fully compatible with Huawei storage switches
✅ Duplex LC optical port, matched with standard OM3 multimode jumpers for rack cross-row wiring
✅ Low power consumption chip, suitable for high-density SAN cabinet deployment
✅ Standardized optical power indexes, low bit error rate for short multimode links
✅ Global spot inventory, fast worldwide delivery, 3-year original factory quality warranty
Application Scenarios
Data center 8G SAN storage equipment internal interconnection, enterprise storage area network short access, IDC cabinet local linkage, old multimode storage equipment reconstruction.
