Product Overview

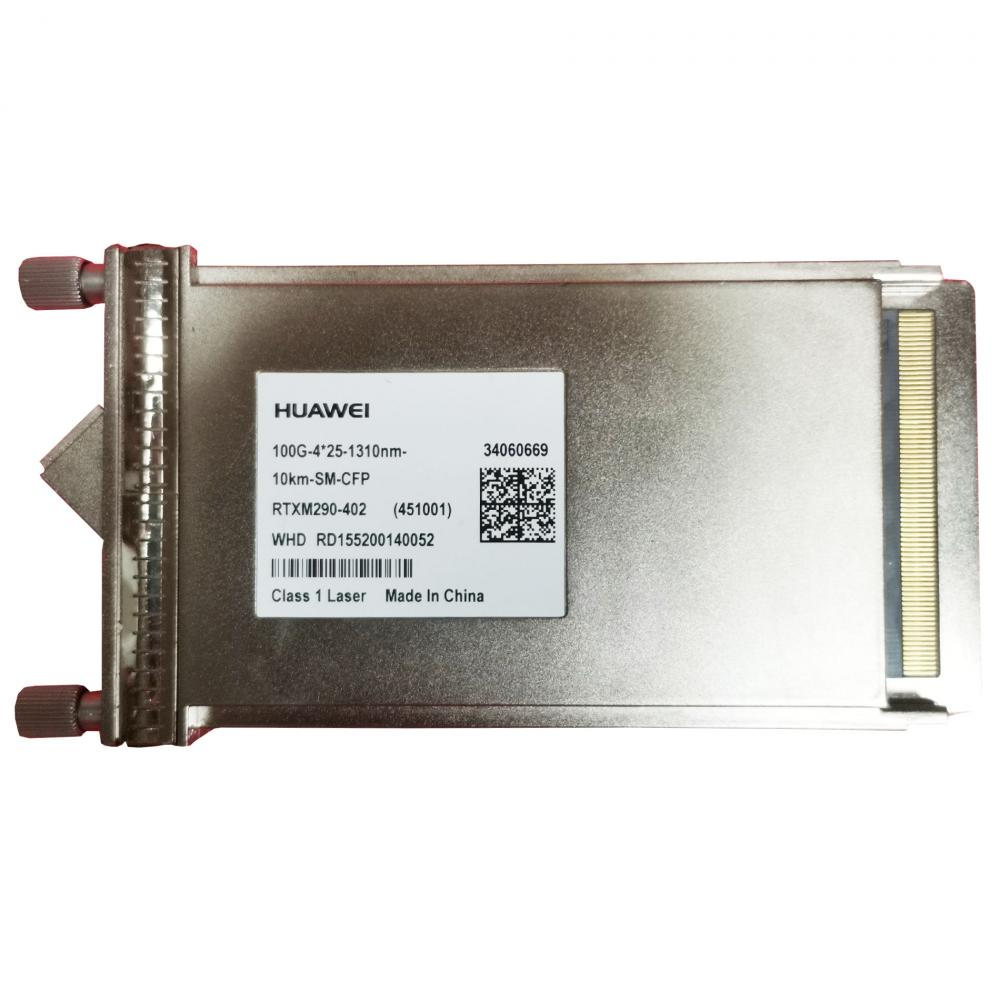

100G LR4 single-mode optical transceiver PN 34060669, large-size CFP package, 4×25G NRZ 1310nm CWDM laser, max transmission distance 10km over G.652 single-mode fiber, matching early generation Huawei OSN DWDM/OTN transmission equipment.
Key Specifications
| Item | Parameter |
|---|---|
| Brand | Huawei |
| PN | 34060669 |
| Internal Model | OSN010N08, OM9550ALX103 |
| Form Factor | CFP Duplex LC Single-mode |
| Bit Rate | 103.125Gbps (4×25G NRZ) |
| Wavelength Band | 1310nm 4-lane CWDM |
| Fiber Type | G.652 Single-mode Fiber (SMF) |
| Max Reach | 10km |
| Interface | Duplex LC/UPC |
| Condition | Factory New Sealed |
| Stock Status | In Stock |
| Delivery Lead Time | Within 2 Business Days |
| Warranty | 3 Years Official Huawei Warranty |
| Unit Price | $800.00 |
Core Features
✅ Standard large CFP form factor, compatible with early Huawei OSN series OTN line cards
✅ Four-channel parallel 1310 CWDM DFB laser, stable 10km metro aggregation transmission
✅ Standard LC duplex optical port, matches universal single-mode LC simplex jumpers
✅ Built-in full DDM digital diagnostic, real-time monitor temperature, transmit/receive optical power and laser bias current
✅ Industrial wide-temperature design, 24/7 stable operation in central office equipment room
Application Scenarios
Operator municipal metro 100G OTN aggregation backbone, medium enterprise park cross-building transmission, legacy CFP-based transmission equipment capacity expansion, city-level financial branch dedicated transmission network reconstruction.
