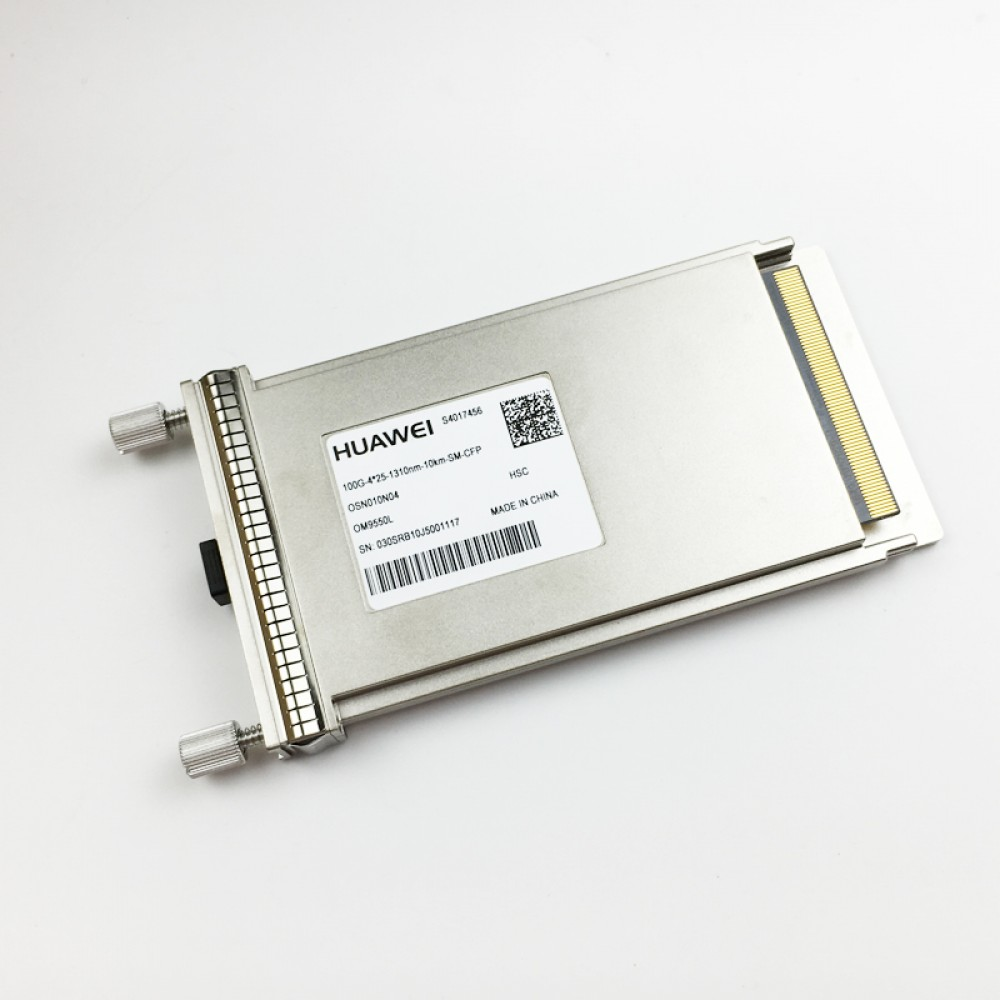

Huawei CFP 100G-LR4 Optical Module Model OSN010N04 PN:S4017456
¥30,180.00
促销价
¥30,180.00
常规价格
跳至产品信息
Key Specifications
Huawei CFP 100G-LR4 Optical Module Model OSN010N04 PN:S4017456
¥30,180.00
促销价
¥30,180.00
常规价格
Product Overview
103.125G CFP single-mode optical transceiver OSN010N04, large CFP package, four CWDM wavelengths 1295/1300/1304/1309nm, standard duplex LC interface, 10km transmission over G.652 single-mode fiber, dedicated for Huawei OSN series OTN transmission equipment.
Key Specifications
| Item | Parameter |
|---|---|
| Brand | Huawei |
| PN | S4017456 |
| Internal Model | OSN010N04 |
| Form Factor | CFP Duplex LC Single-mode |
| Bit Rate | 103.125Gbps (100G OTN standard) |
| Wavelength | 1295nm / 1300nm / 1304nm / 1309nm 4-channel CWDM DFB |
| Tx Optical Power | -4.3dBm ~ +4.5dBm |
| Rx Sensitivity | -8.6dBm |
| Fiber Type | G.652 Single-mode Fiber (SMF) |
| Max Reach | 10km |
| Interface | Duplex LC/UPC |
| Condition | Factory New Sealed |
| Stock Status | In Stock |
| Lead Time | Within 2 Business Days |
| Warranty | 3 Years Official Huawei Warranty |
| Unit Price | $4195.00 |
Core Features
✅ CFP standard large form factor, exclusive matching for Huawei OSN OTN transmission platforms
✅ Four-channel 1310-band CWDM DFB laser, comply with OTN 100G standard 10km transmission
✅ Duplex LC universal optical port, compatible with common single-mode LC simplex jumpers
✅ Industrial full-temperature stable design, 24/7 long-term stable operation for operator central office
✅ Complete DDM digital diagnostic monitoring, real-time read temperature, transmit/receive power, laser bias current
Application Scenarios
Operator metropolitan OTN core equipment interconnection, financial backbone OTN cross-building transmission, government dedicated network 100G trunk reconstruction, industrial park large transmission equipment upgrade, multi-park long-distance OTN convergence links.
