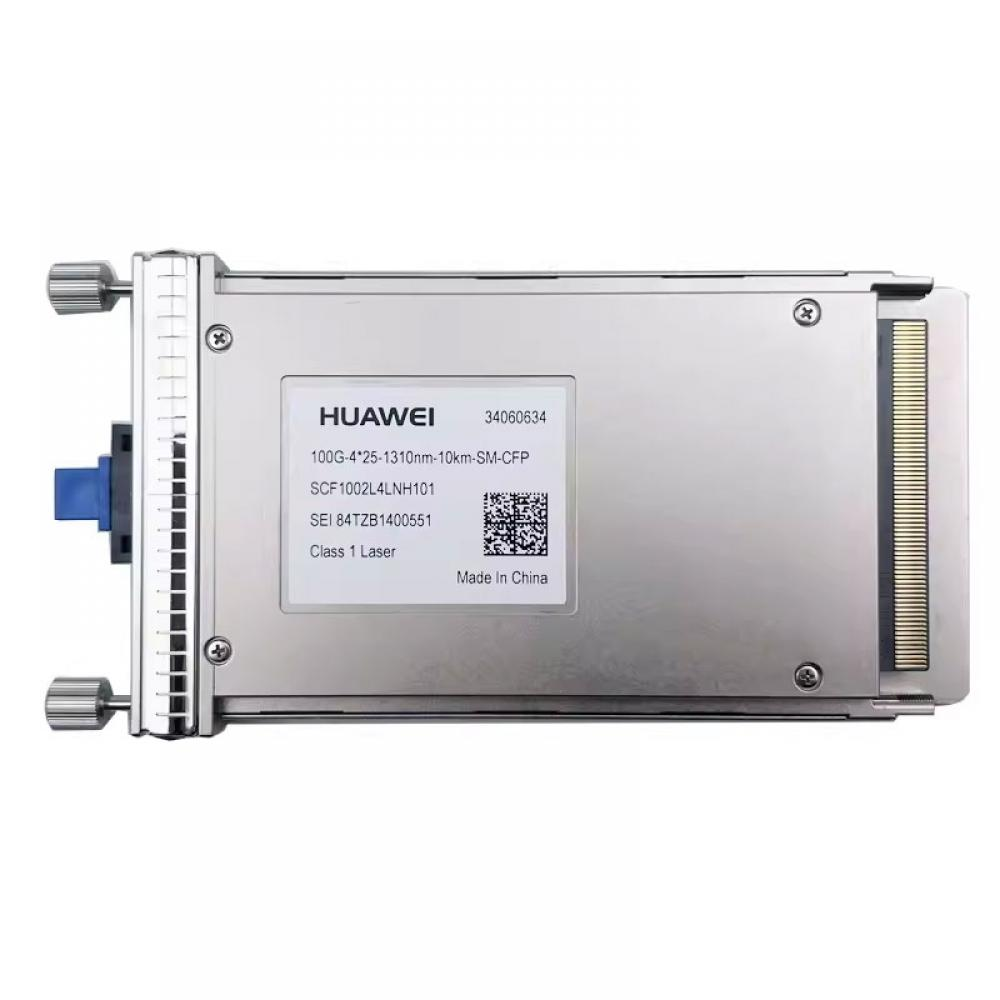

Huawei CFP-100G-LR4 Optical Module OM9550L PN:34060634
¥4,050.00
促销价
¥4,050.00
常规价格
跳至产品信息
Key Specifications
Huawei CFP-100G-LR4 Optical Module OM9550L PN:34060634
¥4,050.00
促销价
¥4,050.00
常规价格
Product Overview
103.125G CFP single-mode optical transceiver OM9550L, PN 34060634, CFP large package, four CWDM wavelengths 1295/1300/1304/1309nm, duplex LC interface, max transmission distance 10km over G.652 single-mode fiber, matching Huawei OSN series OTN transmission equipment.
Key Specifications
| Item | Parameter |
|---|---|
| Brand | Huawei |
| PN | 34060634 |
| Internal Model | OM9550L |
| Form Factor | CFP Duplex LC Single-mode |
| Bit Rate | 103.125Gbps |
| Wavelength | 1295/1300/1304/1309nm 4-channel CWDM DFB |
| Tx Optical Power | -4.3dBm ~ +4.5dBm |
| Rx Sensitivity | -8.6dBm |
| Fiber Type | G.652 Single-mode Fiber (SMF) |
| Max Reach | 10km |
| Interface | Duplex LC/UPC |
| Condition | Factory New Sealed |
| Stock Status | In Stock |
| Delivery Lead Time | Within 2 Business Days |
| Warranty | 3 Years Official Factory Warranty |
| Unit Price | $565.00 |
Core Features
✅ Standard CFP hot-swappable package, dedicated for Huawei OSN OTN transmission platform
✅ IEEE standard 100G LR4 four-channel parallel DFB laser, stable 10km inter-building backbone transmission
✅ Duplex LC optical port, compatible with standard single-mode LC simplex jumpers, low deployment cost
✅ Industrial wide-temperature stable design, 24/7 long-term full-load operation in central office
✅ Complete DDM digital diagnostic monitoring, real-time read temperature, transmit/receive power and laser bias current
Application Scenarios
Enterprise campus cross-building 100G backbone, medium operator metro access OTN equipment, multi-building data center inter-machine room convergence, financial park cross-floor fiber trunk, legacy OTN equipment upgrade reconstruction.
