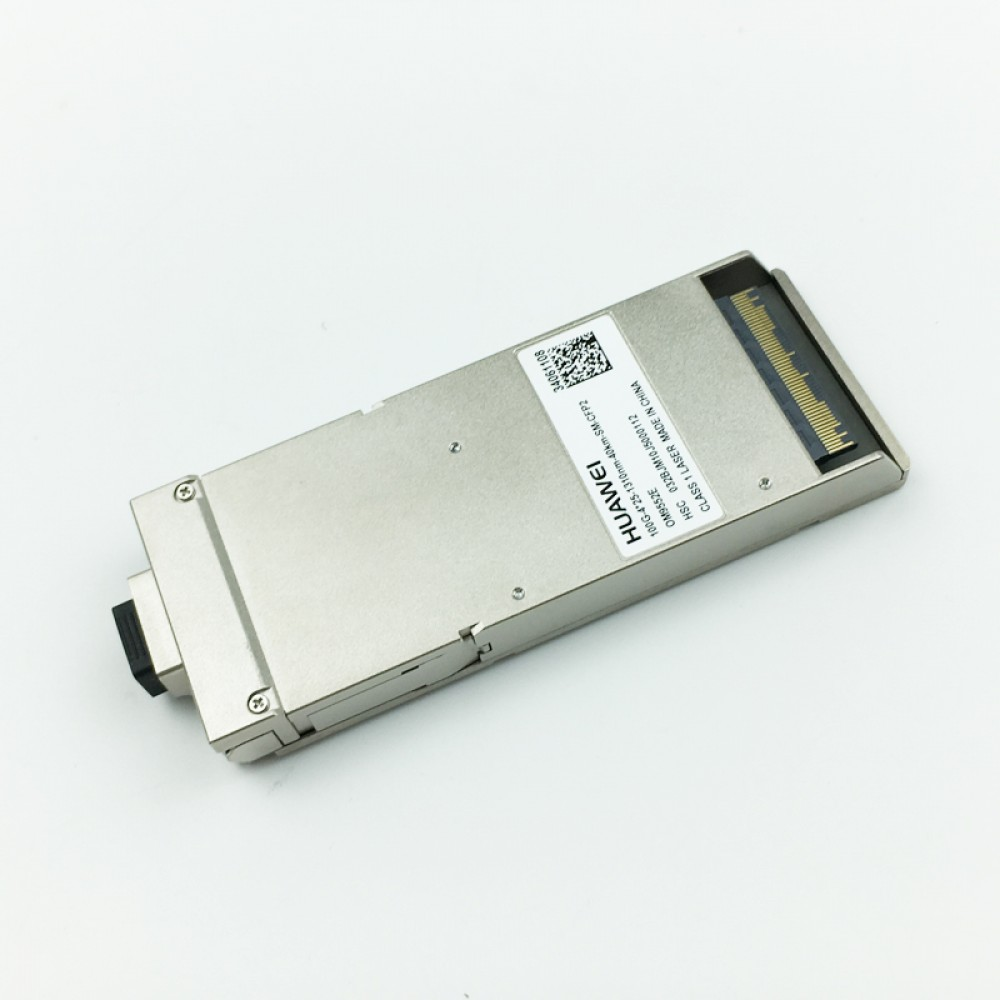

Huawei CFP2-100G-ER4 Optical Module PN:34061108
¥7,180.00
促销价
¥7,180.00
常规价格
跳至产品信息
Key Specifications
Huawei CFP2-100G-ER4 Optical Module PN:34061108
¥7,180.00
促销价
¥7,180.00
常规价格
Product Overview
100GBASE-ER4 CFP2 long-reach single-mode optical transceiver PN 34061108, compact CFP2 form factor, 1310nm 4-channel high-power CWDM DFB laser, straight LC interface, max transmission distance 40km over G.652 single-mode fiber, applied to compact OTN transmission equipment and metro core network trunk lines.
Key Specifications
| Item | Parameter |
|---|---|
| Brand | Huawei |
| PN | 34061108 |
| Standard | 100GBASE-ER4 OMA |
| Form Factor | CFP2 Straight Duplex LC Single-mode |
| Bit Rate | 103.125Gbps |
| Wavelength | 1310nm band 4-channel high-power CWDM DFB |
| Tx Optical Power | -2.9dBm ~ +2.9dBm |
| Rx Sensitivity | -21.4dBm |
| Fiber Type | G.652 Single-mode Fiber (SMF) |
| Max Reach | 40km |
| Interface | Straight Duplex LC/UPC |
| Condition | Factory New Sealed |
| Stock Status | In Stock |
| Delivery Lead Time | Within 2 Business Days |
| Warranty | 3 Years Official Factory Warranty |
| Unit Price | $1000.00 |
Core Features
✅ Compact CFP2 small package, save equipment slot space, compatible with Huawei compact OSN OTN line boards
✅ High-power DFB laser + high-sensitivity APD receiver chip, stable 40km metropolitan cross-area trunk transmission
✅ Straight LC optical port, matched with standard single-mode LC simplex fiber jumpers
✅ Industrial wide-temperature stable design, support 24/7 long-term continuous operation in central office
✅ Complete DDM digital diagnostic monitoring, real-time read module temperature, transmit/receive optical power and laser bias current
Application Scenarios
Operator metropolitan wide-area backbone cross-city interconnection, multi-park data center long-distance cross-area convergence, financial multi-city branch core OTN transmission, medium metro access long trunk network construction, compact OTN equipment upgrade reconstruction.
