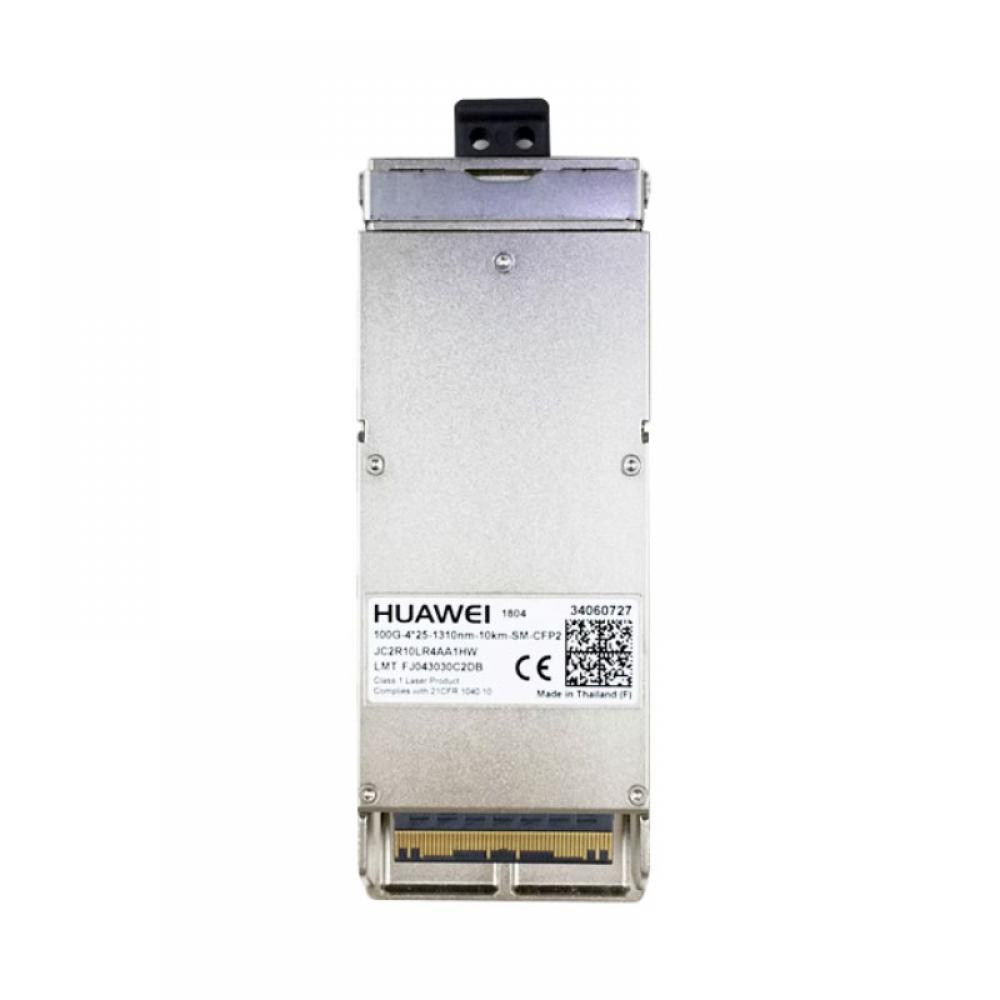

Huawei CFP2 100G LR4 10km Optical Module PN:34060727 Model OSN010N07
¥11,500.00
促销价
¥11,500.00
常规价格
跳至产品信息
Key Specifications
Huawei CFP2 100G LR4 10km Optical Module PN:34060727 Model OSN010N07
¥11,500.00
促销价
¥11,500.00
常规价格
Product Overview
Mid-reach single-mode optical transceiver PN 34060727, CFP2 compact package, 4×25G NRZ 1310nm four-channel CWDM DFB laser, straight duplex LC interface, rate 103.125Gbps, max transmission distance 10km over G.652 single-mode fiber, designed for Huawei OSN series OTN equipment and high-density core switches.
Key Specifications
| Item | Parameter |
|---|---|
| Brand | Huawei |
| PN | 34060727 |
| Internal Model | OSN010N07 |
| Form Factor | CFP2 Duplex Straight LC Single-mode |
| Bit Rate | 103.125Gbps (4×25G NRZ) |
| Wavelength | 1310nm 4-lane CWDM DFB |
| Fiber Type | G.652 Single-mode Fiber (SMF) |
| Max Reach | 10km |
| Optical Port | Straight LC/UPC |
| Condition | Factory New Sealed |
| Stock Status | In Stock |
| Delivery Lead Time | Within 2 Business Days |
| Warranty | 3 Years Official Huawei Warranty |
| Unit Price | $1600.00 |
Core Features
✅ Compact CFP2 small form factor, saves slot space for high-density board deployment
✅ Four-channel parallel 1310 CWDM laser, stable 10km intra-city cross-building aggregation transmission
✅ Straight LC optical port, compatible with standard single-mode LC simplex patch cords
✅ Complete DDM digital diagnostic function, real-time monitor module temperature, transmit/receive optical power and laser bias current
✅ Industrial wide-temperature hardware design, stable 24/7 continuous operation in central office equipment rooms
Application Scenarios
Operator municipal 100G OTN aggregation backbone, medium cloud data center cross-floor interconnection, enterprise industrial park cross-building backbone networking, city-level financial branch transmission, campus medium-distance OTN access layer construction.
