Product Overview

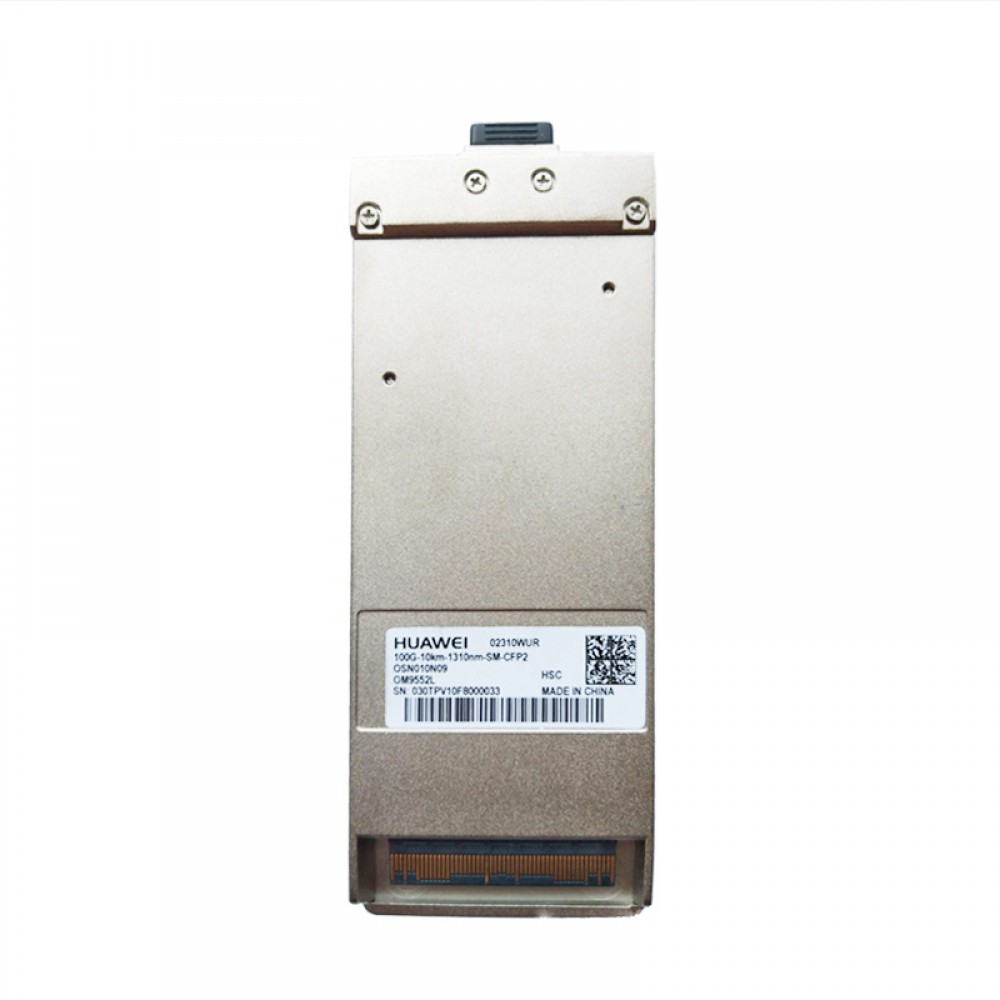

100G LR4 CFP2 compact single-mode optical transceiver OSN010N09, PN 02310WUR, CFP2 small package, 4×25G 1310nm CWDM four-wavelength DFB laser, straight duplex LC interface, max transmission distance 10km over G.652 single-mode fiber, dedicated for Huawei OSN compact OTN line boards.
Key Specifications
| Item | Parameter |
|---|---|
| Brand | Huawei |
| PN | 02310WUR |
| Internal Model | OSN010N09 |
| Form Factor | CFP2 Straight Duplex LC Single-mode |
| Bit Rate | 103.125Gbps (4×25G parallel) |
| Wavelength | 1310nm band 4-channel CWDM DFB |
| Tx Optical Power | -4.3dBm ~ +4.5dBm |
| Rx Sensitivity | -10.6dBm |
| Fiber Type | G.652 Single-mode Fiber (SMF) |
| Max Reach | 10km |
| Interface | Straight Duplex LC/UPC |
| Condition | Factory New Sealed |
| Stock Status | In Stock |
| Delivery Lead Time | Within 2 Business Days |
| Warranty | 3 Years Official Huawei Warranty |
| Unit Price | $600.00 |
Core Features
✅ Compact CFP2 small-size package, save slot space of OSN compact OTN equipment
✅ Four-channel 1310 CWDM DFB laser, stable 10km same-park inter-machine room transmission
✅ Straight LC optical port, match standard single-mode LC simplex jumpers
✅ Industrial full-temperature stable design, 24/7 long-term operation in central office
✅ Complete DDM digital diagnostic monitoring, real-time read temperature, transmit/receive power and laser bias current
Application Scenarios
Enterprise campus same-park inter-building 100G backbone, medium-sized data center short-distance convergence, financial park intra-network fiber trunk, newly-built compact OTN equipment matching, industrial park short single-mode networking reconstruction.
