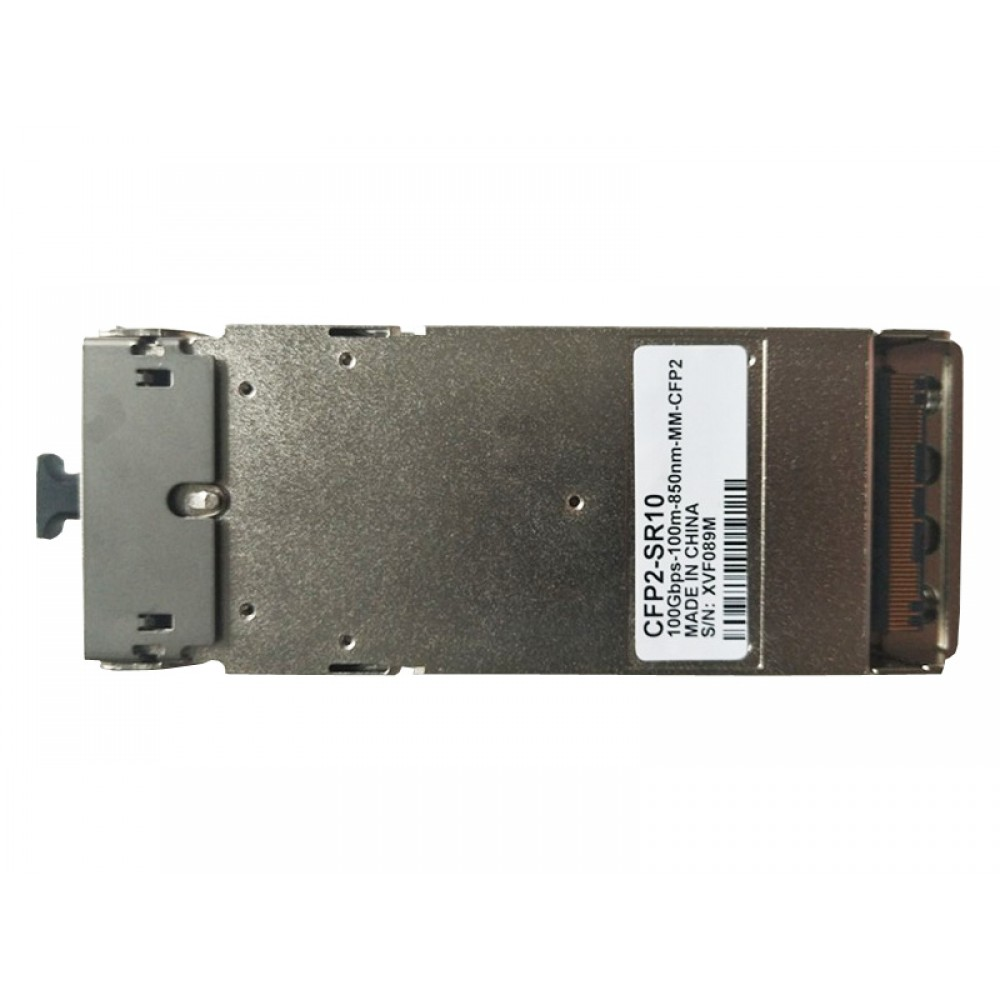

Huawei CFP2-100G-SR10 Multi-mode Optical Module PN:02311AEJ
¥14,380.00
促销价
¥14,380.00
常规价格
跳至产品信息
Key Specifications
Huawei CFP2-100G-SR10 Multi-mode Optical Module PN:02311AEJ
¥14,380.00
促销价
¥14,380.00
常规价格
Product Overview
100GBASE-SR10 parallel multi-mode optical module PN:02311AEJ, CFP2 package, 10×10G 850nm VCSEL parallel, MPO-24 array fiber interface, max transmission distance 100m over OM4 multi-mode fiber. Early large-form-factor 100G multi-mode module for old high-density data center core switches.
Key Specifications
| Item | Parameter |
|---|---|
| Brand | Huawei |
| PN | 02311AEJ |
| Model | CFP2-100G-SR10 |
| Form Factor | CFP2 MPO24 Multi-mode Parallel |
| Bit Rate | 100Gbps (10×10G) |
| Wavelength | 850nm VCSEL 10-channel parallel |
| Fiber Type | OM3 / OM4 Multi-mode Fiber (MMF) |
| Max Reach | 70m (OM3), 100m (OM4) |
| Interface | MPO-24 Female |
| Condition | Factory New Sealed |
| Stock Status | In Stock |
| Delivery Lead Time | Within 2 Business Days |
| Warranty | 3 Years Official Factory Warranty |
| Unit Price | $2000.00 |
Core Features
✅ Standard hot-swappable CFP2 medium-large package, compatible with early generation 100G core data center switches
✅ 10-channel parallel VCSEL array design, 10×10G parallel transmission to reach 100G bandwidth
✅ MPO-24 24-core high-density array fiber port, suitable for ultra-dense cabinet wiring scenarios
✅ Built-in full DDM digital optical monitoring, real-time monitoring of temperature, transmit/receive optical power and laser bias current
✅ CFP2 form factor, transition generation between CFP and QSFP28 optical modules
Application Scenarios
Old large-scale cloud data center high-density cabinet interconnection, early 100G leaf-spine network reconstruction projects, storage area network (SAN) high-speed interconnection, campus core machine room massive short-range 100G access convergence.
