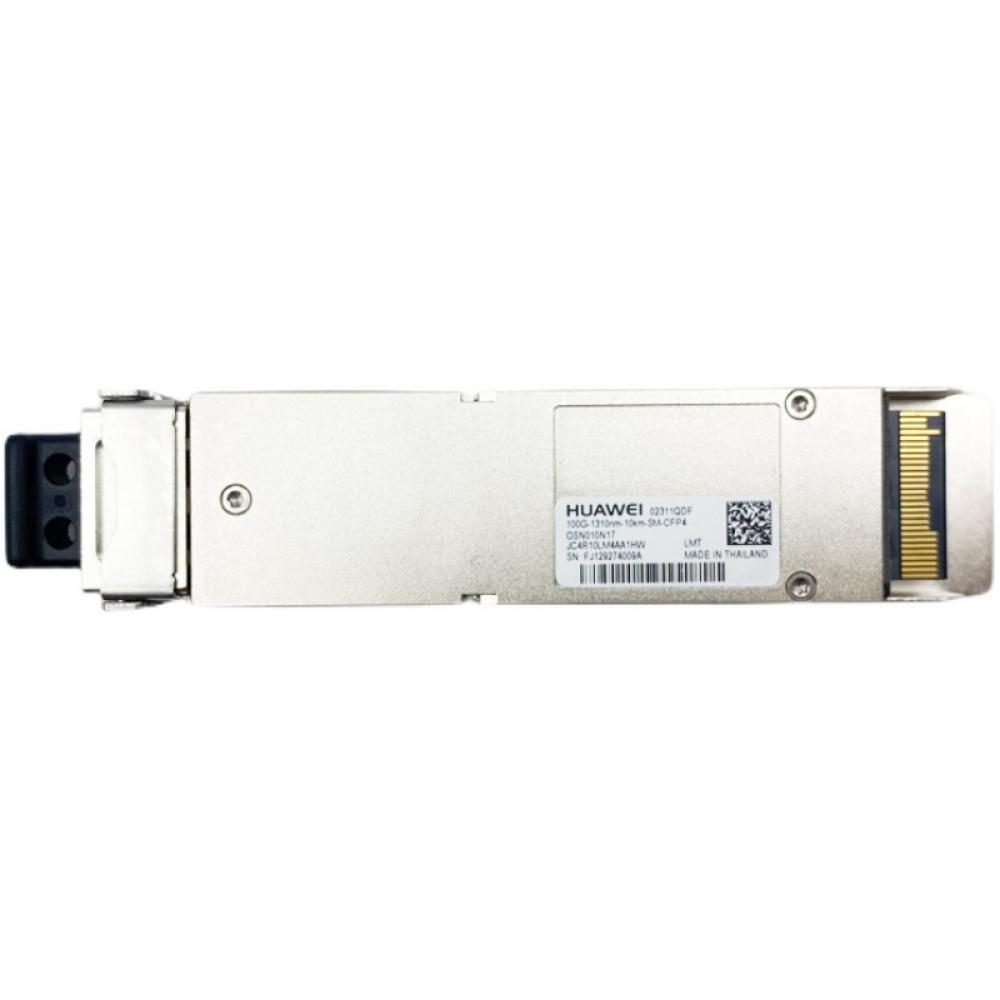

Huawei CFP4 100G LR4 Optical Module PN:02311QDF Model OSN010N17
¥10,780.00
促销价
¥10,780.00
常规价格
跳至产品信息
Key Specifications
Huawei CFP4 100G LR4 Optical Module PN:02311QDF Model OSN010N17
¥10,780.00
促销价
¥10,780.00
常规价格
Product Overview
100GBASE-LR4 mid-reach single-mode optical transceiver PN 02311QDF, compact CFP4 package, 1310nm four-channel CWDM DFB laser, duplex LC interface, max transmission distance 10km over G.652 single-mode fiber, applicable to Huawei OSN compact OTN transmission line cards and high-density data center switches.
Key Specifications
| Item | Parameter |
|---|---|
| Brand | Huawei |
| PN | 02311QDF |
| Standard | 100GBASE-LR4 |
| Form Factor | CFP4 Duplex LC Single-mode |
| Bit Rate | 103.125Gbps (4×25G NRZ) |
| Wavelength | 1310nm band 4-channel CWDM DFB |
| Fiber Type | G.652 Single-mode Fiber (SMF) |
| Max Reach | 10km |
| Interface | Duplex LC/UPC |
| Condition | Factory New Sealed |
| Stock Status | In Stock |
| Delivery Lead Time | Within 2 Business Days |
| Warranty | 3 Years Official Factory Warranty |
| Unit Price | $1500.00 |
Core Features
✅ Ultra-compact CFP4 small form factor, greatly saves equipment slot space for high-density board deployment
✅ Four-channel parallel 1310 CWDM laser, stable 10km intra-city metro short backbone transmission
✅ Standard duplex LC optical port, compatible with universal single-mode LC simplex fiber jumpers
✅ Industrial full-temperature compensation design, 24/7 non-stop stable operation in central office
✅ Complete DDM digital diagnostic monitoring, real-time reading of module temperature, transmit/receive optical power and laser bias current
Application Scenarios
Metropolitan intra-city 100G OTN aggregation backbone, medium cloud data center cross-building short-distance interconnection, enterprise park long-distance convergence networking, financial city-level OTN transmission equipment matching, legacy CFP/CFP2 equipment capacity expansion upgrade.
