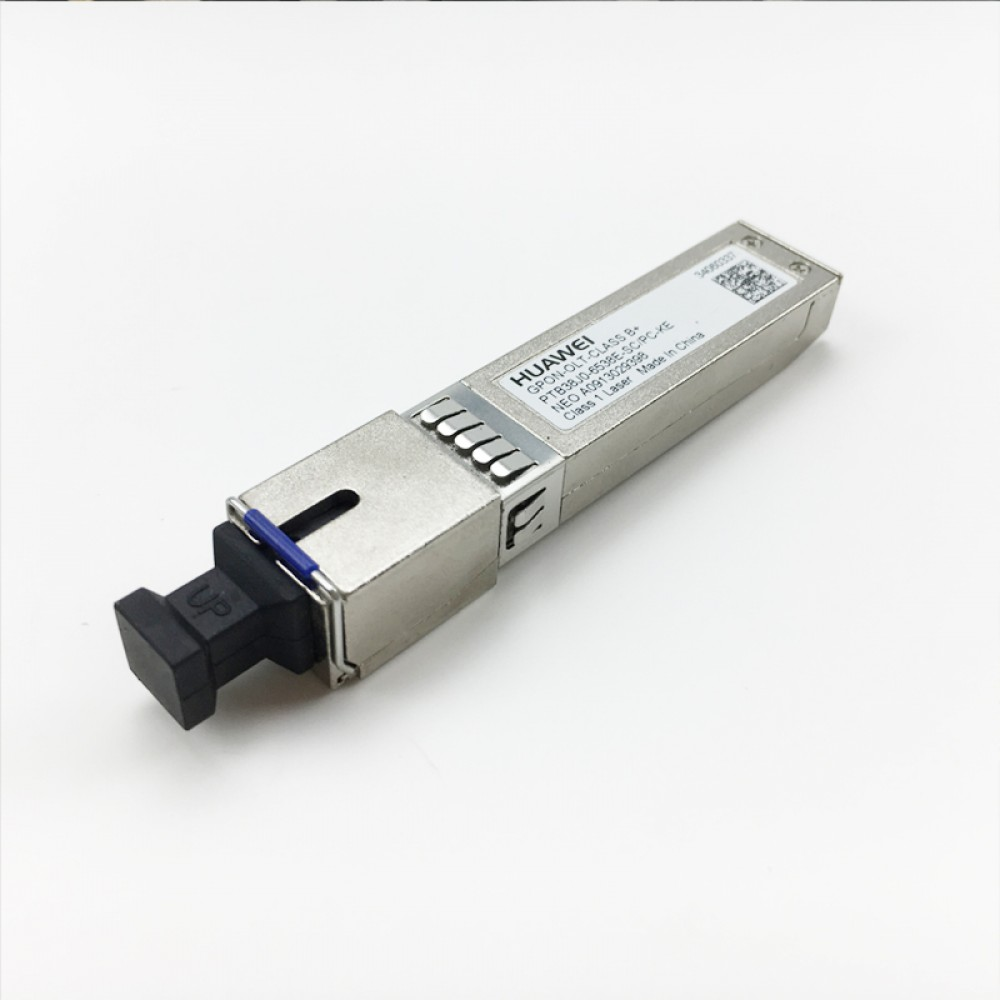

Huawei GPON OLT Class B+ SFP Optical Module PN:34060337 Model PTB380-0553B
¥120.00
促销价
¥120.00
常规价格
跳至产品信息
Key Specifications
Huawei GPON OLT Class B+ SFP Optical Module PN:34060337 Model PTB380-0553B
¥120.00
促销价
¥120.00
常规价格
Product Overview
Cost-effective GPON OLT single-fiber bidirectional PON transceiver PN 34060337, SFP package, Class B+ power specification, matched Huawei MA5680T/MA5608T OLT for short-distance urban FTTH fiber broadband access.
Key Specifications
| Item | Parameter |
|---|---|
| Brand | Huawei |
| PN | 34060337 |
| Internal Model | PTB380-0553B (GPON-OLT-Class B+) |
| Form Factor | SFP SC/UPC Single-mode PON |
| Rate | Down 2488Mbps Tx / Up 1244Mbps Rx |
| Tx Wavelength | 1490nm (OLT downstream transmit) |
| Rx Wavelength | 1310nm (ONU upstream receive) |
| Transmit Optical Power | 1.5 ~ 5dBm |
| Receiver Sensitivity | -28dBm |
| Optical Port | SC/UPC simplex |
| Fiber Type | G.652 Single-mode Fiber (SMF) |
| Standard | ITU-T G.984 GPON Class B+ |
| Condition | Factory New Sealed |
| Stock Status | In Stock |
| Delivery Lead Time | Within 2 Business Days |
| Warranty | 3 Years Official Huawei Warranty |
| Unit Price | $20.00 |
Core Features
✅ Standard universal SFP package, fully compatible with all Huawei GPON OLT mainboards
✅ Low-cost Class B+ optical power, ideal for dense urban short-distance fiber-to-home projects
✅ Single-fiber WDM bidirectional transmission, one fiber realizes downlink sending & uplink receiving
✅ SC/UPC square port, matches mainstream domestic PON SC fiber jumpers
✅ Built-in DDM digital monitoring, real-time display temperature, transmit/receive optical power and laser bias current
✅ Ultra low unit price, perfect for mass bulk deployment of community broadband
Application Scenarios
Dense urban residential FTTH GPON broadband construction, downtown short-distance fiber access projects, small and medium enterprise GPON private line access, campus GPON coverage, OLT equipment mass capacity expansion and replacement.
