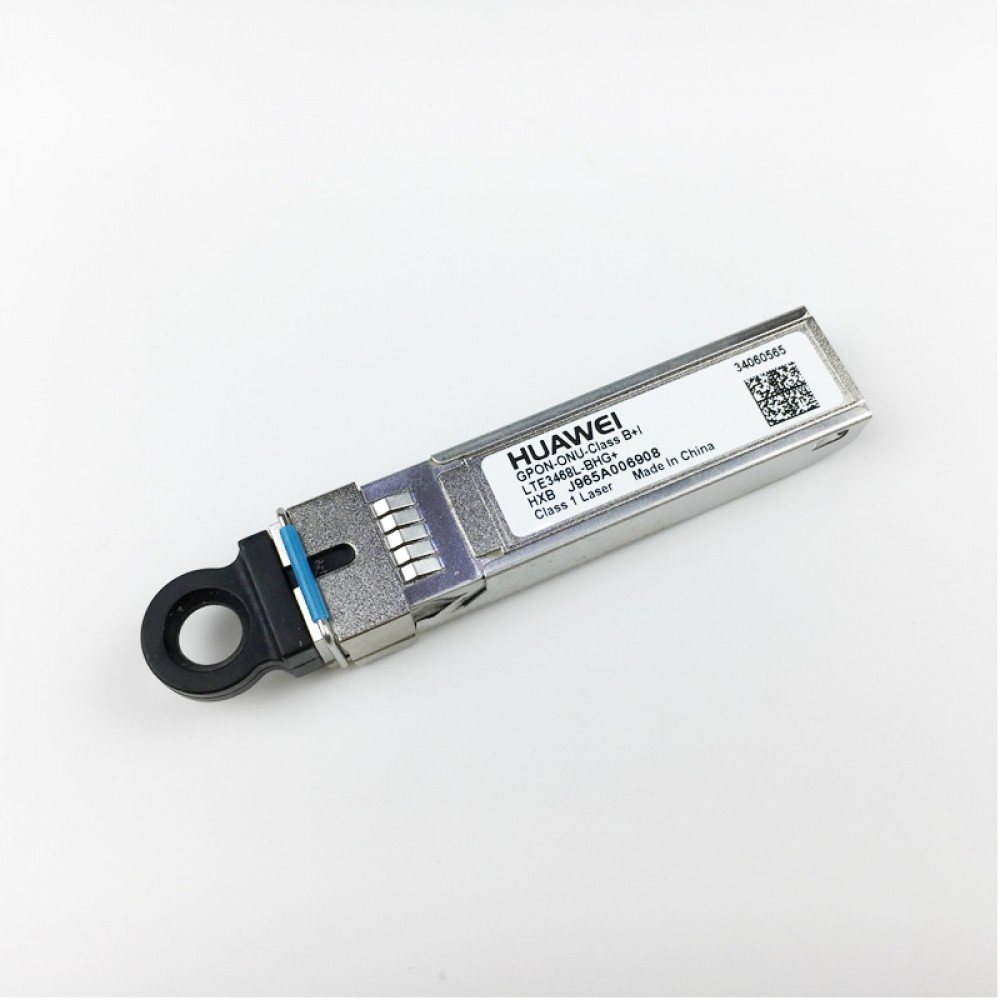

Huawei GPON ONU Class B+ SFP Optical Module PN:34060565 Model LTE3460L-BHG+
¥95.00
促销价
¥95.00
常规价格
跳至产品信息
Key Specifications
Huawei GPON ONU Class B+ SFP Optical Module PN:34060565 Model LTE3460L-BHG+
¥95.00
促销价
¥95.00
常规价格
Product Overview
Bidirectional single-fiber GPON ONU SFP optical module, Class B+ specification, used in GPON household ONT equipment, single fiber bidirectional transmission for FTTH fiber-to-home access.
Key Specifications
| Item | Parameter |
|---|---|
| Brand | Huawei |
| PN | 34060565 |
| Internal Model | LTE3460L-BHG+ (GPON-ONU-Class B+) |
| Form Factor | SFP SC/UPC Single-mode PON |
| Upstream Tx | 1310nm, 1244Mbps |
| Downstream Rx | 1490nm, 2488Mbps |
| Transmit Optical Power | 0.5 ~ 5dBm |
| Receiver Sensitivity | -28dBm |
| Optical Port | SC/UPC simplex |
| Max Transmission Distance | 20km |
| Fiber Type | G.652 Single-mode Fiber |
| Standard | GPON ITU-T G.984 Class B+ |
| Condition | Factory New Sealed |
| Stock Status | In Stock |
| Delivery Lead Time | Within 2 Business Days |
| Warranty | 3 Years Official Huawei Warranty |
| Unit Price | $16.00 |
Core Features
✅ Standard SFP package, compatible with mainstream Huawei GPON ONT/ONU equipment
✅ Single fiber bidirectional WDM, one fiber realizes uplink sending & downlink receiving
✅ Class B+ power budget, supports 20km FTTH residential broadband access
✅ SC/UPC interface, matches domestic common PON SC fiber patch cords
✅ Built-in DDM digital monitoring of temperature, transmit/receive optical power
✅ Ultra low cost, mass applicable for operator community fiber-to-home projects
Application Scenarios
Residential FTTH GPON broadband ONT built-in module, small business GPON private line ONU, campus GPON terminal equipment, second-hand ONT maintenance replacement, bulk fiber access project deployment.
