Product Overview

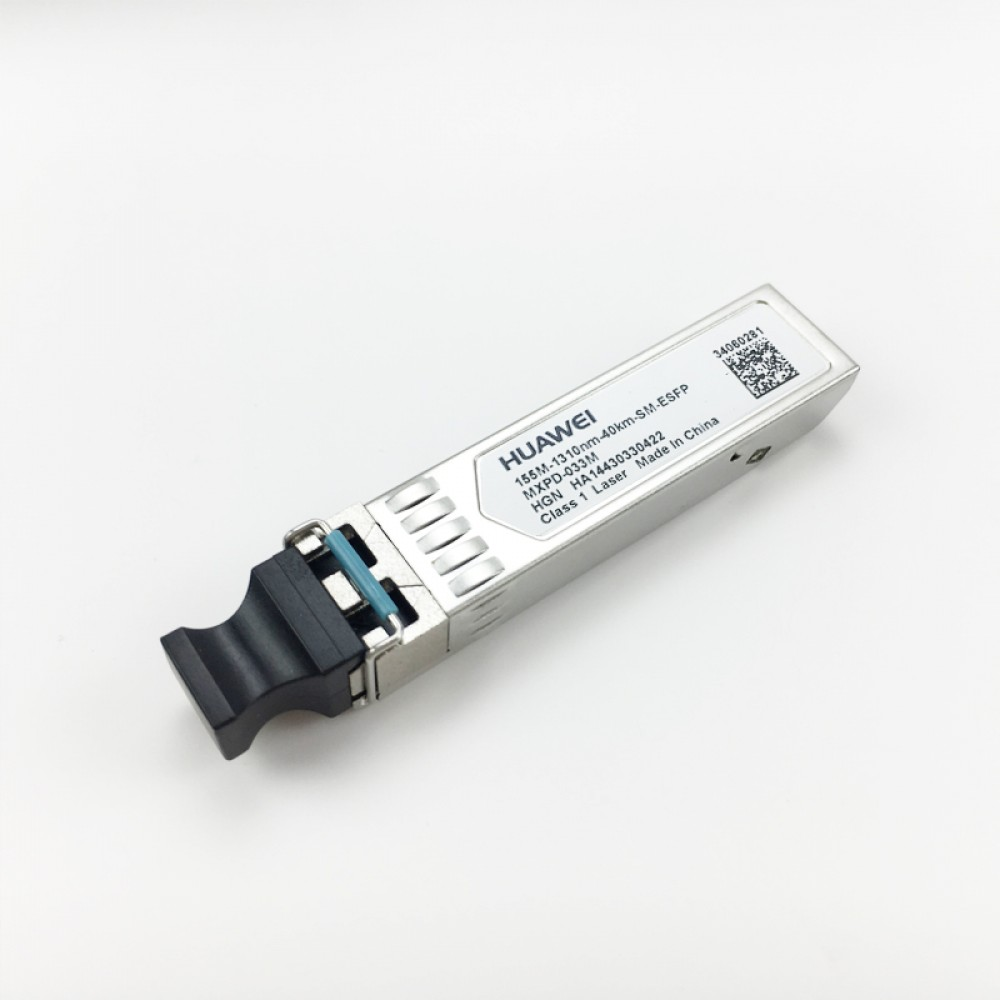

This is a Huawei single-mode eSFP optical transceiver module, designed for STM1/155Mbps Fast Ethernet applications.
Key Specifications
| Item | Parameter |
|---|---|
| Brand | Huawei |
| Part Number | 34060281 |
| Condition | Factory New Sealed |
| Form Factor | eSFP |
| Speed | 155Mbps (STM1) |
| Wavelength | 1310nm |
| Fiber Type | Single-mode (SM) |
| Max Distance | 40km |
| Connector Type | LC |
| Transmit Power | -5 ~ 0 dBm |
| Receiver Sensitivity | -37 dBm |
| Warranty | 3 Years |
| Unit Price | $32.00 |
Core Features
✅ STM1/155Mbps Compatibility: Designed for 155Mbps STM-1 and Fast Ethernet applications.
✅ Single-mode Fiber: Works with single-mode fiber (SMF) for long-reach connections.
✅ 40km Reach: Supports a transmission distance of up to 40 kilometers.
✅ LC Connector: Uses standard LC connectors for easy installation.
✅ Huawei Compatibility: Tested and guaranteed to work with Huawei enterprise switches and routers.
Application Scenarios
- Connecting switches, routers, and SDH/SONET equipment in a local area network (LAN)
- Long-distance fiber links between buildings or campuses
- Telecom and enterprise network backhaul applications
