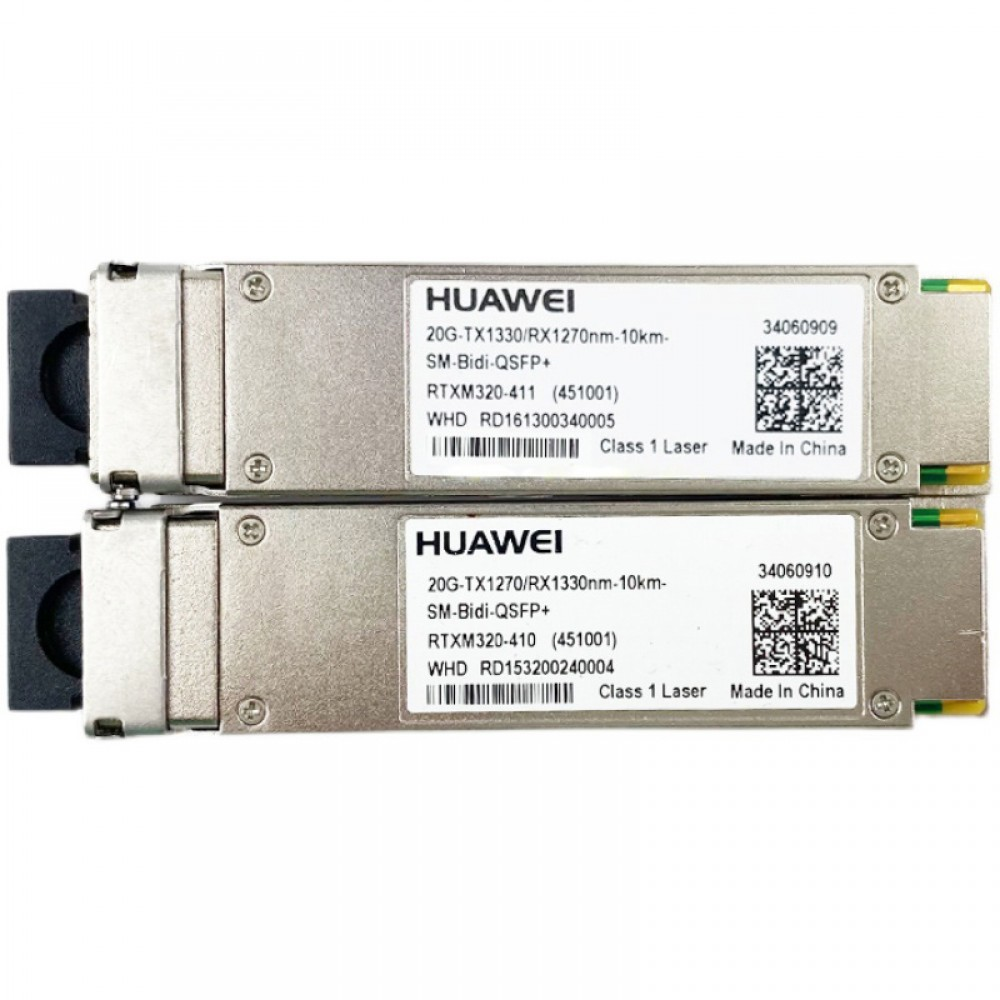

Huawei QSFP+ 20G BiDi Single-mode 10km Optical Transceiver Pair PN:34060909 & 34060910

Single-fiber bidirectional QSFP+ optical module matching set, rate range 9.95~20.35Gbps, single LC port completes uplink & downlink transmission over one G.652 single-mode fiber, max transmission distance 10km. Must be deployed as a matched pair, cannot operate individually:

✅ Single-fiber bidirectional design, only one single-mode fiber core needed for two-way 20G data transmission, cutting fiber deployment cost in half ✅ Compact QSFP+ standard package, plug-and-play compatible with enterprise switches, core routers, storage equipment with QSFP+ slots ✅ High launch optical power + ultra-high receiving sensitivity, stable signal transmission for 10km short-medium fiber links ✅ Built-in full DDM digital real-time monitoring for temperature, transmit/receive optical power and bias current ✅ Single LC optical interface, matched with G.652 OS2 single-mode fiber patch cords ✅ Strict wavelength pairing requirement; two modules with opposite transmit/receive wavelengths must be used as a set to realize communication

Data center intra-building interconnection with limited fiber cores, enterprise campus short-distance backbone fiber resource shortage renovation, 20G single-fiber bidirectional upgrade of QSFP+ equipment, short-distance fiber access projects with insufficient fiber resources.
