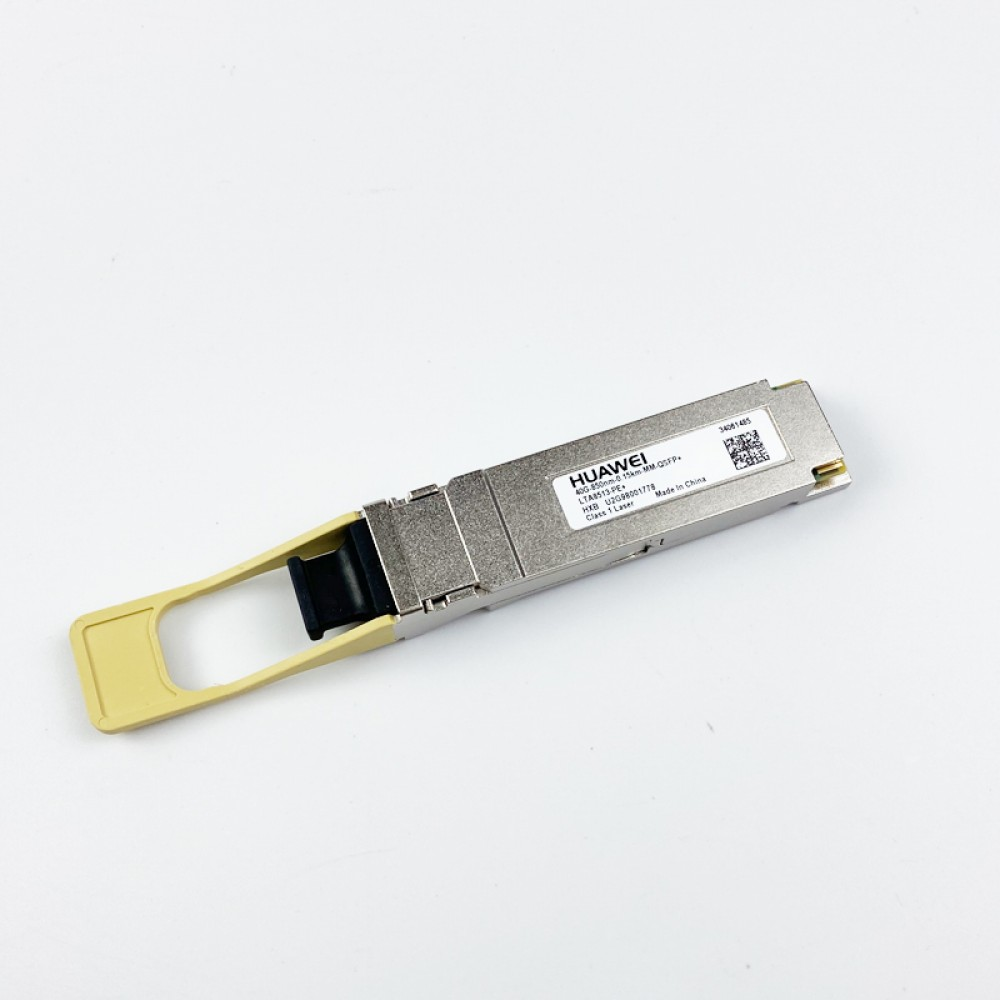

Huawei QSFP+ 40G eSR4 MPO Multimode Optical Module PN:34061485
¥736.00
促销价
¥736.00
常规价格
跳至产品信息
Key Specifications
Huawei QSFP+ 40G eSR4 MPO Multimode Optical Module PN:34061485
¥736.00
促销价
¥736.00
常规价格
Product Overview
Extended short-reach parallel multimode QSFP+ optical module PN 34061485, 41.25Gbps total bandwidth, 850nm parallel VCSEL, MPO 12-core connector, max transmission distance 150m over OM4 multimode fiber, standard 40GBase-eSR4 for cross-row medium-distance interconnection in medium & large data centers.
Key Specifications
| Item | Parameter |
|---|---|
| Brand | Huawei |
| PN | 34061485 |
| Form Factor | QSFP+ MPO 12-core Parallel MMF |
| Bit Rate | 41.25Gbps (4×10.3125G parallel lanes) |
| Wavelength | 850nm VCSEL parallel 4-channel |
| Tx Optical Power | -7.6 ~ +0.5dBm |
| Rx Sensitivity | ≤ -9.5dBm |
| Max Reach | 150m OM4 Multimode Fiber |
| Fiber Type | OM3 / OM4 MMF |
| Interface | MPO/MTP Female |
| Pull Tab | Yellow |
| Origin | Made in China |
| Condition | Factory New Sealed |
| Stock Status | In Stock |
| Delivery Lead Time | Within 2 Business Days |
| Warranty | 3 Years Official Factory Warranty |
| Unit Price | $105.00 |
Core Features
✅ Standard hot-swappable QSFP+ package, compatible with all mainstream 40G leaf/spine switches
✅ eSR4 parallel optical design, supports 150m long-distance transmission on OM4 fiber, suitable for large data center cross-row wiring
✅ MPO multi-core connector, greatly reduces the number of jumpers for dense parallel links and optimizes cabinet cable management
✅ Built-in complete DDM digital optical monitoring, real-time reading of module temperature, transmit/receive optical power and laser bias current
✅ Low-cost mass deployment model, cost-effective for new large-scale IDC construction with MPO pre-terminated trunk cables
Application Scenarios
Medium & large data center cross-row server-switch interconnection, cloud computer room long horizontal multimode trunk wiring, enterprise high-density storage network medium-distance transmission, new IDC projects adopting MPO integrated cabling system.
